ER2450T
EVE ER2450T Li-SOCl2 battery 3.6V 500mAh Smart Meter/GPS Tracking & Location/Parking Management/Smart Bin
-
3.6 Nominal Voltage（V）
-
550 Nominal Capacity（mAh)
-
5 Maximum Continuous Current (mA)
-
20 Maximum Pulse Current (mA)
-
9 Weight (g)
-
-55~+125℃ Operating Temperature (℃)
Application Scenario
Smart Meter,GPS Tracking & Locatio,Parking Management,Smart Bin
Product Certification
Origin of Shipment：
Chinese Factory Direct -
Eco-friendly
-
Full life cycle
-
Wide temperature
-
Long lifespan
-
High pulse
-
Low self-discharge rate
-
High security
-
High capacity
-
Product Introduction
-
Product Selection
-
Specifications
-
Safety Precautions
Product Introduction
-
World-leading, Sales and export volume ranks No. 1 for 8yrsNational Manufacturing Champion Products
-
ER2450T 3.6V 550mAhhigh-capacity ,long lifespan

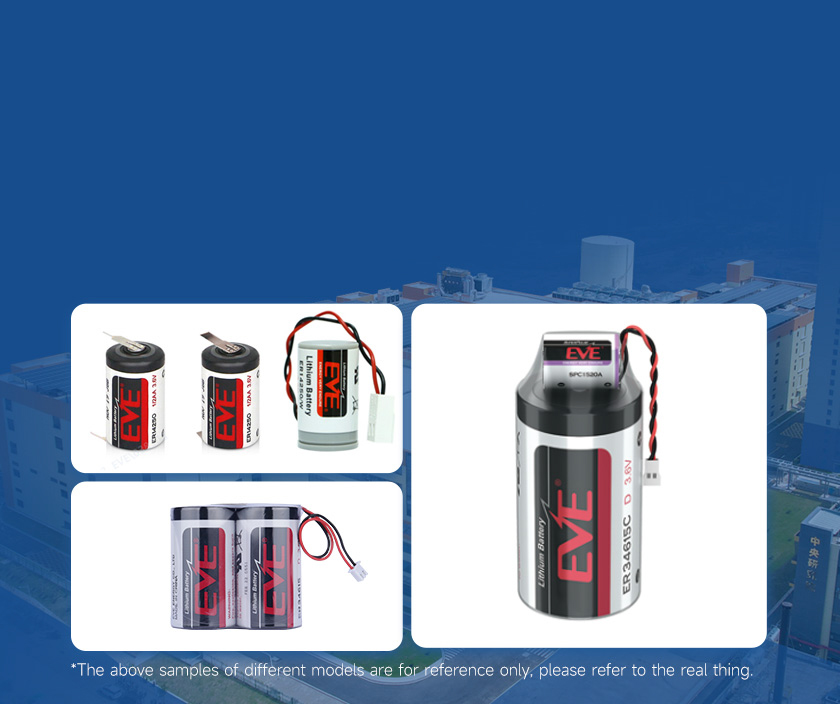

Custom processing and sample design available upon requestCustomize battery cells with series/parallel configurations, solder tabs, or plug leads
-
Provide integrated solutions for smart meters such as water meters,electricity meters,gas meters,heat meters,sensors,etc20 years + long life,-55℃~85℃ ultra-wide temperature range,low self-discharge rate
-

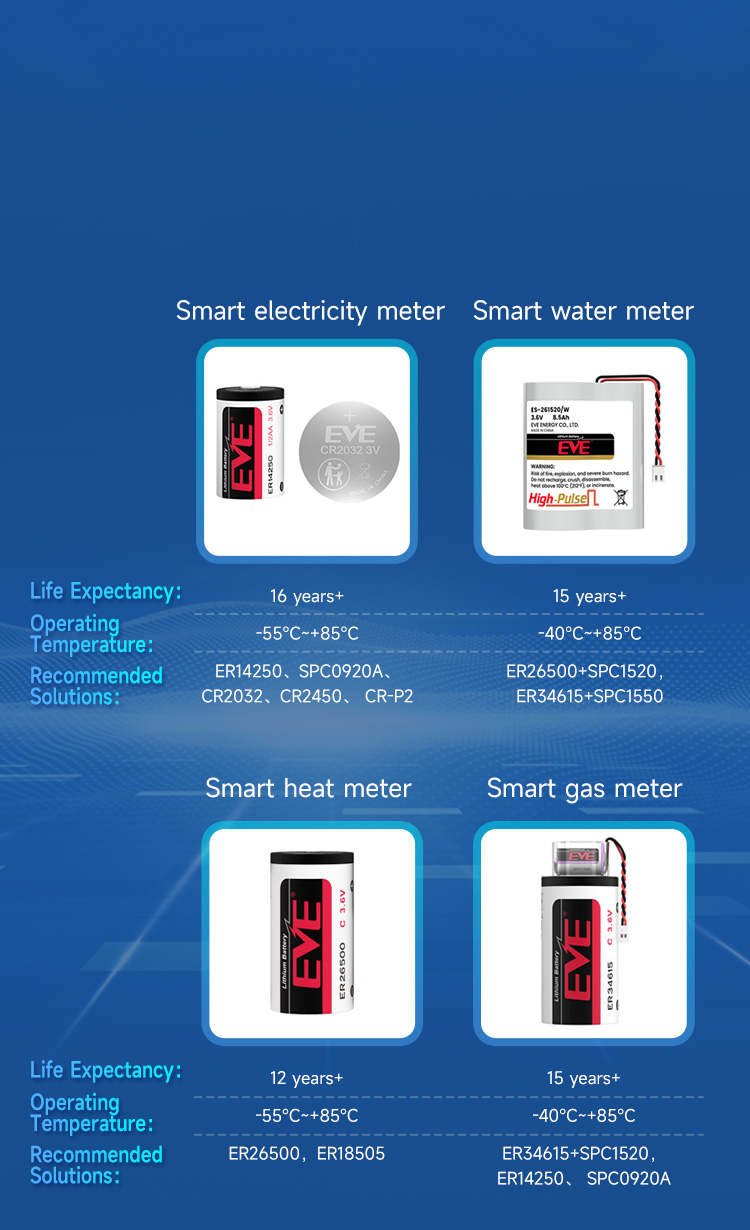

Recommended SolutionsSmart Electricity Meter,Smart Water Meter,Smart Heat Meter,Smart Gas Meter,Sensor
-

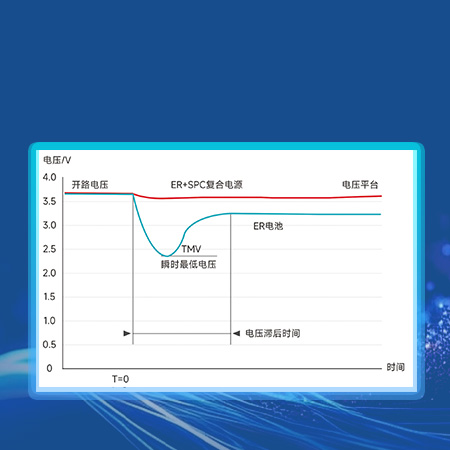

Advantage of ER+SPC solutions: no voltage hysteresis
-
Long lifespanExtremely long reliability life expectancy
High Stability VoltageNominal voltage of 3.6V with excellent operational voltage stability
Low self-discharge rateAt 20°C ambient temperature, the annual self-discharge rate is ≤1%
Product Selection
Specifications
| Nominal Voltage | 3.6V |
| Nominal Capacity | 550mAh |
| Application | Smart electricity meter, smart water meter, smart heat meter, smart gas meter |
| Model | ER2450T |
| Operating Temperature | -55℃~+125℃ |
| Siz | D: 24.2mm Max. H: 5.8mm Max |
| Weight | 8.8g |
| Volume | 2.49cm3 |
Safety Instructions
Have questions?？Get help from a EVE expert
