SPC1530A
EVE SPC1530A Li-ion Battery Capacitor 3.6V/75mAh IoT Electronic Smart Meter
-
3.6 Nominal voltage（V）
-
75 Nominal capacity（mAh）
-
3000 Maximum pulse current
-
≤100 Internal Resistance (mΩ)
-
-40~+85 Operating temperature（℃）
-
15.1*29.0 Sizes（mm）
Application Scenario
Smart Metering, Tracking and Positioning, Smart Healthcare, Smart Security, Automotive Electronics
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
Long Service Life
-
High Security
-
Low Self-discharge Rate
-
High Energy Density
-
Ultra Wide Temperature Applications
-
Standard Size
-
Safety
-
Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
World-leading, Sales and export volume ranks No. 1 for 8yrsEVE has supplied over 3.5 billion lithium primary batteries to the world
-

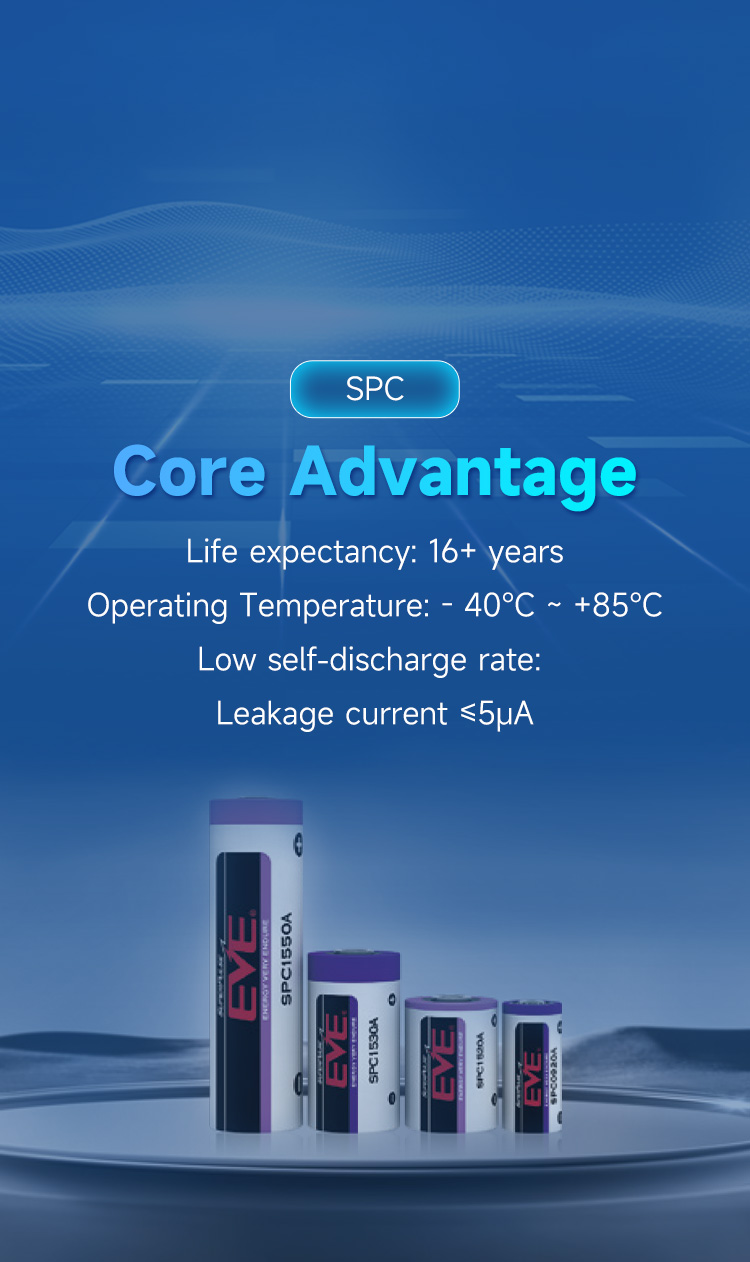

SPC1530A 3.6V 75mAhhigh pulse,long lifespan
Market applicationSmart Metering, Smart Cities, Automotive Electronics, Location Tracking
-
Provide integrated solutions for smart meters such as water meters, electricity meters, gas meters, heat meters, sensors, etc16 years + long life, -40℃~85℃ ultra-wide temperature range, low self-discharge rate
-

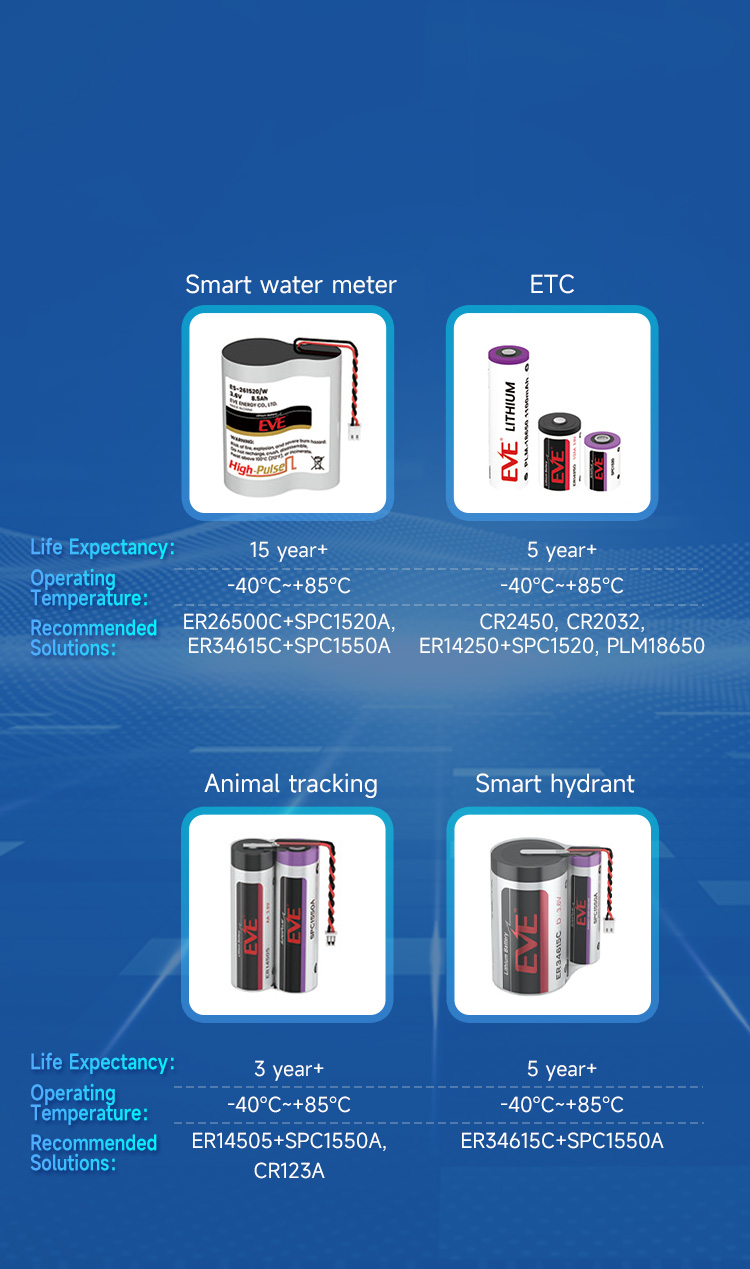

Application CaseSmart water meters, ETC, animal tracking, smart hydrants
-
Long lifespanExtremely long reliability life expectancy
High Stability VoltageGood operating voltage smoothness at nominal voltage
High pulseHigh Pulse Discharge

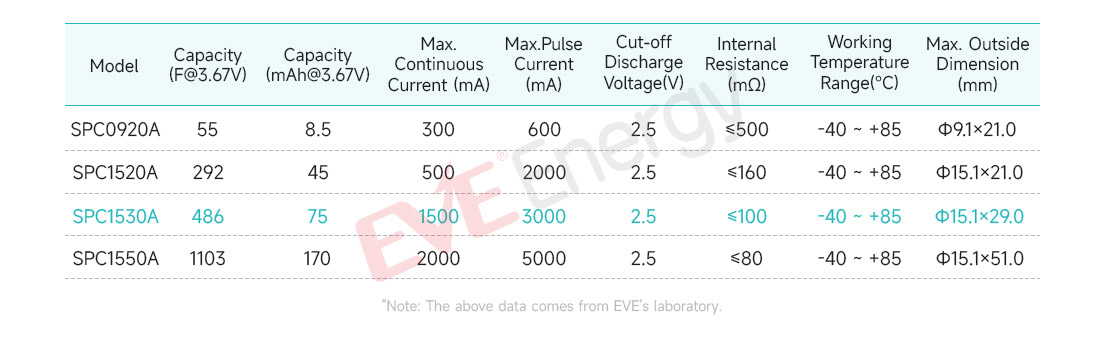

Specifications
| Model | SPC1530A |
| Nominal voltage | 3.6V |
| Nominal capacity | 75mAh |
| Scope of use | Smart Metering, Home Metering, Automotive Electronics, ETC, IoT, Alarm/Security Devices |
| Type | battery capacitor |
| internal resistance | ≤100mΩ |
| Maximum charging current | 50mA |
| operating temperature | -40℃~+85℃ |
Safety Instructions
