21700 40PHOT
EVE 21700 40P cylindrical NCM cell 3.6V 4000mAh full-rate battery power tools/gardening tools
-
4000 Nominal Capacity(mAh)
-
3.60 Nominal voltage(V)
-
300 Nominal Cycles(times)
-
205 Energy density (Wh/kg)
-
70Max Weight (g)
-
≤12 AC internal resistance (mΩ)
Application Scenario
Vacuum cleaners,Drills,Lawn mowers,Power tools,Garden tools
Product Certification
Origin of Shipment：
Chinese Factory Direct、
EU Warehouse -
Low self-discharge rate
-
High security
-
Low internal resistance
-
High capacity
-
High discharge rate
-
Long cycle life
-
High-engery density
-
Fast charging
-
Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
First in domestic cylindrical battery shipmentsServe global top10 power tools brands and garden tools, E2W, vacuum cleaners and portable energy storage brands
-
21700/40P 4Ah 3.6VHigh Capacity,High Discharge rate
High Discharge rateSupports up to 50A continuous discharge
-
Fast chargingSupports up to 6A charging
Wide temperatureOperable from -20°C to 60°C
High-energy densityUp to 205 Wh/kg
-
Comprehensive cylindrical battery solutionsIndustry Applications: Power Tool,Garden Tool,Vacuum Cleaner,Sweeping Robot;Models:21700 40P,18650 25P,20P,15P
-

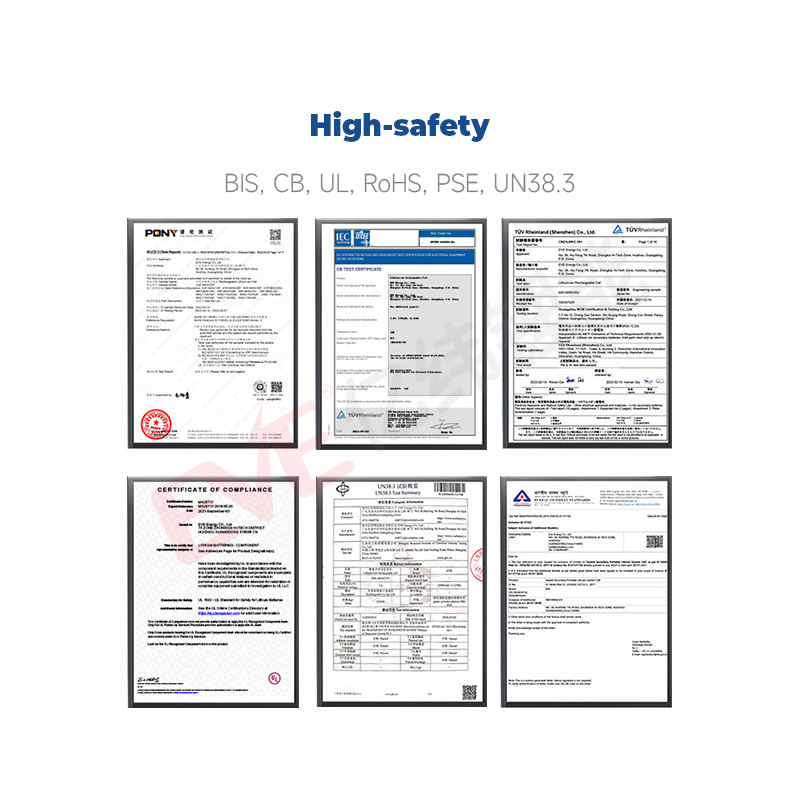

Fully certifiedCE,BIS,CB,UL,RoHS,PSE,UN38.3
Delivery From German WarehouseETD:1-3 WORKING DAYS丨ETA:5-7 WORKING DAYS
-
Packaging/Shipping SafetyCarton packing:130 pcs/carton丨Wooden case packing:90pcs carton(11700pcs cells inside)
-

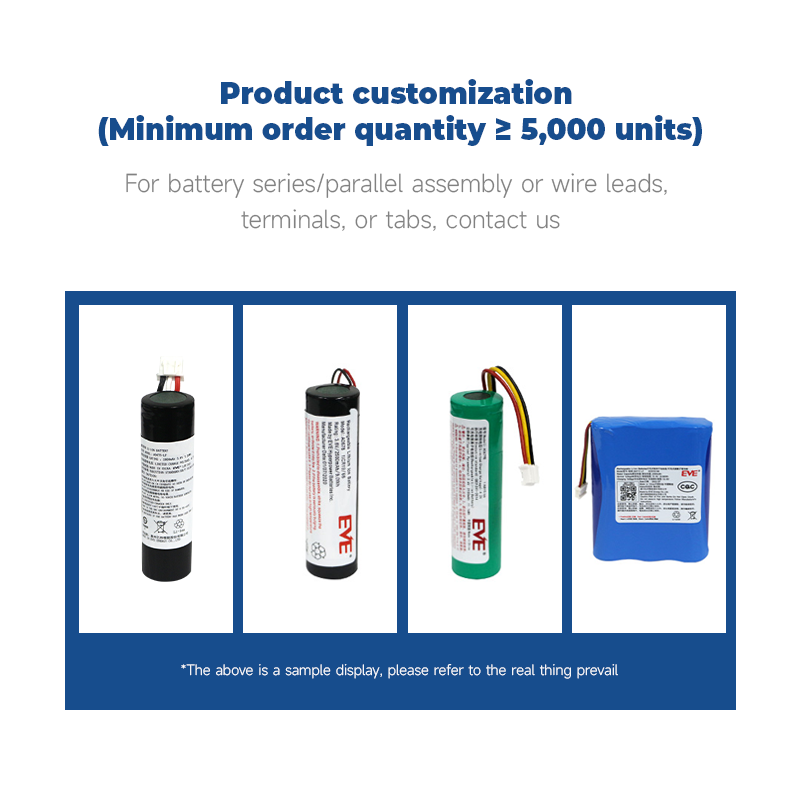

Product customization (Minimum order quantity ≥ 5,000 units)For battery series/parallel assembly or wire leads,terminals,or tabs,contact us
Packaging Display21700 Battery Cells-130 PCS Pack Display

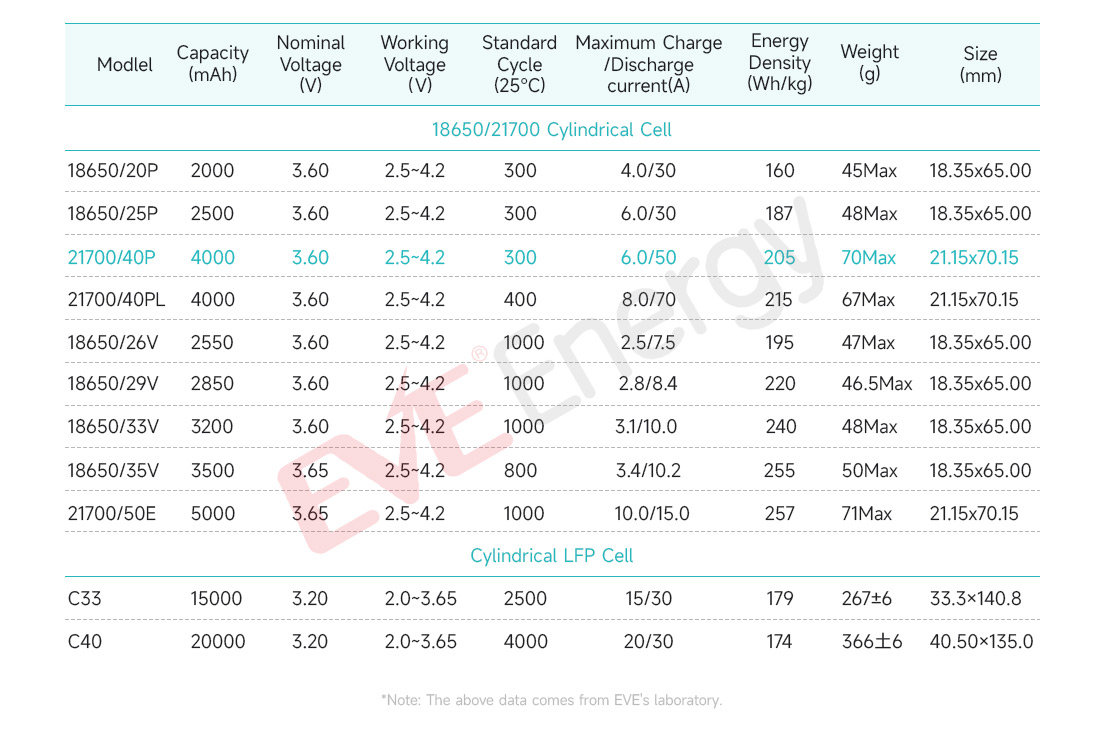

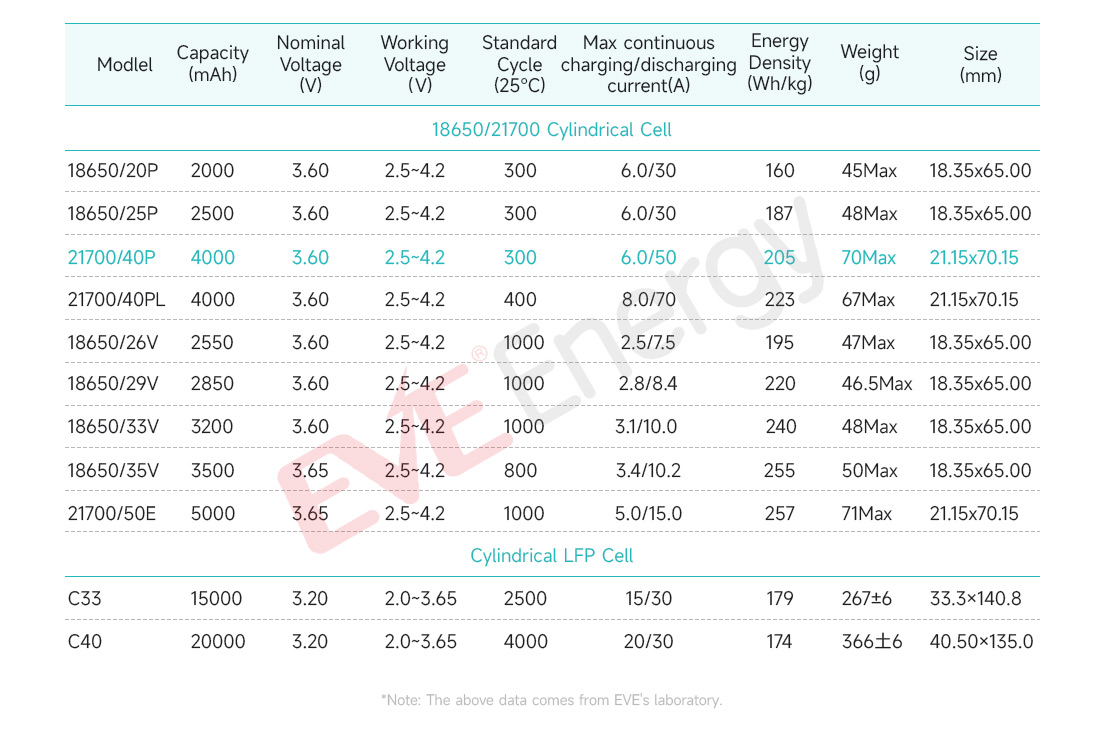

Specifications
| Model | 21700/40P |
| Nominal Voltage | 3.6V |
| Nominal capacity | 4000mAh |
| Application scenario | Power tools, garden tools, electric two-wheelers, vacuum cleaners, sweeping robots |
| Standard charge | 2.0A constant current charge to 4.20±0.05V,constant voltage charge cutoff current 100mA |
| Fast charging | 6A constant current charge to 4.20±0.05V,constant voltage charge cutoff current 100mA |
| Standard discharge | 6A constant current charge to 4.20±0.05V,constant voltage charge cutoff current 100mA |
| Charge/discharge voltage range | 4.20V~2.50V |
| Battery weight | 70g |
| Battery Size | Height: 70.15±0.15mm, Diameter: 21.15±0.10mm |
| AC internal resistance | ≤12mΩ |
| Maximum continuous charging/discharging current | 6.0/50A |
Safety Instructions
Have questions?？Get help from a EVE expert
