M41

EVE Lithium M41 Prismatic ternary battery 3.66V 19.5Ah power battery cell two-wheeler tricycle

  • 3.66 Nominal voltage(V)
  • 19.5 Nominal capacity(Ah)
  • 2000 Nominal Cycles(times)
  • 547±15 Weight(g)
  • 130 Energy densityr(Wh/kg)
  • 98.8*148.7*17.7 Size(mm)

Application Scenario

Excavators,Forklifts,Buses,Heavy trucks,Passenger cars

Product Certification

  • b2_rz05.png

Origin of Shipment:

b2_guoqi02.jpg Chinese Factory Direct
  • yzicon03-623.svg

    High Energy Density

  • yzicon02-481.svg

    High Discharge Rate

  • yzicon01-791.svg

    Fast charging

  • yzicon05-412.svg

    Long Service Life

  • yzicon04-976.svg

    High Security

  • yzicon08-257.svg

    Multi Application Scenario

  • yzicon07-181.svg

    Automated Production

  • yzicon06-286.svg

    Fully Certified

  • Product Selection

  • Product Introduction

  • Specifications

  • Safety Precautions

Product Selection


Product Introduction

  • M41-1--1401-541 历程.jpg 储能-动力.png
    Top 2 in China Commercial Vehicle Battery Market Share in 2024

    Serving many international first-class automobile enterprises

  • M41.jpg M41.jpg
    M41 19.5Ah 3.66V

    High Reliability Long Cycle Life

    M41-3--840-537 V系列应用.jpg M41-3--840-537 V系列应用.jpg
    Cycling up to 2000 times;Capacity Energy Retention Rate≥70%

    At(25°C 0.5C/1C)

  • 4--1401-541 产品认证.jpg 产品认证.jpg
    Product Certification

    Meet UL1642,UN38.3,ATEX,CE,ISO and other certifications

  • M41-01.jpg M41.jpg

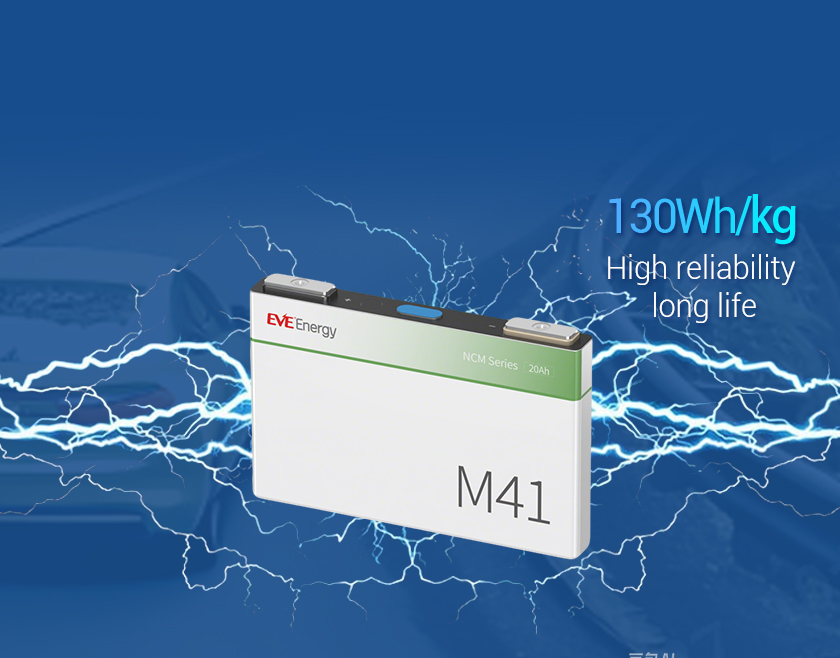

    High energy density

    NCM material system with high energy density and high power storage capacity

    6--537-537 万物互联.jpg 6--537-537 万物互联.jpg

  • 7--450-450 倍率.jpg 7--450-450 倍率.jpg
    Excellent multiplier discharge performance

    Continuous discharge multiplier(25℃≥60S)

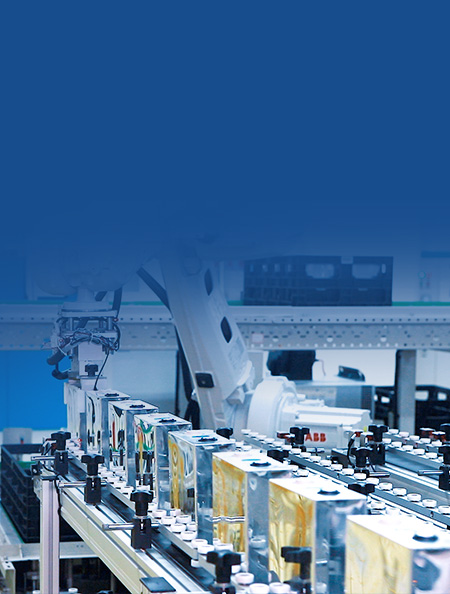

    8--450-450 产线.jpg 8--450-450 产线.jpg
    High safety performance

    Highly reliable explosion-proof valve,anti-short-circuit structural design and high-security isolation membrane coating process,high safety performance

    9--450-450 车间.jpg 9--450-450 车间.jpg
    Intelligent manufacturing

    Continuously promote informationization and digitalization to build a"lighthouse factory"

  • 10--1401-541 解决方案.jpg E42-10--1401-541 解决方案 拷贝.jpg

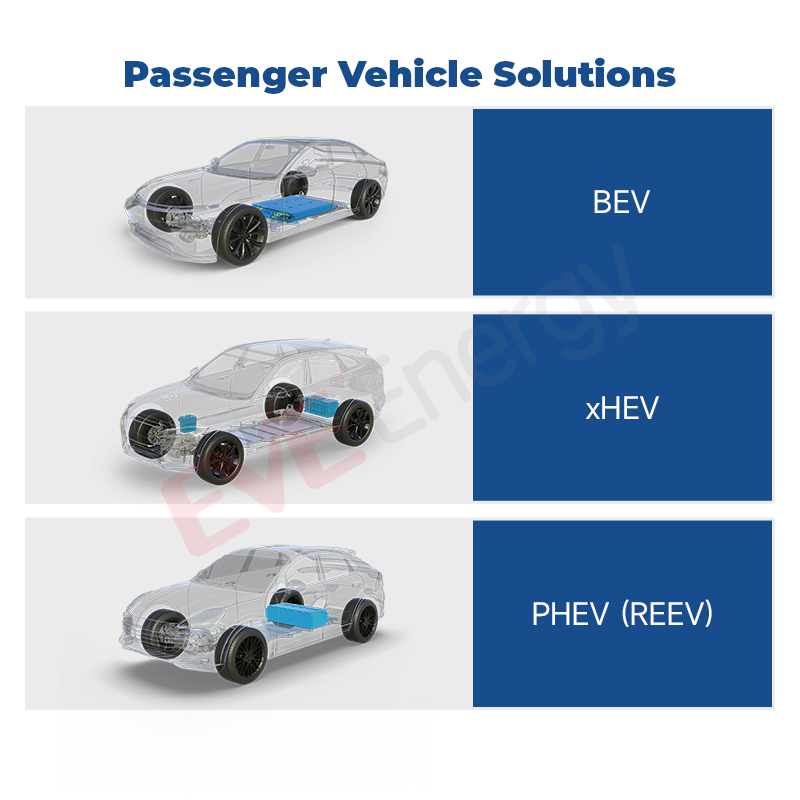

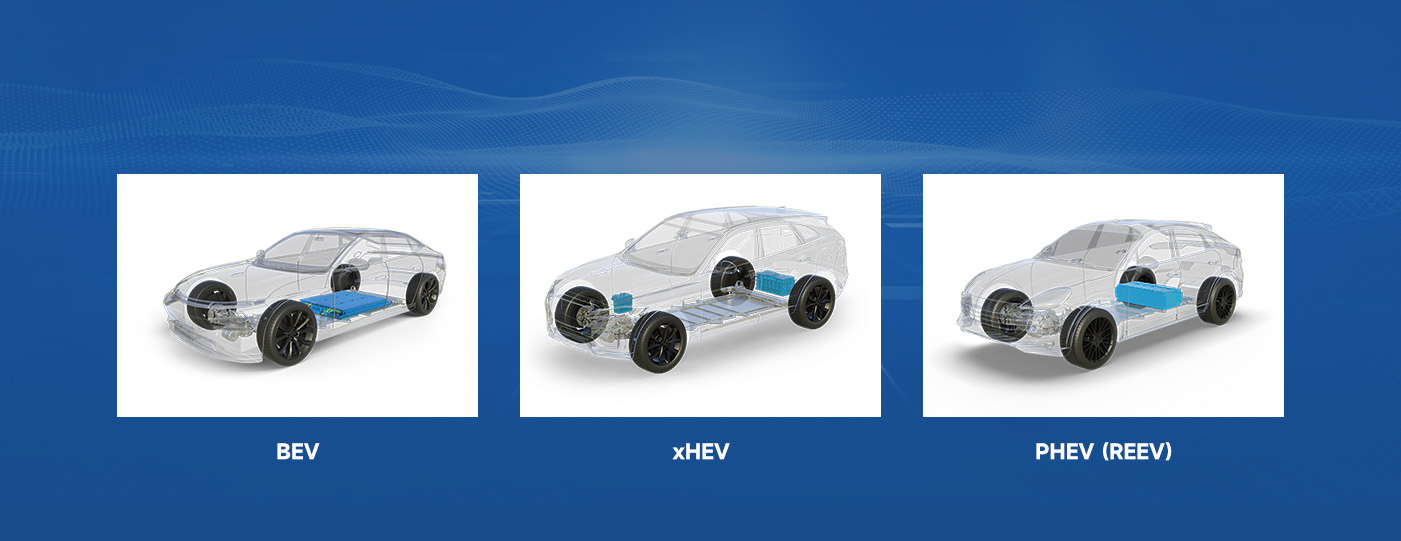

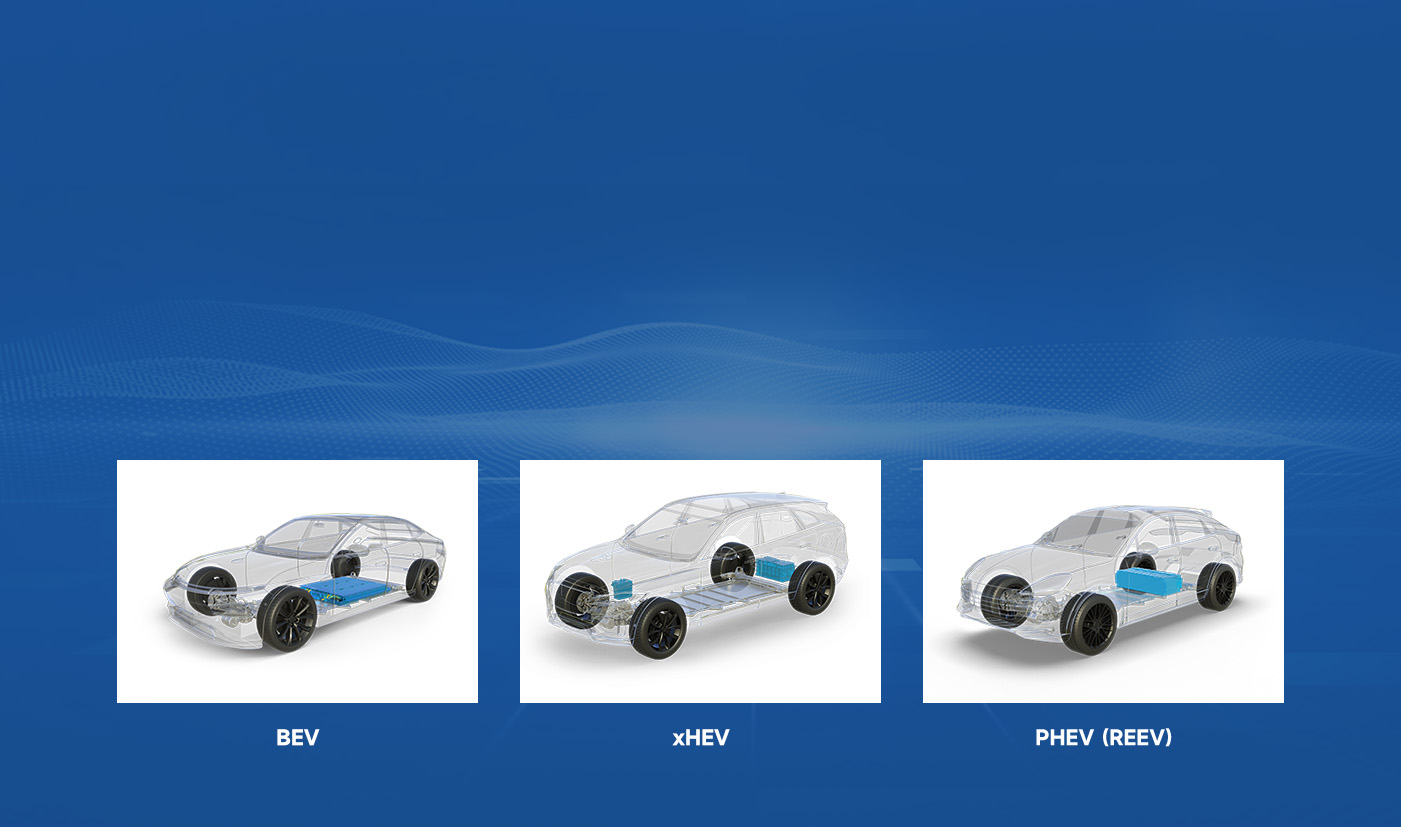

    Passenger Vehicle Solutions

    Entered the supply chain of international first-class passenger car enterprises and reached strategic cooperation with domestic new car-making forces

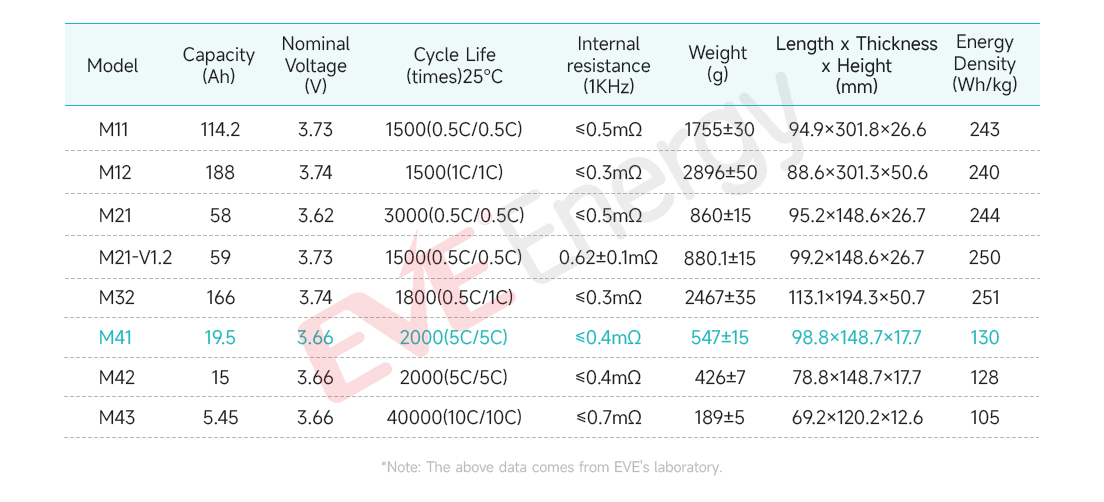

Specifications

Model NameM41
Nominal Capacity19.5Ah
Nominal Voltage3.66V
Nominal Cycles(times)

2000

Initial IR ≤0.4mΩ
Weight(g)547±15
Standard Charge/Discharge Ratio5C/5C

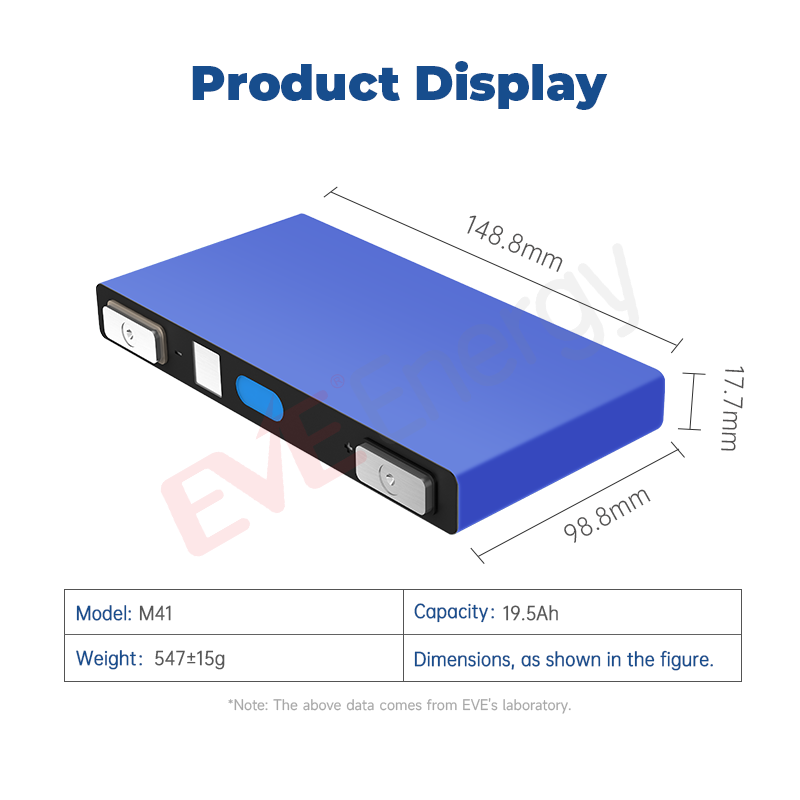

Length x Width x Height(mm)98.8*148.7*17.7
Energy Densityr(Wh/kg) 130

Charge Limit Voltage(Umax)

4.2V
Discharge Limiting Voltage(Umax)

3.0V
