21700 40PLHOT
EVE 21700 40PL cylindrical NCM cell 3.65V 4000mAh full-rate battery power tools/gardening tools
-
4000 Nominal Capacity(mAh)
-
3.65 Nominal voltage(V)
-
400 Nominal Cycles(times)
-
218 Energy density (Wh/kg)
-
67Max Weight (g)
-
≤5 AC internal resistance (mΩ)
Application Scenario
Vacuum cleaners,drills,lawn mowers,power tools,garden tools
Product Certification
Origin of Shipment：
Chinese Factory Direct、
EU Warehouse -
Low self-discharge rate
-
High security
-
Low internal resistance
-
High capacity
-
High discharge rate
-
Long cycle life
-
High-engery density
-
Fast charging
-
Product Introduction
-
Product Selection
-
Specifications
-
Safety Precautions
Product Introduction
-
First in domestic cylindrical battery shipmentsServe global top10 power tools brands and garden tools, E2W, vacuum cleaners and portable energy storage brands
-
21700/40PL 4Ah 3.65VHigh Capacity,High Discharge rate
High Discharge rateSupports continuous discharge up to 17.5C
-
Maximum Charge Current
Maximum Discharge Current
Wide temperatureCharge: 0°C ~ 45°C, Discharge: -20°C ~ 60°C
-
Cylindrical Battery Market Position & Quality AssuranceA globally leading provider of battery solutions
-

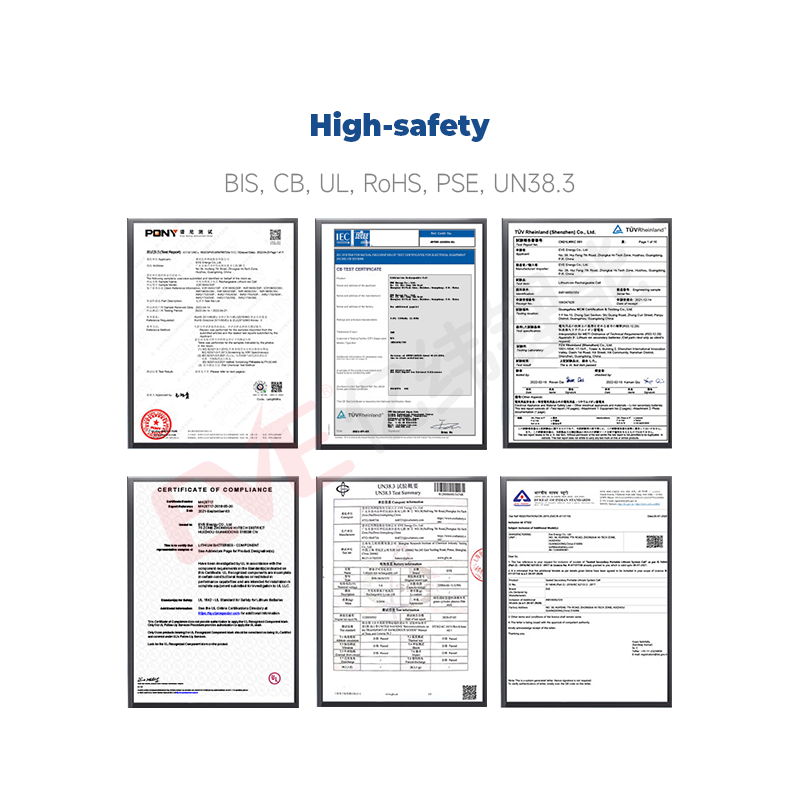

Safe & ReliableExplosion-proof / Leakage-free, certified for environmental management system

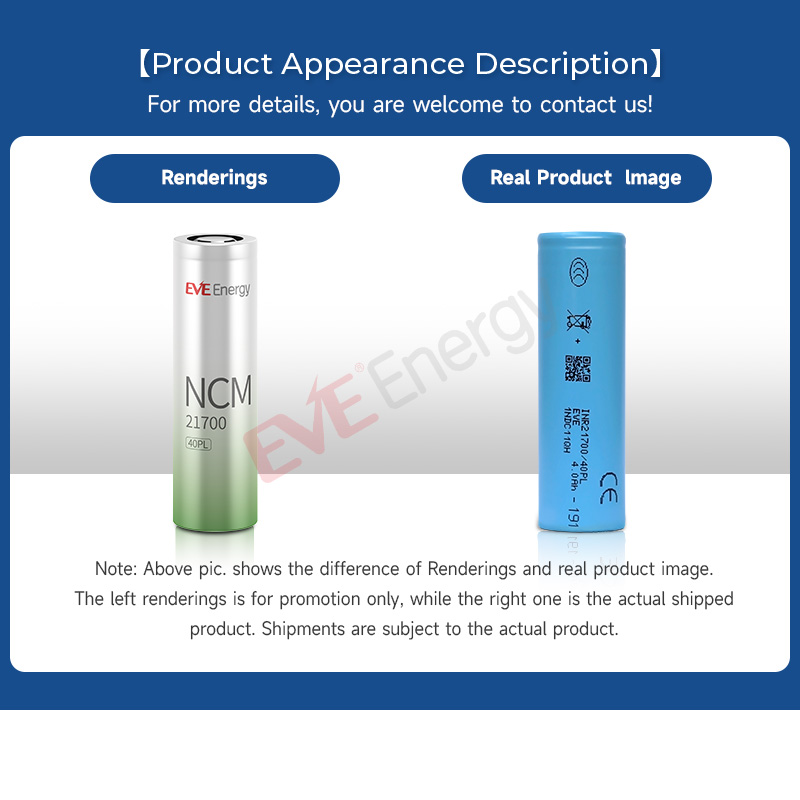

Product AppearanceFor more details, please contact our online customer service
-
Product Applications (Power Type)Applications: Battery solutions for power, garden & cleaning tools
Recommended Models: 21700 50PL, 40PL, 40P | 18650 30PL, 30P, 25P, 20P. -

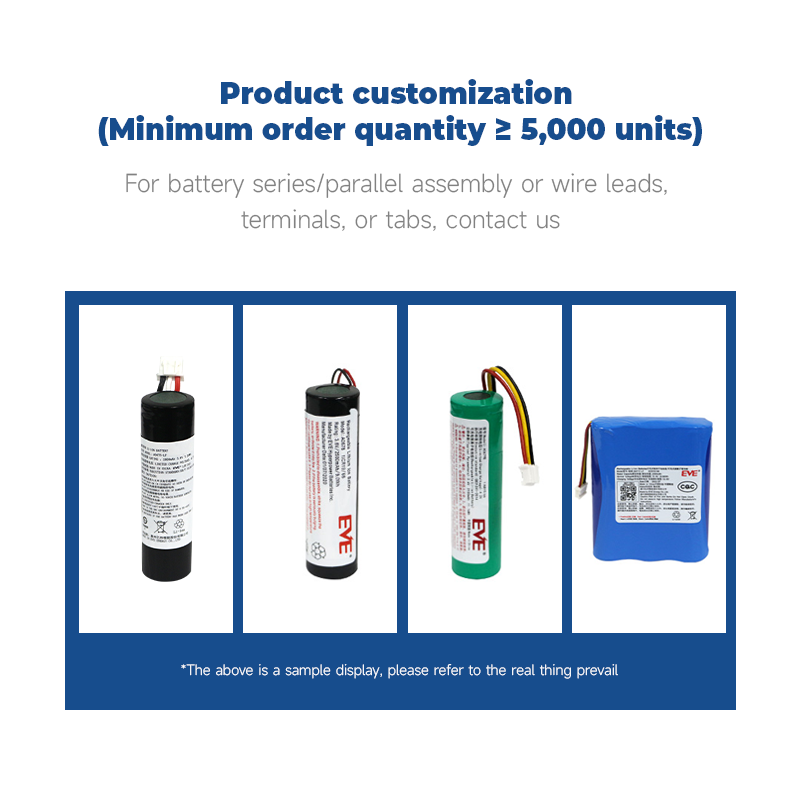

Product customization (Minimum order quantity ≥ 5,000 units)For battery series/parallel assembly or wire leads,terminals,or tabs,contact us
Packaging Display21700 Battery Cells-130 PCS Pack Display

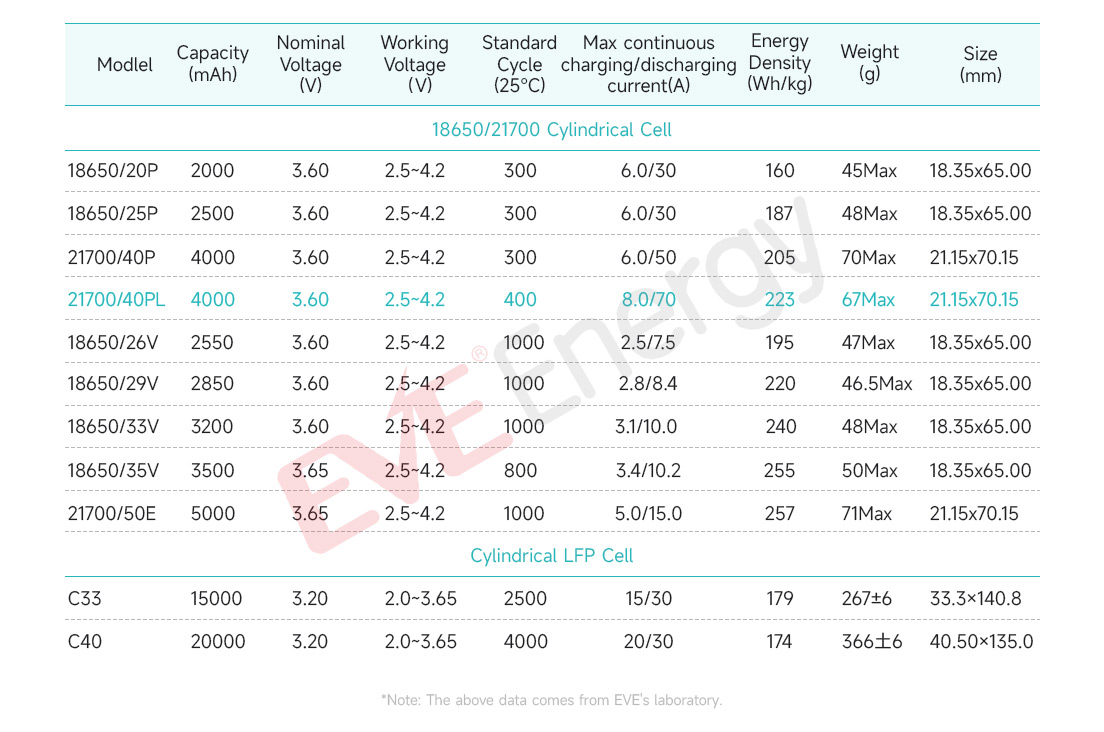

Product Selection
Specifications
| Model | 21700/40PL |
| Nominal Voltage | 3.65V |
| Nominal capacity | 4000mAh |
| Application scenario | Power tools, garden tools, electric two-wheelers, vacuum cleaners, sweeping robots |
| Standard charge | 2.0A constant current charge to 4.20±0.05V, constant voltage charge cutoff current 100mA |
| Fast charging | 8A constant current charge to 4.20±0.05V, constant voltage charge cutoff current 100mA |
| Standard discharge | 0.8A constant current discharge to 2.50V cutoff |
| Charge/discharge voltage range | 2.50V~4.20V |
| Battery weight | 67g |
| Battery Size | Height: 70.15±0.15mm, Diameter: 21.15±0.10mm |
| AC internal resistance | ≤5mΩ |
| Maximum continuous charging/discharging current | 12/70A |
Safety Instructions
Have questions?？Get help from a EVE expert
