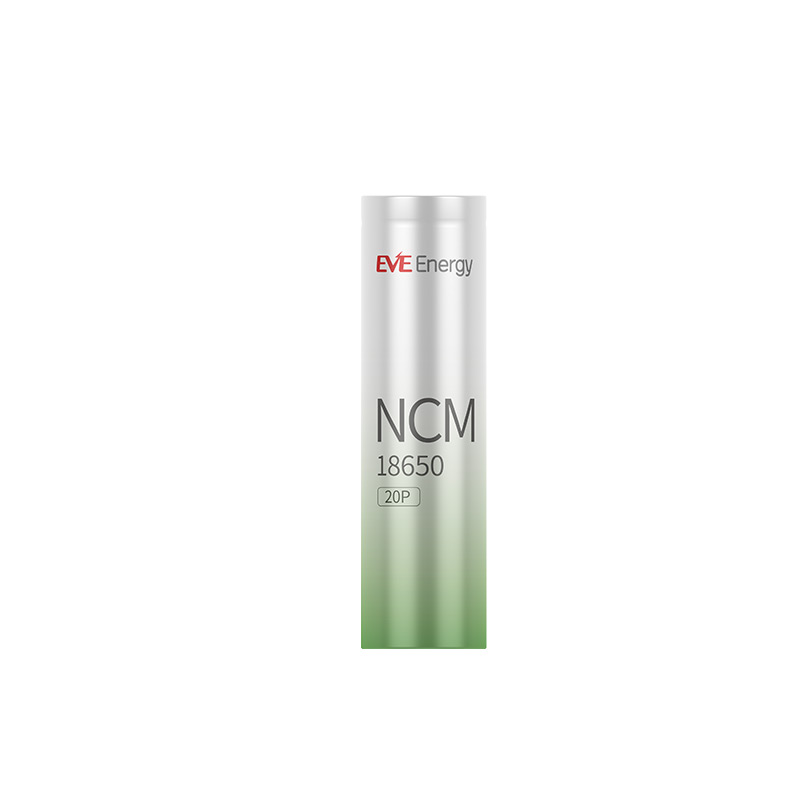

18650 20P
EVE 18650 20P cylindrical NCM cell 3.6V 2000mAh full-rate battery Power Tools,Garden Tools,Cutting Tools ,Cleaning Tools
-
2000 Nominal capacity(mAh）
-
3.60 Nominal Voltage(V)
-
300 Nominal Cycles(times)
-
170 Energy density (Wh/kg)
-
45Max Weight (g)
-
≤18 AC internal resistance (mΩ)
Application Scenario
Power tools,garden tools,cutting tools,cleaning tools
Product Certification
Origin of Shipment：
Chinese Factory Direct、
EU Warehouse -
Low self-discharge rate
-
High security
-
Low internal resistance
-
High capacity
-
High discharge rate
-
Long cycle life
-
High-engery density
-
Fast charging
-
Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
First in domestic cylindrical battery shipmentsServe global top10 power tools brands and garden tools, E2W, vacuum cleaners and portable energy storage brands
-
18650/20P 2000mAh 3.6VHigh Capacity,High Discharge rate
High Discharge rateSupports up to 30A continuous discharge
-
Fast chargingMaximum continuous discharge current 6A
Wide temperatureOperable from -20°C to 60°C
High-energy densityUp to 160 Wh/kg
-
Cylindrical Battery Total SolutionIndustry Applications: Power Tool,Garden Tool,Vacuum Cleaner,Sweeping Robot;Models:21700 40P,18650 25P,20P,15P
-

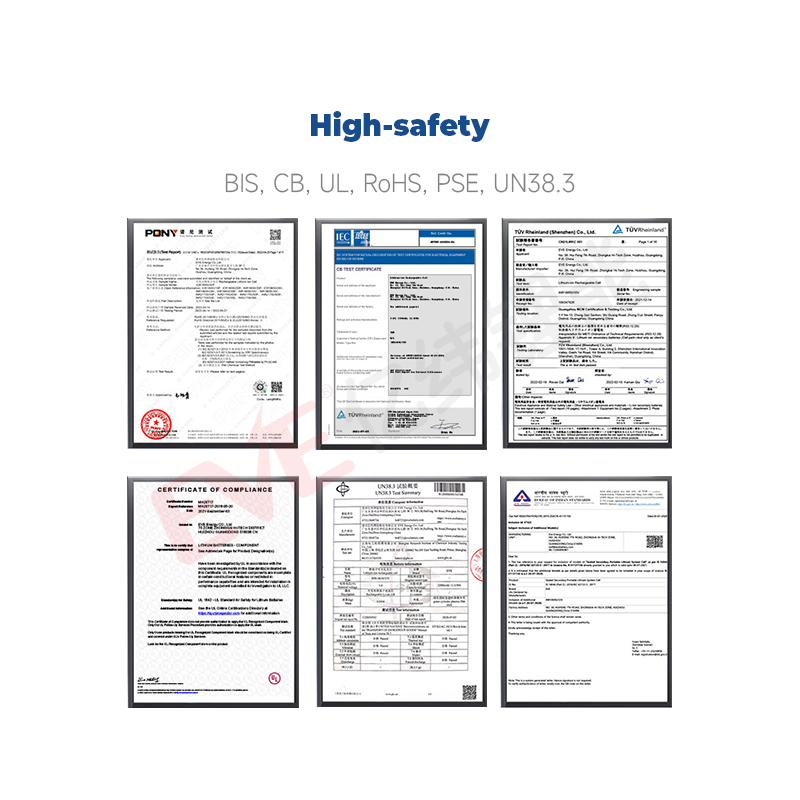

Fully certifiedCE,BIS,CB,UL,RoHS,PSE,UN38.3
Delivery From German WarehouseETD:1-3 WORKING DAYS丨ETA:5-7 WORKING DAYS
-
Packaging/Shipping SafetyCarton packing:200 pcs/carton丨Wooden case packing:96pcs carton(19200pcs cells inside)
-

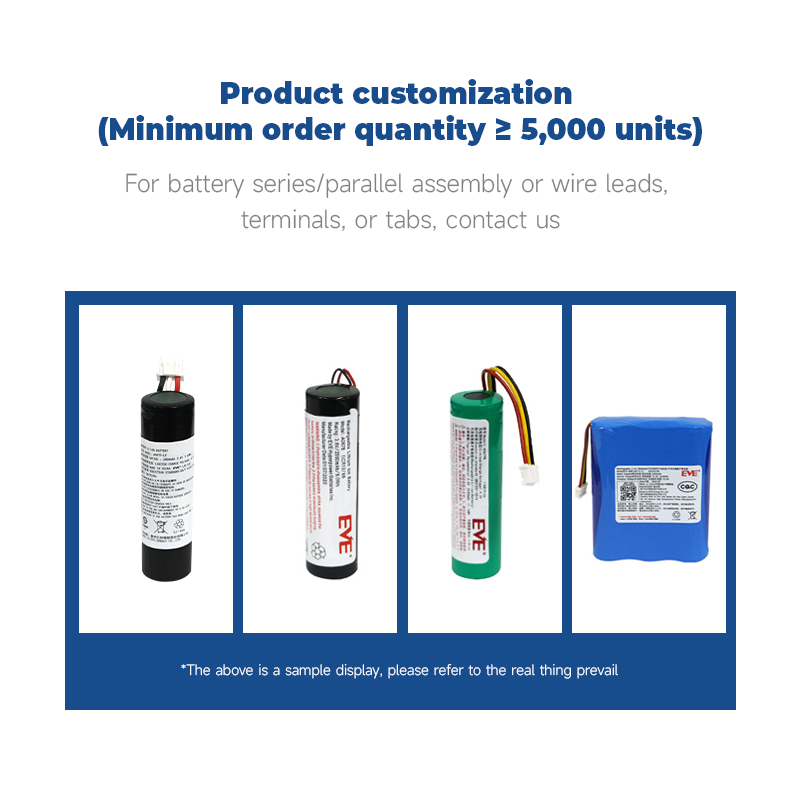

Product customization (Minimum order quantity≥5,000 units)For battery series/parallel assembly or wire leads, terminals, or tabs, contact us
Packaging Display18650 Battery Cells-100 PCS Pack Display

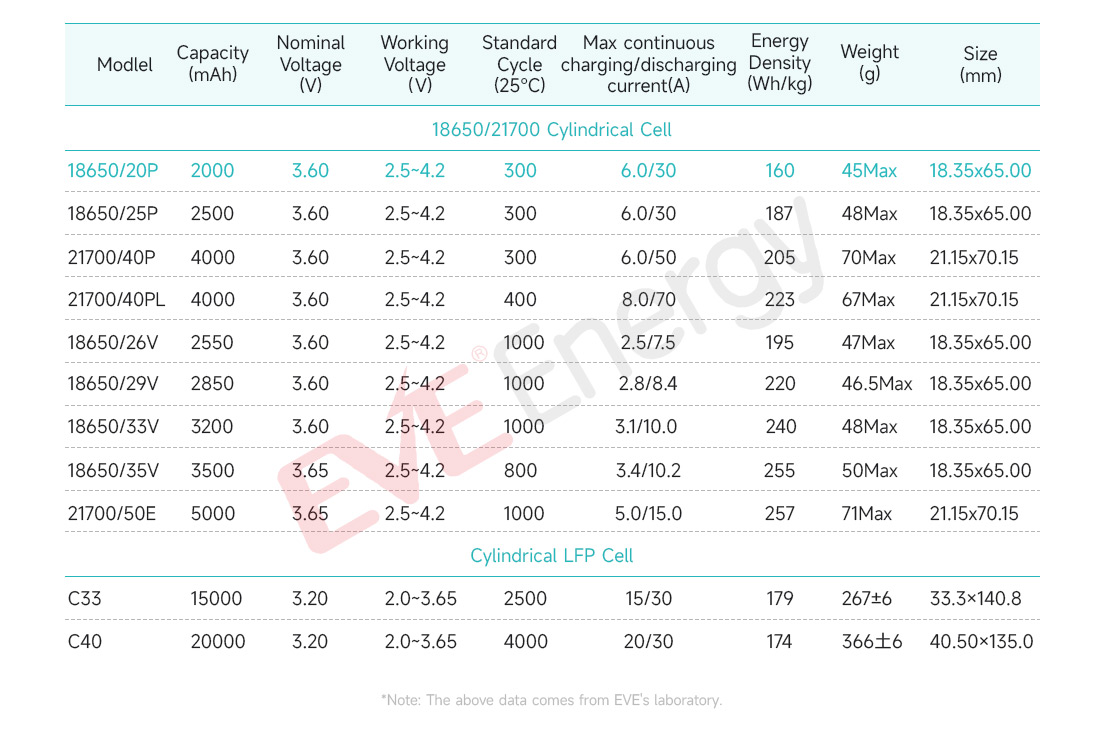

Specifications
| Model | 18650/20P |
| Nominal Voltage | 3.6V |
| Nominal capacity | 2000mAh |
| Application scenario | Power tools, garden tools, electric two-wheelers, vacuum cleaners, sweeping robots |
| Standard charge | 1A constant current charge to 4.20±0.05V, constant voltage charge cutoff current 100mA |
| Standard discharge | 0.4A constant current discharge to 2.50V cutoff |
| Charge/discharge voltage range | 4.20V~2.50V |
| Weight | 45g |
| Size | Height: 65.00±0.15mm, Diameter: 18.35±0.10mm |
| Standard charging current | 1000mA |
| Standard discharge current | 5A |
| Maximum continuous charging/discharging current | 6.0/30A |
Safety Instructions
