EVE Lithium M43 Prismatic ternary battery 3.66V 5.45Ah power battery cell aviator
-
3.66 Nominal voltage(V)
-
5.45 Nominal capacity(Ah)
-
40000 Nominal Cycles(times)
-
189±5 Weight(g)
-
105 Energy densityr(Wh/kg)
-
69.2*120.2*12.6 Size(mm)
Application Scenario
Excavators,Forklifts,Buses,Heavy trucks,Passenger cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Automated Production
-
Fully Certified
-
Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
M43 powers various energy applications5.45Ah Prismatic NCM Battery, Ideal for aircraft applications.
-
M43 5.45Ah 3.66VHigh Reliability Long Cycle Life
Cycling up to 5000 times;Capacity Energy Retention Rate≥70%At(25°C 10C/10C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-
Product Appearance DescriptionFor More Information,Please Contact Online Customer Service
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge Current
Standard Discharge Current
Operating Temperature (°C) -
Application CasesStart-Stop Power Supply, Hybrid Heavy-Duty Truck
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life
High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System

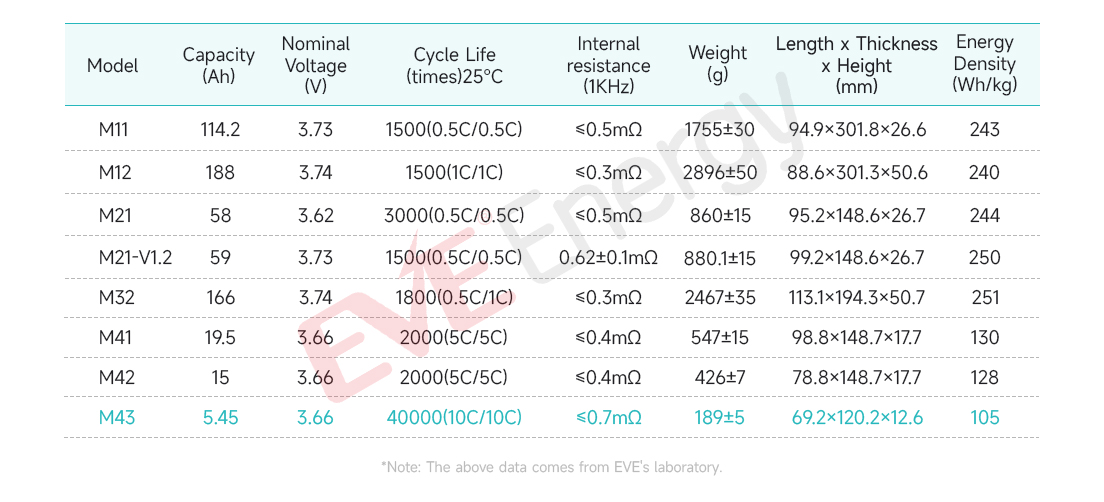

Specifications
| Model Name | M43 |
| Nominal Capacity | 5.45Ah |
| Nominal Voltage | 3.66V |
| Nominal Cycles(times) | 40000 |
| Weight(g) | 189±5g |
| Length x Width x Height(mm) | 69.2*120.2*12.6 |
| Energy density(Wh/kg) | 105 |
| Initial IR | ≤0.7mΩ |
| Operating temperature | 0~50℃ |
