ER17505
EVE ER17505 Li-SOCl2 battery 3.6V 3600mAh smart water meter electric meter gas meter
-
3.6 Nominal Voltage（V）
-
3600 Nominal Capacity（mAh)
-
100 Maximum Continuous Current (mA)
-
180 Maximum Pulse Current (mA)
-
26 Weight (g)
-
-55~+85℃ Operating Temperature (℃)
Application Scenario
Smart electricity meter, smart water meter, smart heat meter, smart gas meter,
Product Certification
Origin of Shipment：
Chinese Factory Direct -
Eco-friendly
-
Full life cycle
-
Wide temperature
-
Long lifespan
-
High pulse
-
Low self-discharge rate
-
High security
-
High capacity
-
Product Introduction
-
Product Selection
-
Specifications
-
Safety Precautions
Product Introduction
-
World-leading,Sales and export volume ranks No. 1 for 8yrsNational Manufacturing Champion Products
-
ER17505 3.6V 3600mAhhigh-capacity,long lifespan

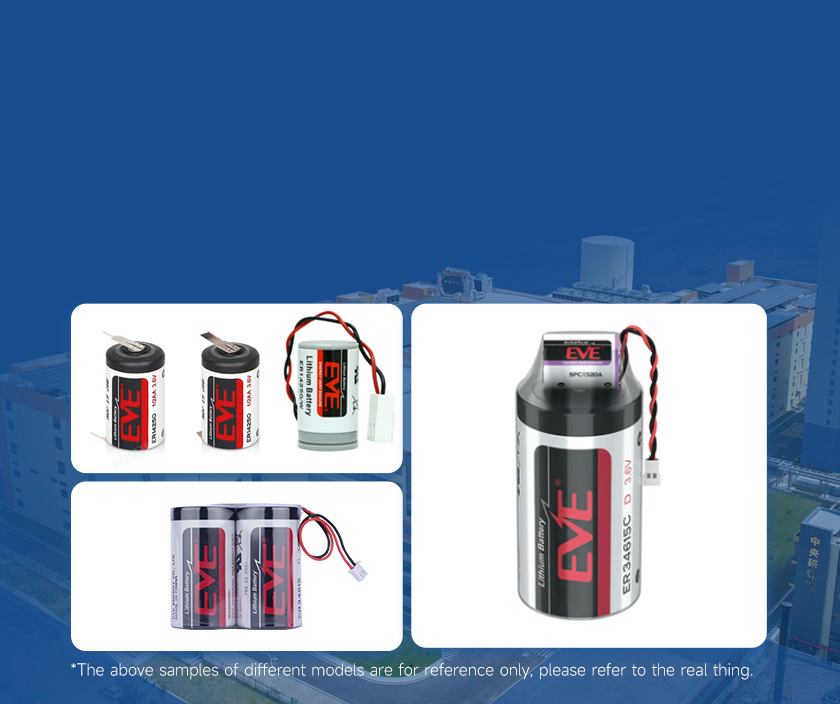

Custom processing and sample design available upon requestCustomize battery cells with series/parallel configurations,solder tabs,or plug leads
-
Provide integrated solutions for smart meters such as water meters,electricity meters,gas meters,heat meters,sensors,etc20 years + long life,-55℃~85℃ ultra-wide temperature range, low self-discharge rate
-
Recommended SolutionsSmart Electricity Meter,Smart Water Meter,Smart Heat Meter,Smart Gas Meter,Sensor
-

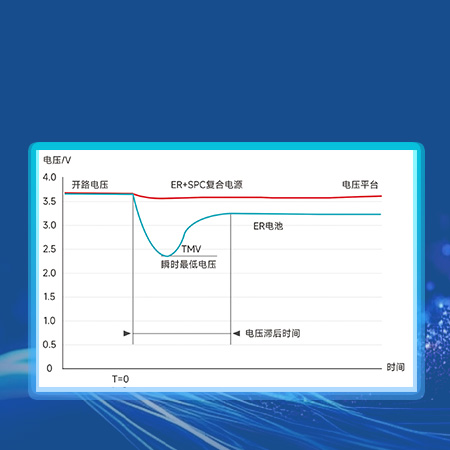

Advantage of ER+SPC solutions: no voltage hysteresis
-
Long lifespanExtremely long reliability life expectancy
High Stability VoltageNominal voltage of 3.6V with excellent operational voltage stability
Low self-discharge rateAt 20°C ambient temperature, the annual self-discharge rate is ≤1%
Product Selection
Specifications
| Model | ER17505 |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 3600mAh |
| Applications | Smart electricity meter, smart water meter, smart heat meter, smart gas meter |
| Operating Temperature | -55~+85℃ |
| Size | D: 17.5mm Max. H: 51.0mm Max. |
| Weight | 26g |
| Volume | 12.5cm³ |
Safety Instructions
Have questions?？Get help from a EVE expert
