LF230HOT

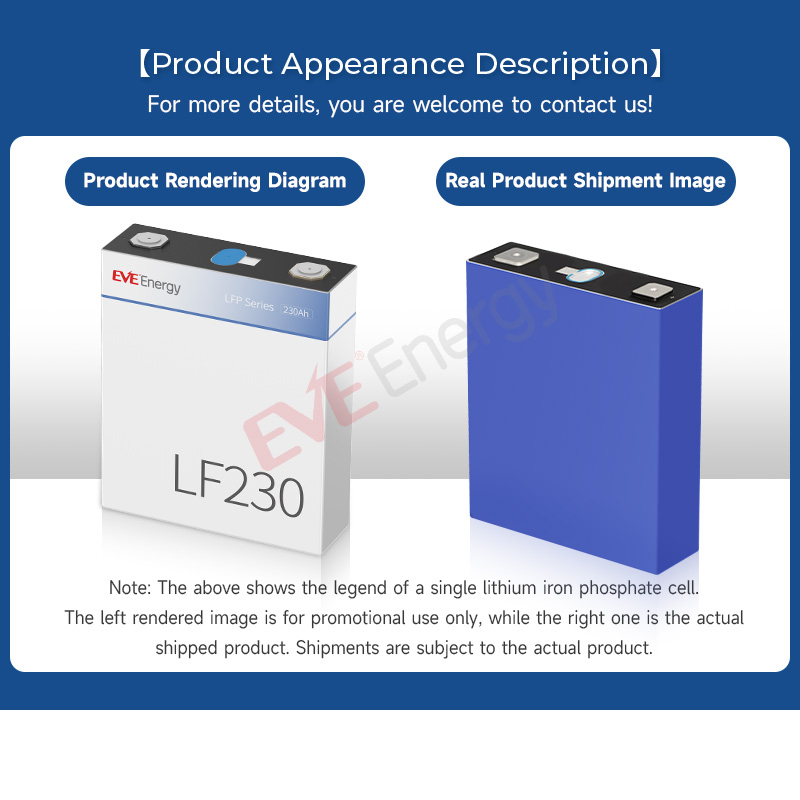

EVE Lithium LF230 Prismatic lithium iron phosphate battery 3.2V 230Ah power cell passenger car bus engineering power battery
-
230 Nominal capacaity(Ah)
-
3.2 Nominal voltage(V)
-
4000 Nominal Cycles(times)
-
4140±124 Weight(g)
-
173.9*53.8*207.2 Size(mm)
-
0.5C/0.5C Charge/Discharge Multiplier
Application Scenario
Excavators,Heavy Trucks,Forklifts,Passenger Cars
Product Certification
Origin of Shipment：
Chinese Factory Direct、
EU Warehouse -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Full Life Cycle
-

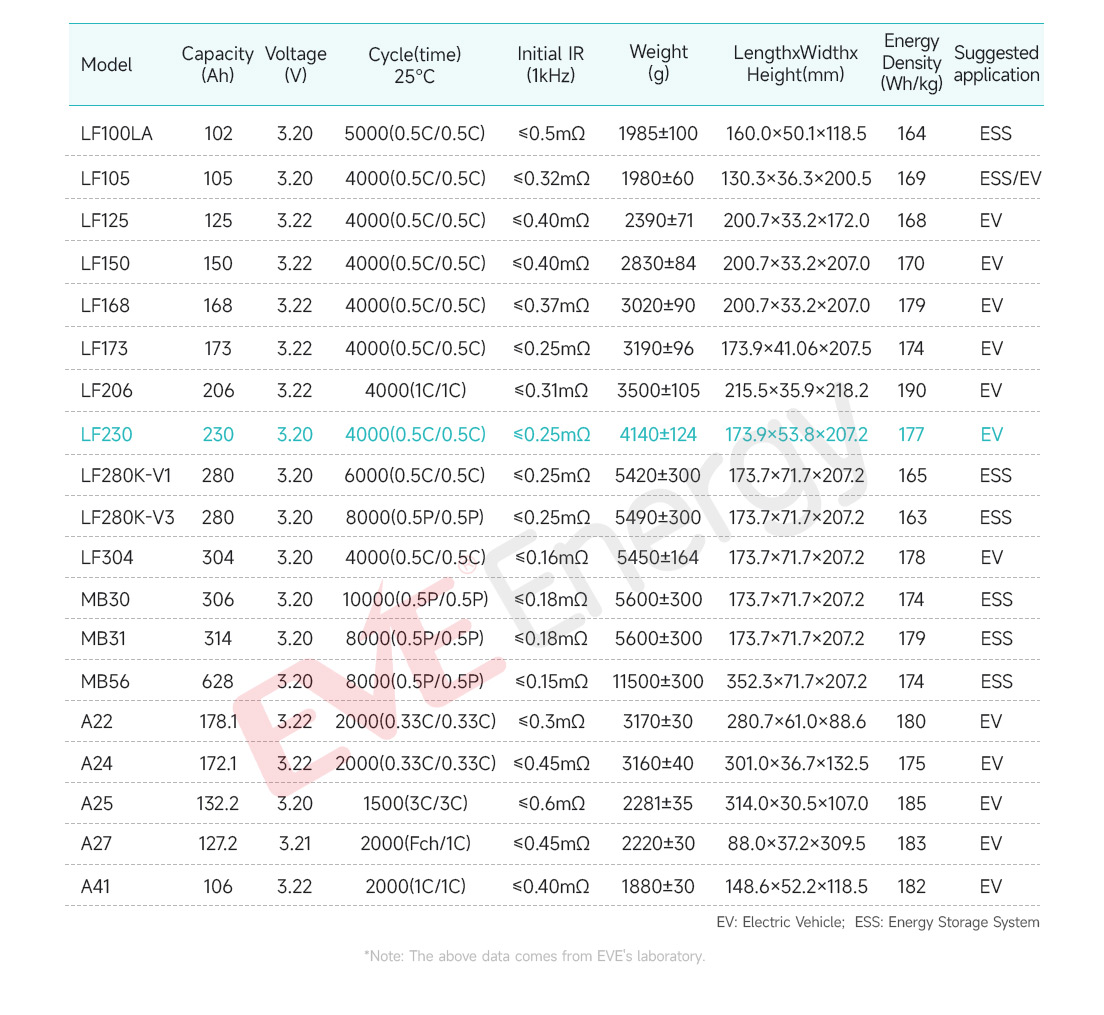

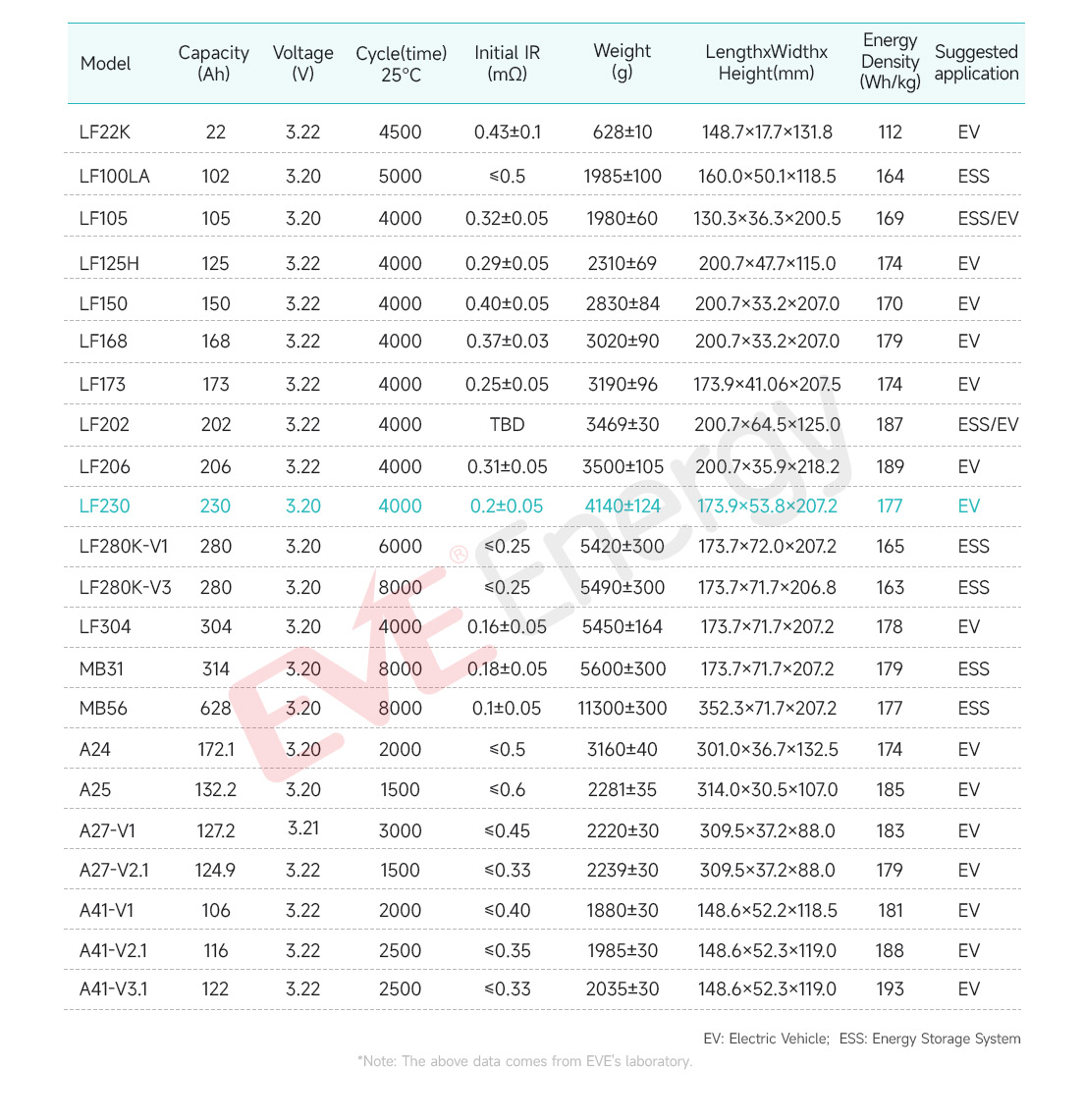

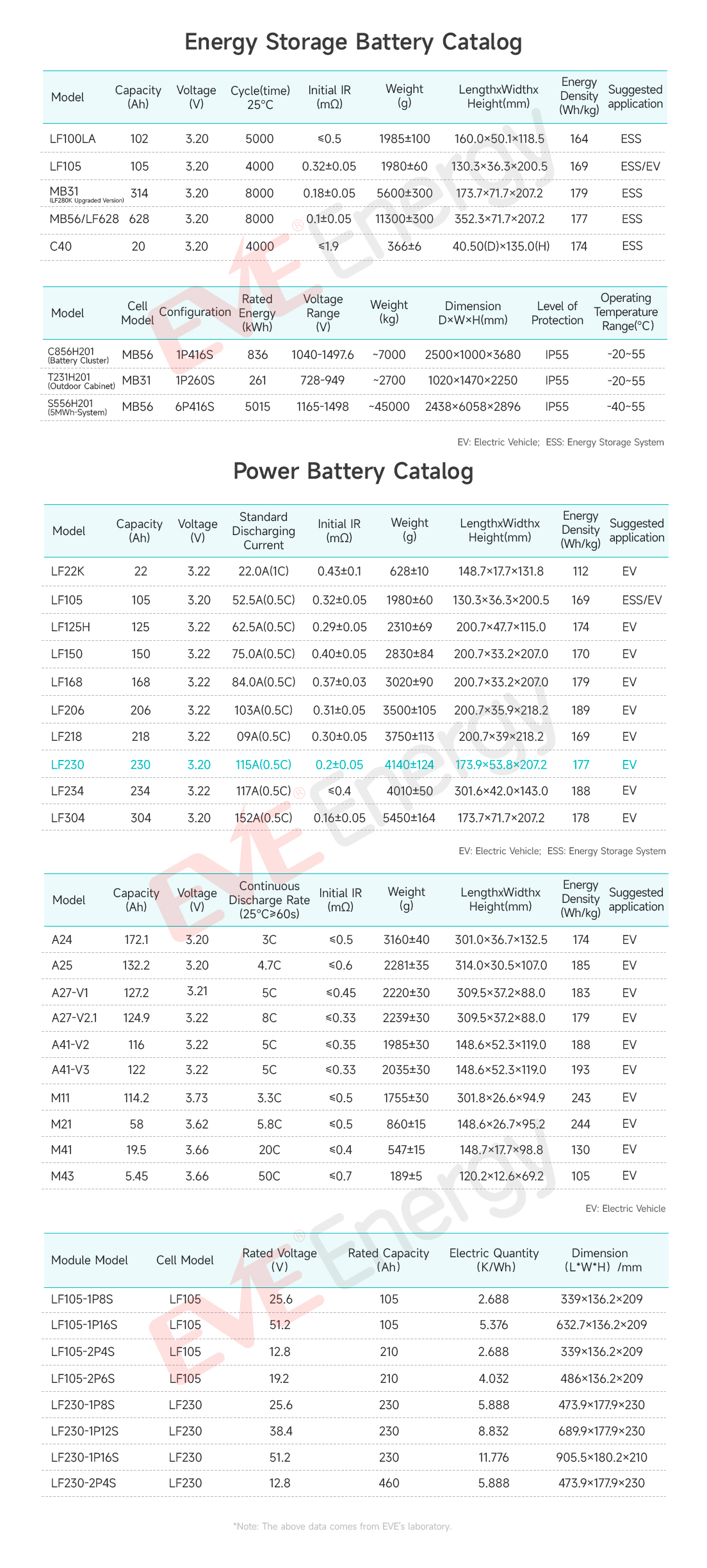

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
No.2 Domestic Market Share in Commercial Vehicle BatteriesEntered into cooperation with global well-known enterprises to build a new platform for energy storage
-
LF230 230Ah 3.2VHigh Capacity Long Cycle
Up to 4000 Cycles;80%SOHUnder the condition of(25℃ 0.5C/0.5C)
-
Standard Platforms:Comprehensive Solutions From Cell to BESSApplication Area:Excavators,Heavy trucks,Forklifts,Passenger cars
-

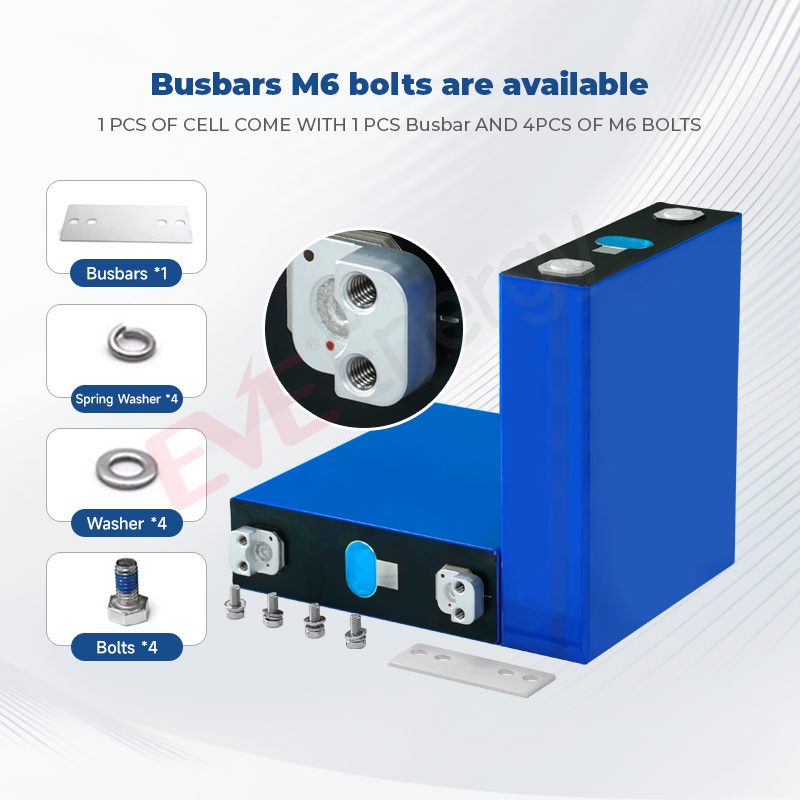

Busbars & M6 Bolts are AvailableFor more information,please contact online customer service
-
High PerformanceLow internal resistance of battery cell,high discharge rate,stable charge/discharge,long cycle life
High ConsistencyIntelligent factory with highly automated production lines and high-precision equipment to ensure battery consistency
Safe and ReliableOver 2856 cell manufacturing control points,with perfect design process and testing system
-
Application CasesPassenger Car Solutions,Commercial Vehicle Solutions,Engineered Power Solutions
-
Product CertificationObtain GB,CE,IEC,UL,et al
Delivery From German WarehouseETD:1-3 WORKING DAYS丨ETA:5-7 WORKING DAYS
-
Packaging/Shipping SafetyCarton packing:4 pcs/carton丨Wooden case packing:30pcs carton(120pcs cells inside)
Specifications
| Model Number | LF230 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 230Ah |
| Initial IR | ≤0.25mΩ |
| Weight(g） | 4140±124 |
| Width*Thickness*Height(mm) | 173.9*53.8*207.2 |
Standard charge/Discharge current | 115A/115A |
| Nominal Cycles(times) | 4000 |
| Charging Temperature | -10～65℃ |
| Discharging Temperature | -35~65 ℃ |
Safety Instructions
Have questions?？Get help from a EVE expert
