SPC1520A
EVE SPC1520A Li-ion Battery Capacitor 3.6V/45mAh IoT Electronic Smart Metering
-
3.6 Nominal voltage（V）
-
45 Nominal capacity（mAh）
-
2000 Maximum pulse current
-
≤160 Internal Resistance (mΩ)
-
-40~+85 Operating temperature（℃）
-
15.1*21.0 Sizes（mm）
Application Scenario
Smart Metering, Tracking and Positioning, Smart Healthcare, Smart Security, Automotive Electronics
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
Long Service Life
-
High Security
-
Low Self-discharge Rate
-
High Energy Density
-
Ultra Wide Temperature Applications
-
Standard Size
-
Safety
-
Product Introduction
-
Product Selection
-
Specifications
-
Safety Precautions
Product Introduction
-
World-leading, Sales and export volume ranks No. 1 for 8yrsEVE has supplied over 3.5 billion lithium primary batteries to the world
-
SPC1520A 3.6V 45mAhhigh pulse,long lifespan
Market applicationSmart Metering, Smart Cities, Automotive Electronics, Location Tracking
-

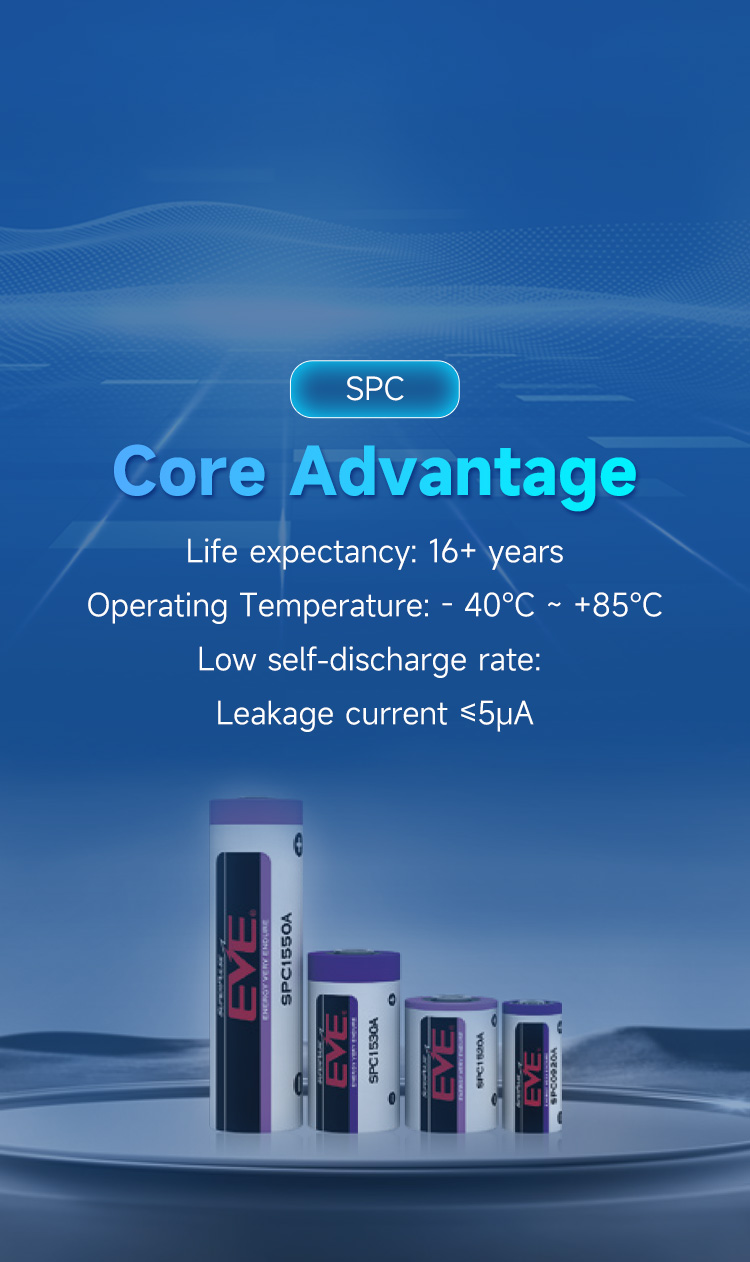

Provide integrated solutions for smart meters such as water meters, electricity meters, gas meters, heat meters, sensors, etc16 years + long life, -40℃~85℃ ultra-wide temperature range, low self-discharge rate
-

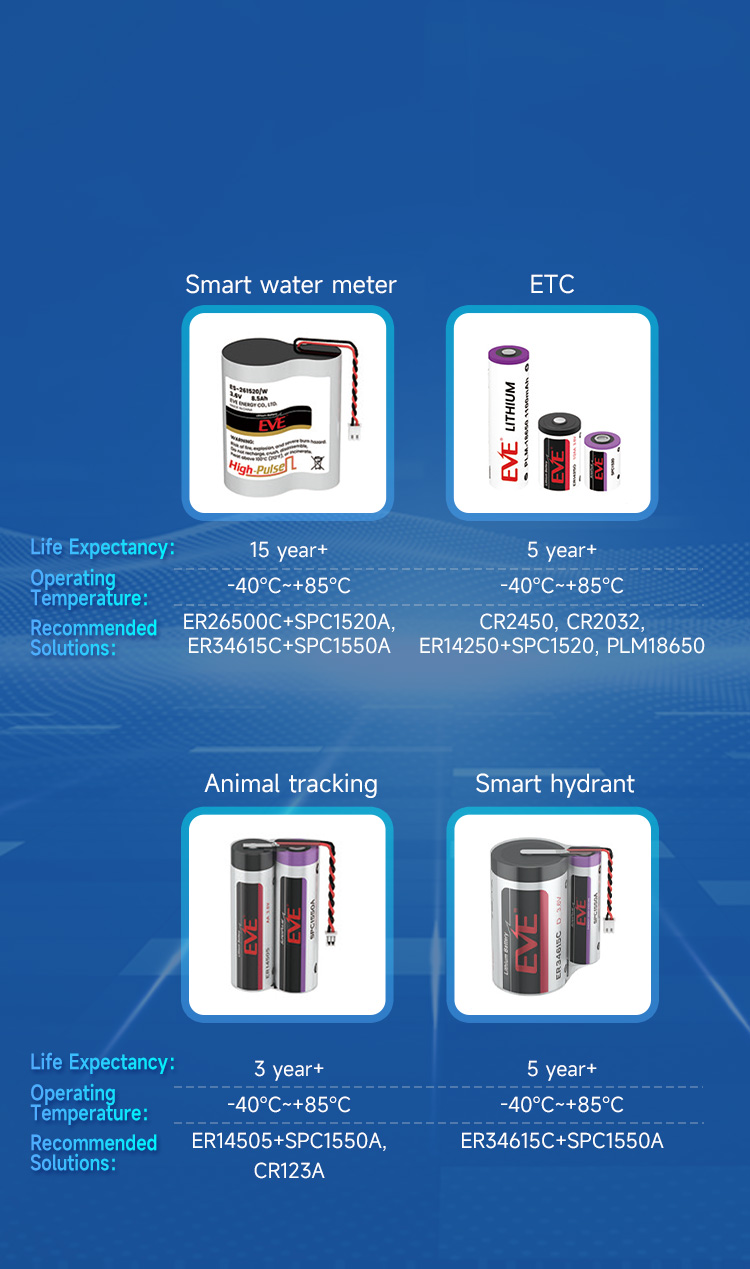

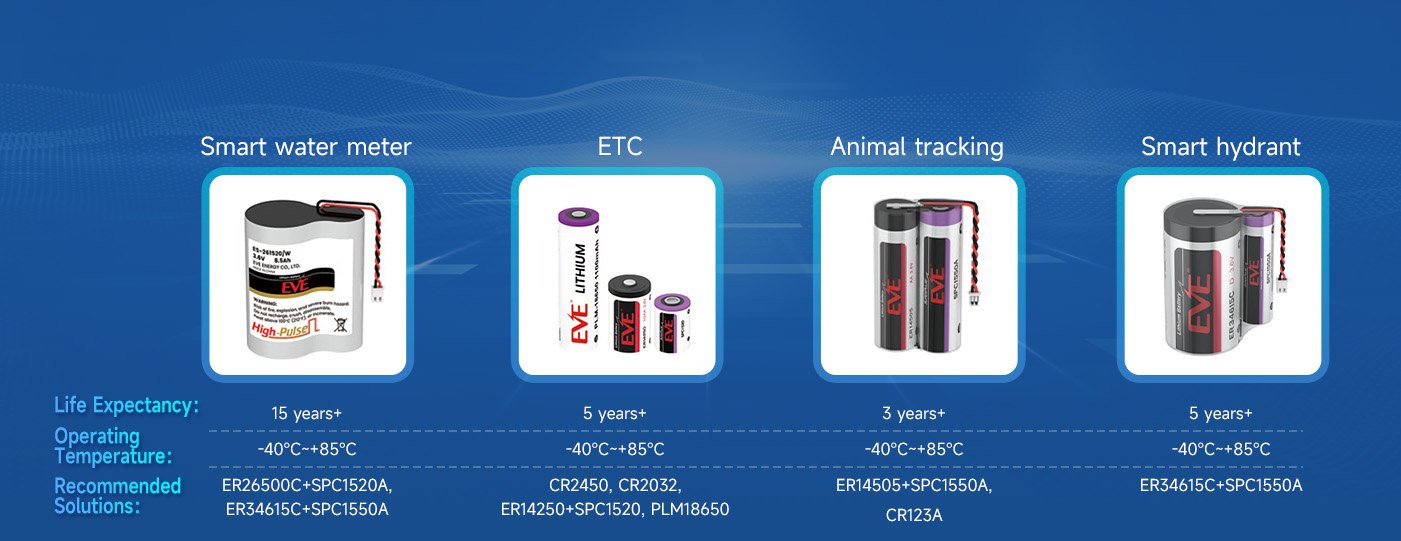

Application Casemart water meters, ETC, animal tracking, smart hydrants
-
Long lifespanExtremely long reliability life expectancy

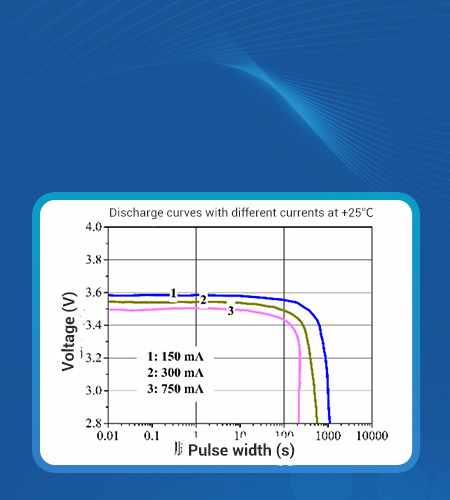

High Stability VoltageGood operating voltage smoothness at nominal voltage

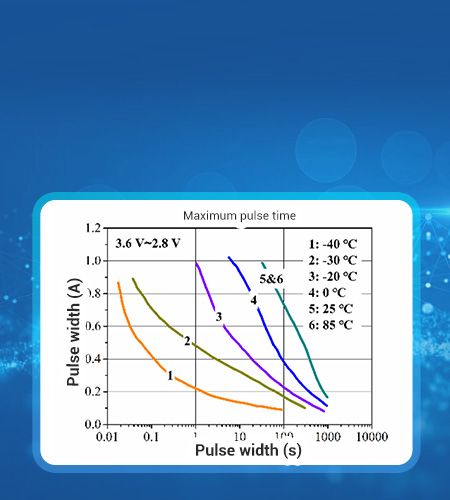

High pulseHigh Pulse Discharge

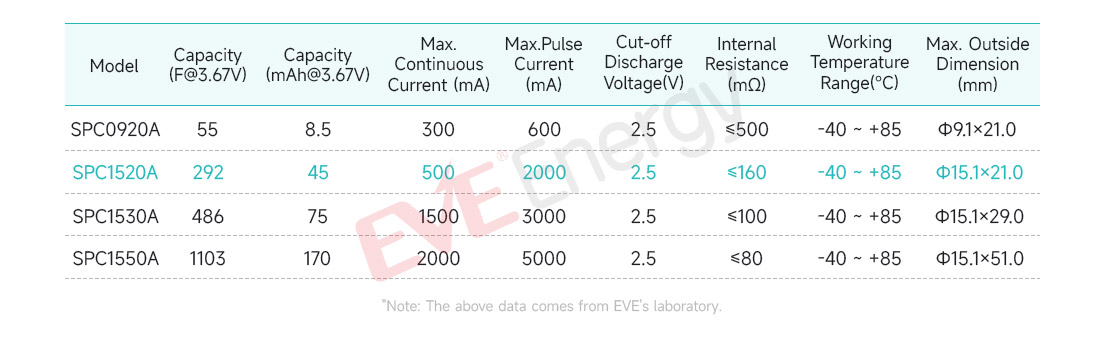

Product Selection
Specifications
| Model | SPC1520A |
| Nominal voltage | 3.6V |
| Nominal capacity | 45mAh |
| Scope of use | Automatic Meter Reading (AMR) devices, GPS tracking devices/GSM modems Assets |
| Type | Battery capacitor |
| Weight | 7.5g |
| Maximum charging current | 50mA |
| operating temperature | -40°C~+85°C |
Safety Instructions
Have questions?？Get help from a EVE expert
