M42
EVE Lithium M42 Prismatic ternary battery 3.66V 15Ah power battery cell two-wheeled vehicles tricycle
-
3.66 Nominal voltage(V)
-
15 Nominal capacity(Ah)
-
2000 Nominal Cycles(times)
-
426±7 Weight(g)
-
128 Energy densityr(Wh/kg)
-

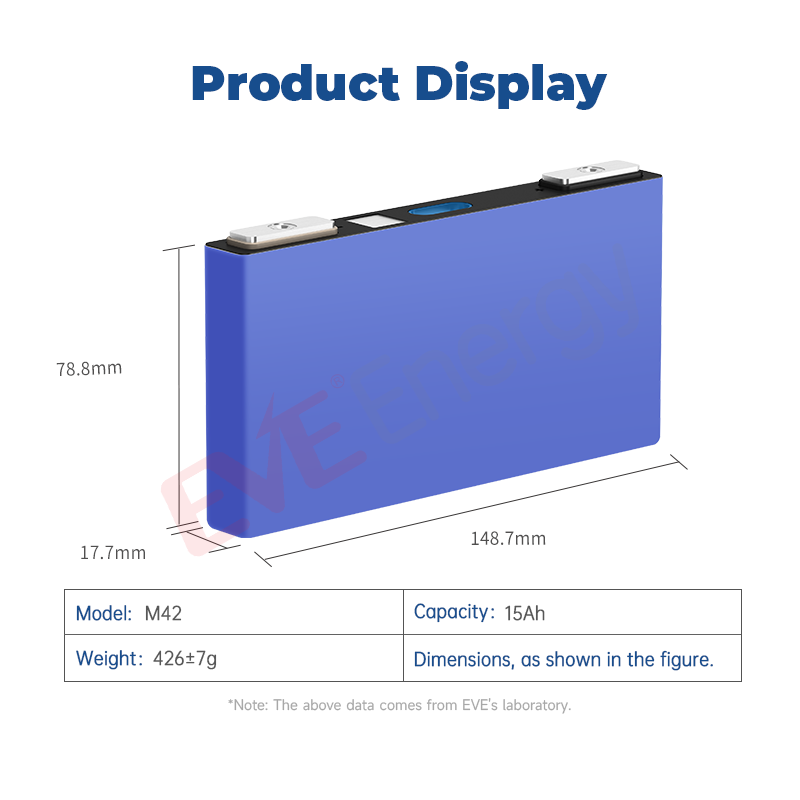

78.8*148.7*17.7 Size(mm)
Application Scenario
Excavators,Forklifts,Buses,Heavy trucks,Passenger cars

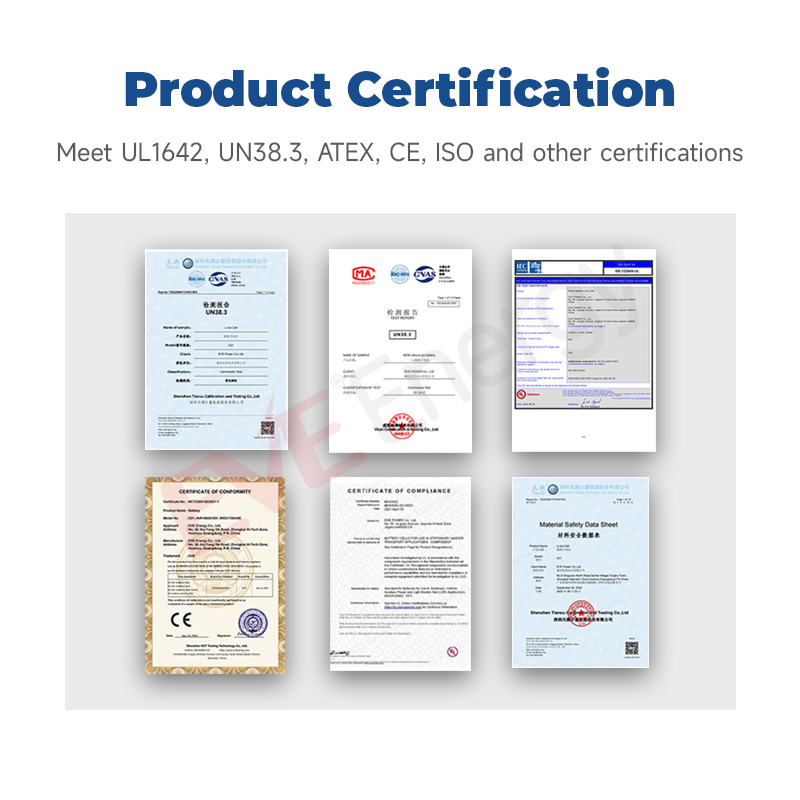

Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Automated Production
-
Fully Certified
-

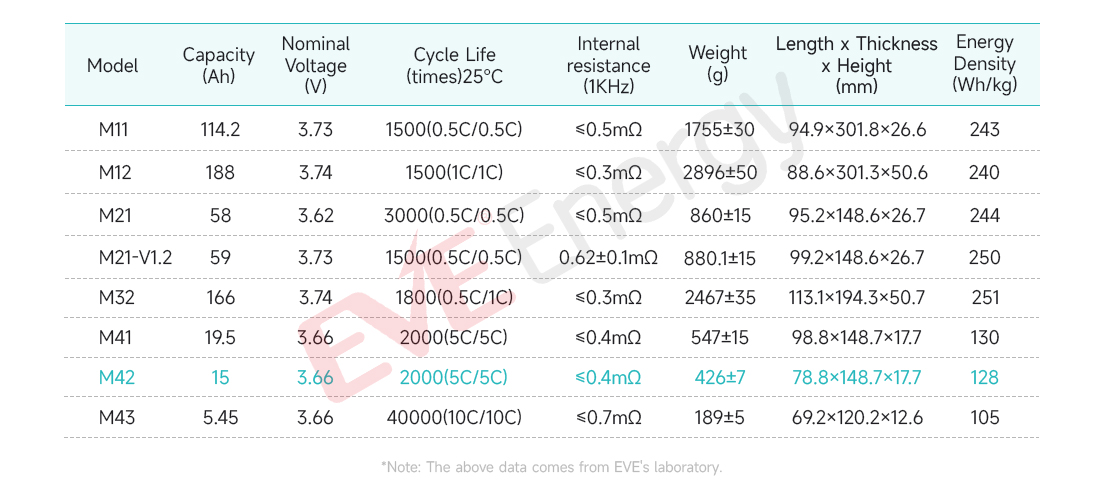

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-

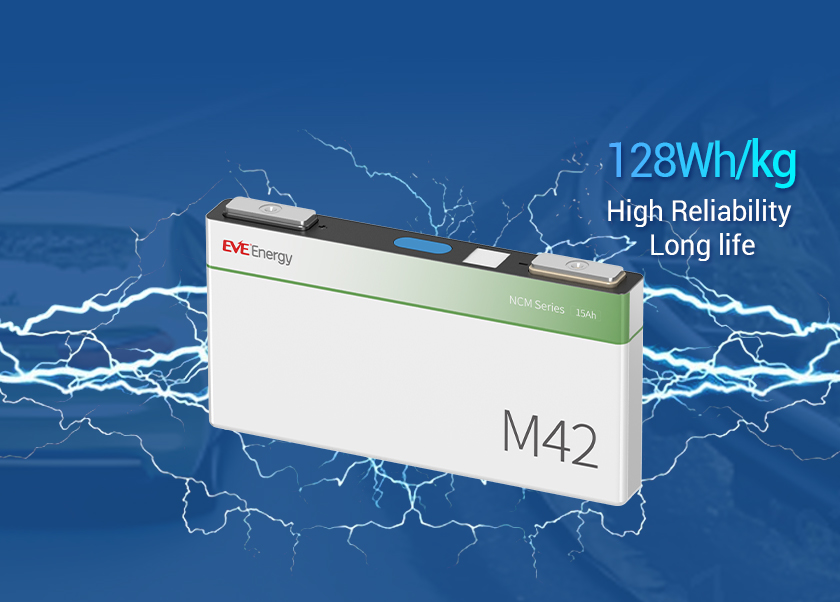

M42 powers various energy applications15Ah Prismatic NCM Battery, Ideal for two-wheelers and tricycles.
-
M42 15Ah 3.66VHigh Reliability Long Cycle Life
Cycling up to 2000 times;Capacity Energy Retention Rate≥70%At(25°C 0.5C/0.5C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-

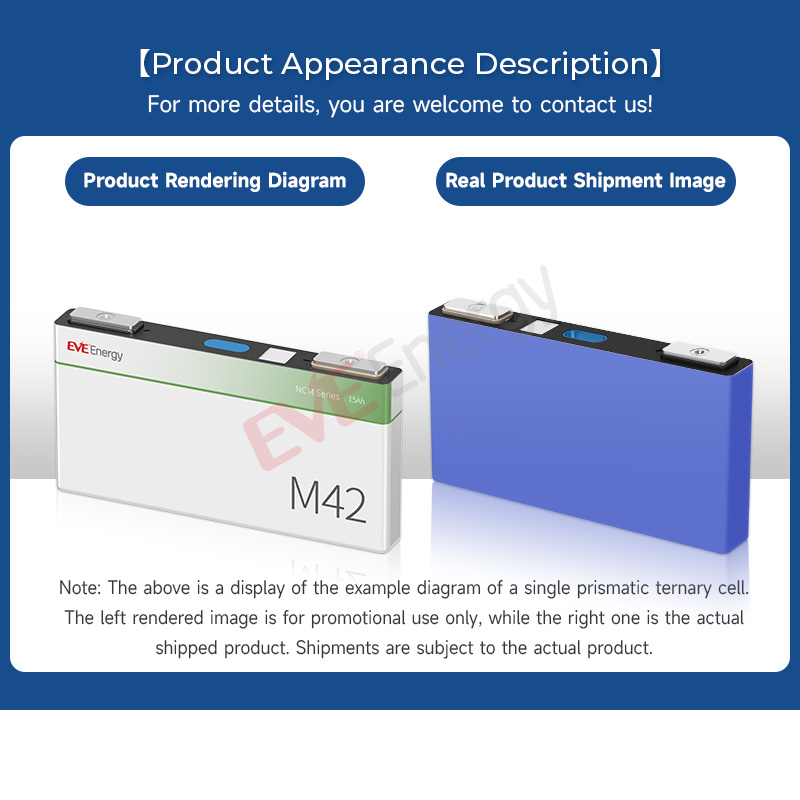

Product Appearance DescriptionFor More Information,Please Contact Online Customer Service
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge Current
Standard Discharge Current
Operating Temperature (°C) -
Application CasesUnmanned Aerial Vehicle,Stop-Start Battery,48V Mild Hybrid,Special Vehicle
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life

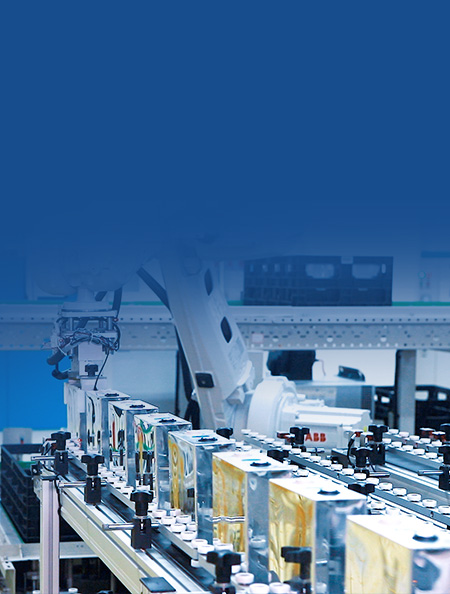

High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System
Specifications
| Model Name | M42 |
| Nominal Capacity | 15Ah |
| Nominal Voltage | 3.66V |
| Nominal Cycles(times) | 2000 |
| Initial IR | ≤0.4mΩ |
| Weight(g) | 426±7 |
| Standard Charge/Discharge Ratio | 5C/5C |
| Energy Densityr(Wh/kg) | 128 |
| Length x Width x Height(mm) | 78.8*148.7*17.7 |
| Standard Charging Current | 15A |
| Standard Discharge Current | 15A |
Safety Instructions
Have questions?？Get help from a EVE expert
