M21HOT
EVE Lithium M21 Prismatic ternary battery 3.62V 58Ah power battery cell tricycle low-speed four-wheeler power replacement
-
3.62 Nominal Voltage(V)
-
58 Nominal Capacity(Ah)
-
3000 Nominal Cycles(times)
-
860±15 Weight(g)
-
244 Energy Density(Wh/kg)
-
95.2*148.6*26.7 Size(mm)
Application Scenario
Excavators,Forklifts,Buses,Heavy trucks,Passenger cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
Long cycle life
-
High Energy Density
-
High Discharge Rate
-
Fast charging
-
High Security
-
Multi Application Scenario
-
Automated Production
-
Fully Certified
Select Option
Unfold
-
Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
M21 powers various energy applications58Ah Prismatic NCM Battery, Ideal for tricycles, electric motorcycles and speedboats.
-
M21 58Ah 3.62VHigh Reliability Long Cycle Life
Cycling up to 3000 times;Capacity Energy retention rate≥70%At(25°C 0.5C/0.5C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-

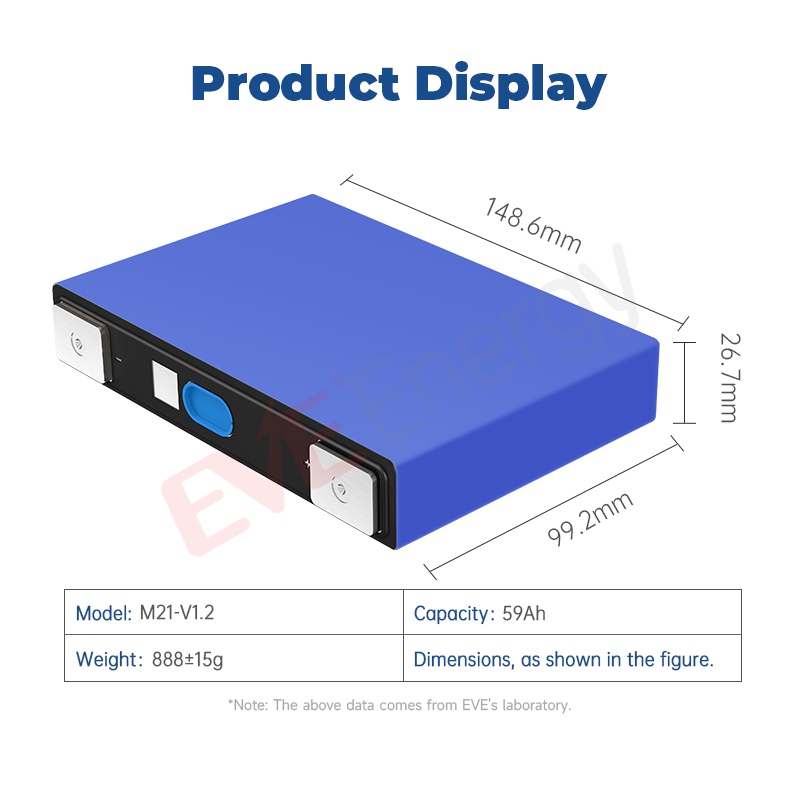

Product Appearance DescriptionFor More Information,Please Contact Online Customer Service
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge Current
Standard Discharge Current
Operating Temperature (°C) -
Application CasesForklift, Portable Power, AGV, Passenger Vehicle, Two-Wheeler, Three-Wheeler, Electric Speedboat
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life
High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System

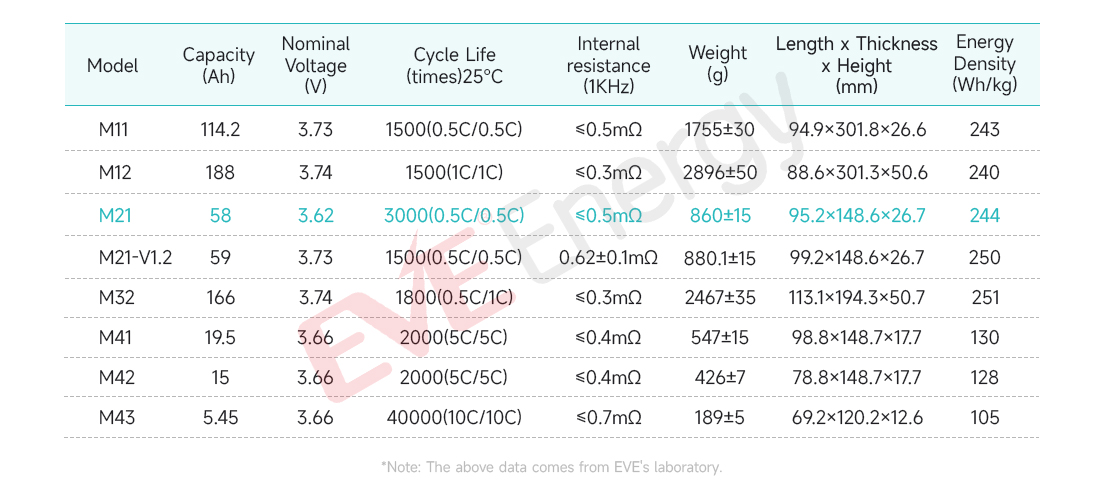

Specifications
| Model Name | M21 |
| Nominal Capacity | 58Ah |
| Nominal Voltage | 3.62V |
| Nominal Cycles(times) | 3000 |
| Initial IR | ≤0.5mΩ |
| Limit Charge Voltage | 4.25V |
| Standard charge/Discharge curren | 58A （1C） |
| Weight(g) | 860±15 |
| Length x Width x Height(mm) | 95.2*148.6*26.7 |
| Charging Temperature | -20~55℃ |
| Discharging Temperature | -30~55℃ |
Safety Instructions
Have questions?？Get help from a EVE expert
