M21-V1.2HOT

EVE Lithium M21-V1.2 Prismatic ternary battery 3.74V 59Ah power battery cell tricycle low-speed four-wheeler power replacement

  • 3.74 Nominal Voltage(V)
  • 59 Nominal Capacity(Ah)
  • 1500 Nominal Cycles(times)
  • 888.1±15 Weight(g)
  • 248 Energy Density(Wh/kg)

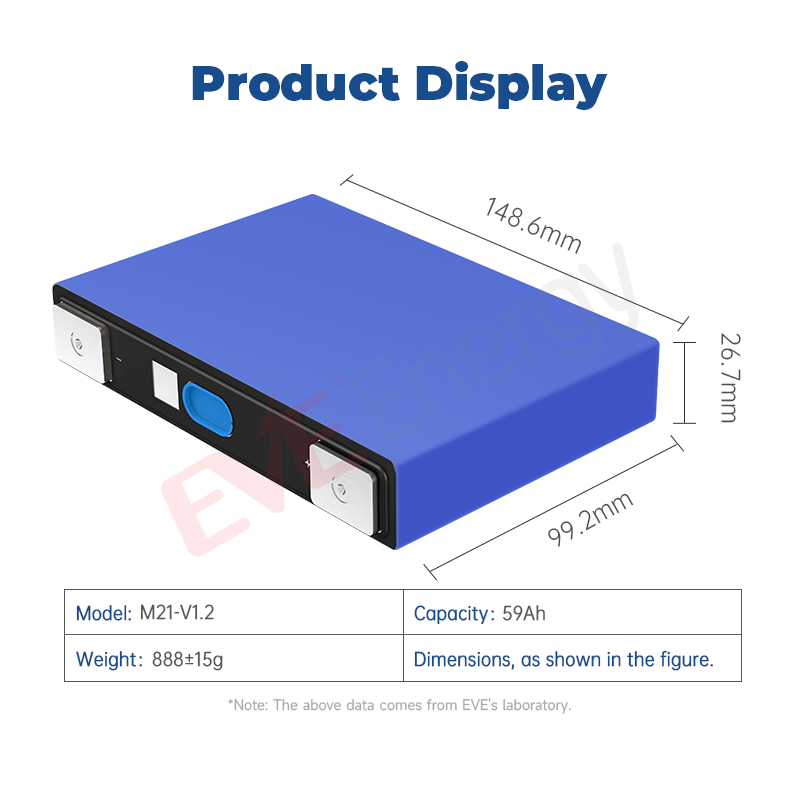

  • 26.72*148.66*99.21 Size(mm)

Application Scenario

Excavators,Forklifts,Buses,Heavy trucks,Passenger cars

Product Certification

  • b2_rz33.png
  • b2_rz09.png
  • b2_rz06.png
  • b2_rz05.png
  • b2_rz04.png
  • b2_rz03.png
  • b2_rz01.png

Origin of Shipment:

b2_guoqi02.jpg Chinese Factory Direct
  • ls_icon01.svg

    Long cycle life

  • yzicon03-623.svg

    High Energy Density

  • yzicon02-481.svg

    High Discharge Rate

  • yzicon01-791.svg

    Fast charging

  • yzicon04-976.svg

    High Security

  • yzicon08-257.svg

    Multi Application Scenario

  • yzicon07-181.svg

    Automated Production

  • yzicon06-286.svg

    Fully Certified

  • Product Selection

  • Product Introduction

  • Specifications

  • Safety Precautions

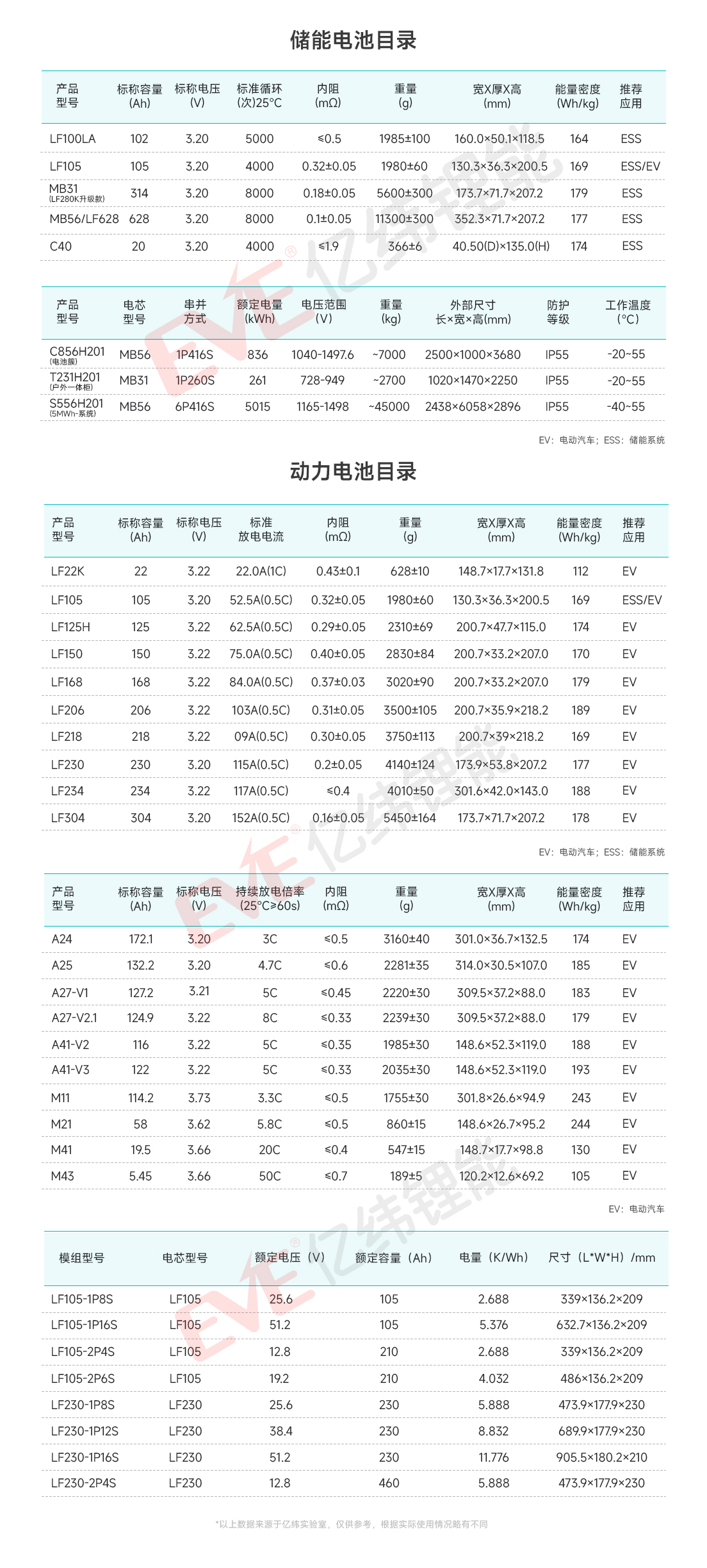

Product Selection


Product Introduction

  • M21-1--1401-541 历程.jpg 储能-动力.png
    Top 2 in China Commercial Vehicle Battery Market Share in 2024

    Serving many international first-class automobile enterprises

  • M21-V1.22--537-537 容量.jpg M21-V1.22--537-537 容量.jpg
    M21-V1.2 59Ah 3.74V

    High Reliability Long Cycle Life

    M21-V1.23--840-537 V系列应用.jpg M21-V1.23--840-537 V系列应用.jpg
    Cycling up to 1500 times;Capacity Energy retention rate≥80%

    At(25°C 0.5C/0.5C)

  • M21-4--1401-541 产品认证.jpg M21-V1.24--1401-541 产品认证.jpg
    Product Certification

    Meet UL1642,UN38.3,ATEX,CE,ISO and other certifications

  • M21-V1.2.jpg M21-V1.2.jpg

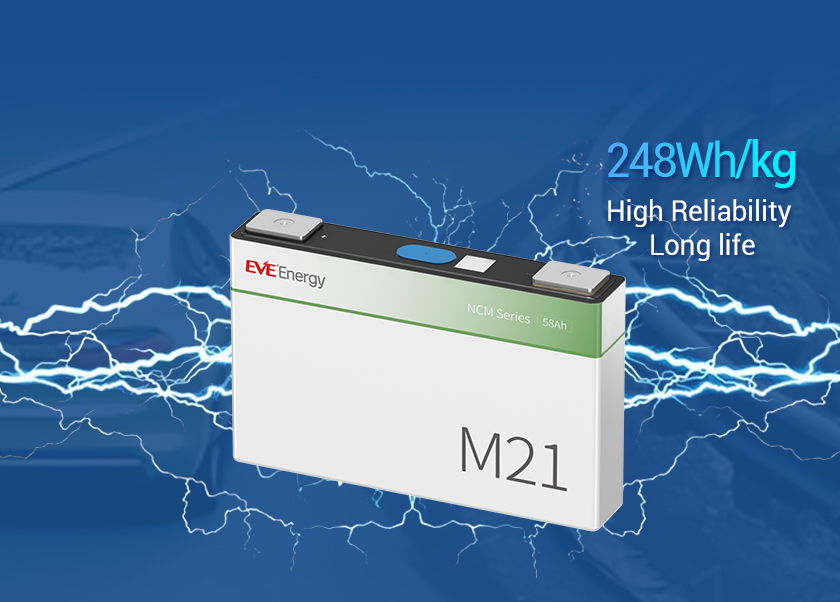

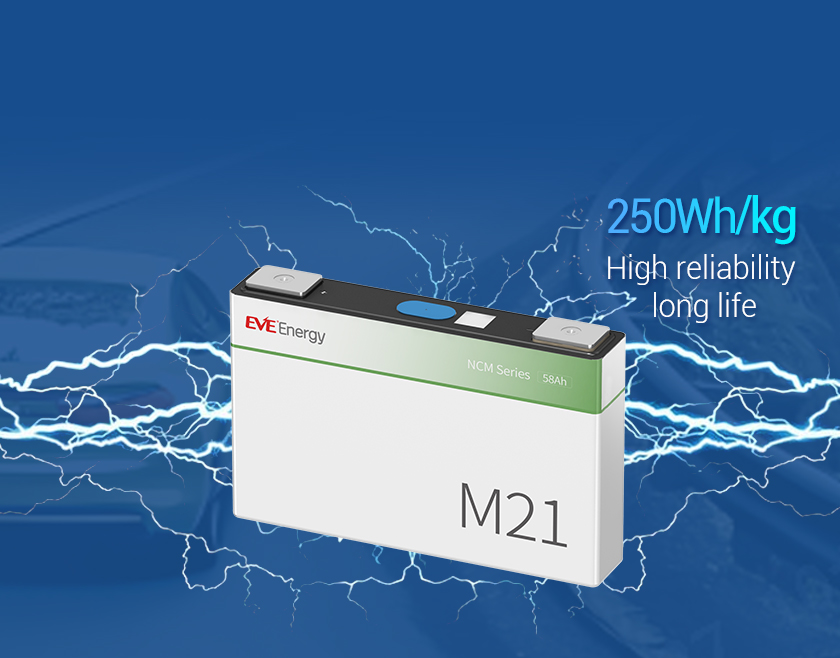

    High energy density

    NCM material system with high energy density and high power storage capacity

    6--537-537 万物互联.jpg 6--537-537 万物互联.jpg

  • 7--450-450 倍率.jpg 7--450-450 倍率.jpg
    Excellent multiplier discharge performance

    Continuous discharge multiplier(25℃≥60S)

    8--450-450 产线.jpg 8--450-450 产线.jpg
    High safety performance

    Highly reliable explosion-proof valve,anti-short-circuit structural design and high-security isolation membrane coating process,high safety performance

    9--450-450 车间.jpg 9--450-450 车间.jpg
    Intelligent manufacturing

    Continuously promote informationization and digitalization to build a"lighthouse factory"

  • 10--1401-541 解决方案.jpg E42-10--1401-541 解决方案 拷贝.jpg

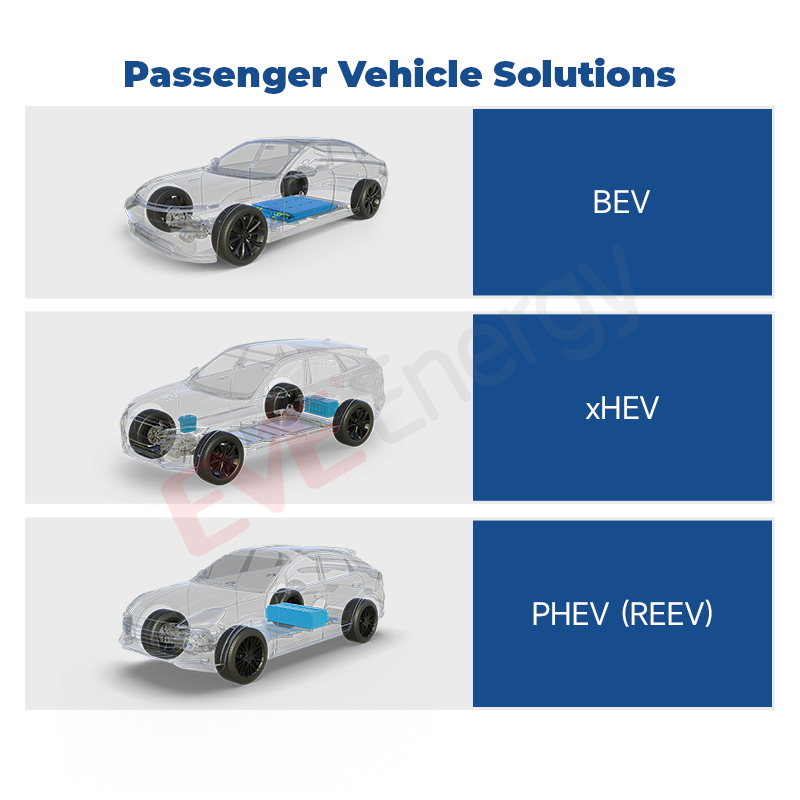

    Passenger Vehicle Solutions

    Entered the supply chain of international first-class passenger car enterprises and reached strategic cooperation with domestic new car-making forces

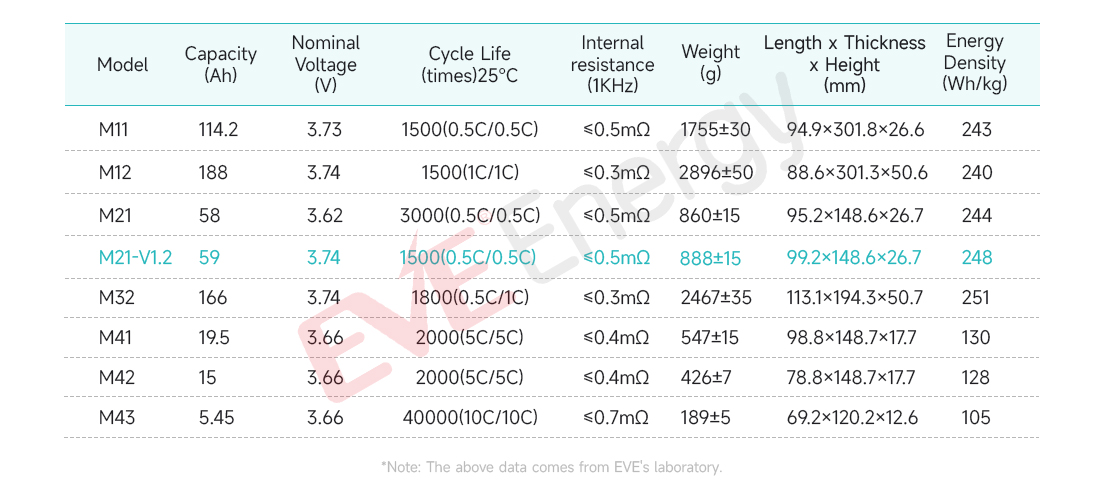

Specifications

Model NameM21
Nominal Capacity58Ah
Nominal Voltage3.62V
Nominal Cycles(times)

3000

Initial IR≤0.5mΩ
Limit Charge Voltage4.25V
Standard charge/Discharge curren

58A (1C)

Weight(g)860±15
Length x Width x Height(mm)95.2*148.6*26.7
Charging Temperature-20~55℃
Discharging Temperature-30~55℃
