CR2016

EVE CR2016 Li-MnO2 Battery 3V 80mAh Lithium Primary Battery Car Key Remote Control Small Electronic Scale Weight Scale

  • 3 Nominal Voltage(V)
  • 80 Nominal Capacity(mAh)
  • 0.1 Standard current(mA)
  • -20~+70℃ Operating Temperature (°C)
  • 20.0×1.6 Sizes(mm)
  • 0.1 Standard discharge current(mA)

Application Scenario

RFID, memory devices, remote controls, thermometers

Product Certification

  • atex.png
  • b2_rz35.png
  • b2_rz09.png
  • b2_rz06.png
  • b2_rz04.png

Origin of Shipment:

b2_guoqi02.jpg Chinese Factory Direct
  • yzicon05-412.svg

    Long Service Life

  • yzicon08-257.svg

    Multi Application Scenario

  • ly_icon05.svg

    Comprehensive Solutions

  • ly_icon06.svg

    Low Self-discharge Rate

  • ly_icon07.svg

    High Stability Voltage

  • ly_icon01.svg

    High Energy Density

  • ly_icon02.svg

    Ultra Wide Temperature Applications

  • fx_icon08.svg

    Fully Certified

  • Product Selection

  • Product Introduction

  • Specifications

  • Safety Precautions

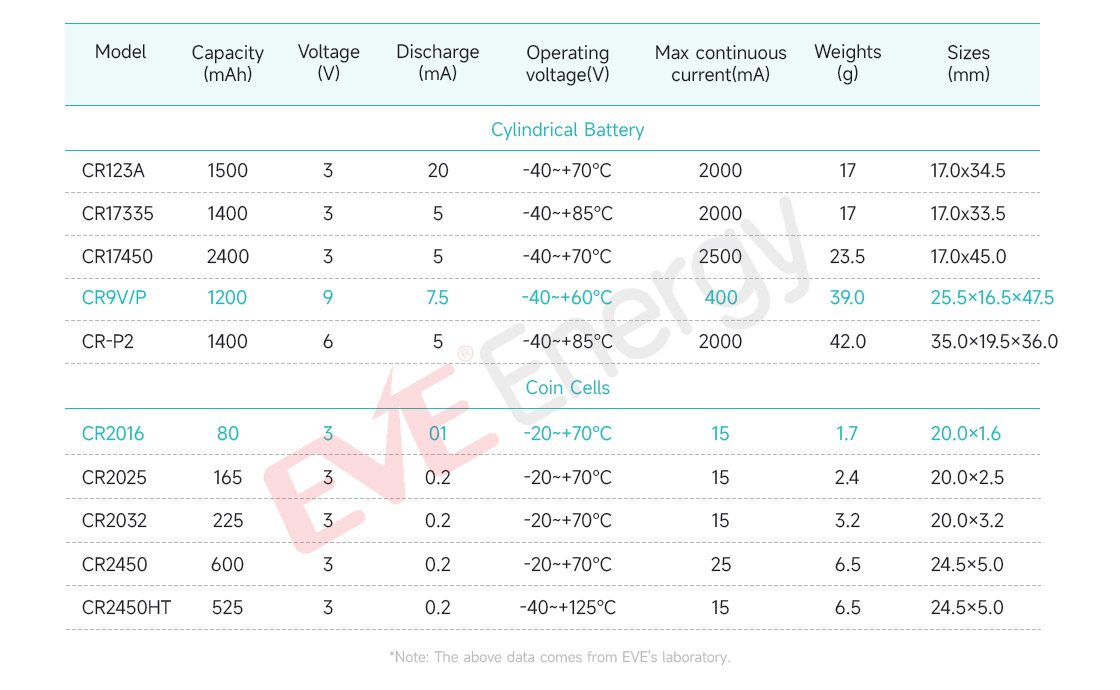

Product Selection


Product Introduction

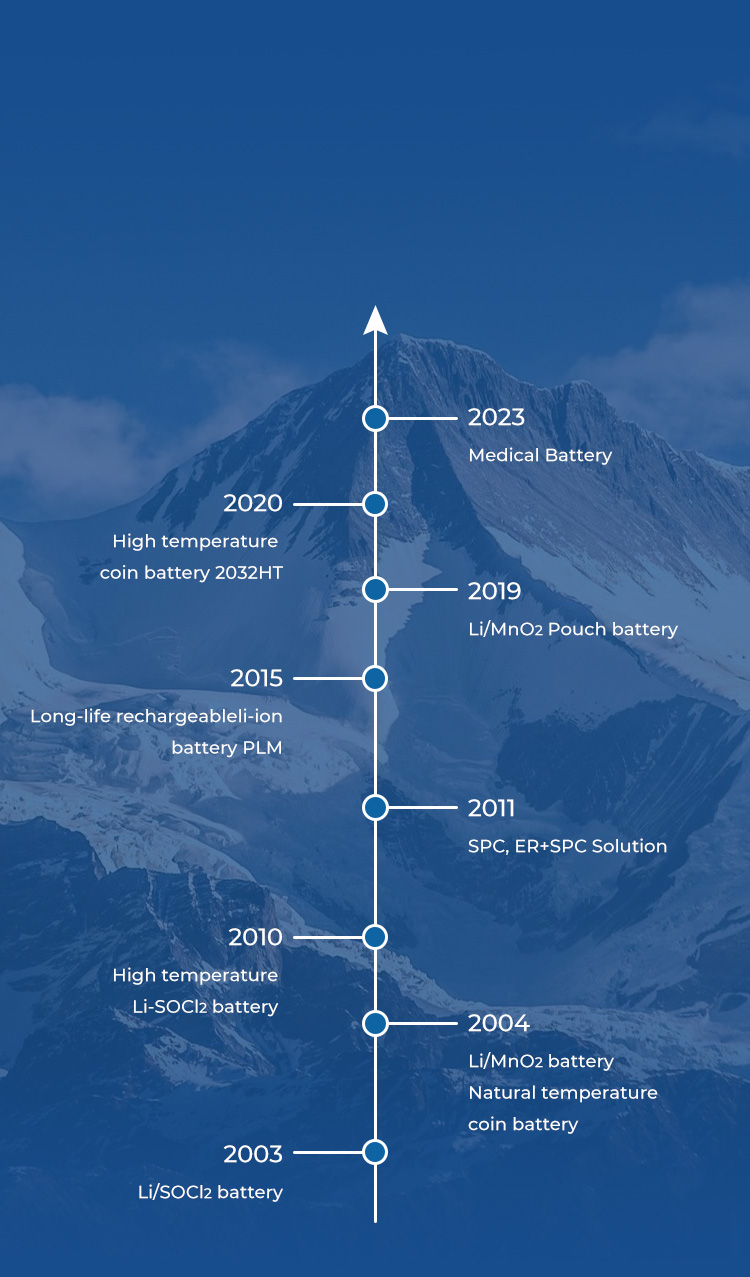

  • CR2016-1--1401-541 历程.jpg 锂原.jpg
    World-leading, Sales and export volume ranks No. 1 for 8yrs

    EVE has supplied over 3.5 billion lithium primary batteries to the world

  • CR2016-2--537-537 容量.jpg CR2016-2--537-537 容量.jpg
    CR2016 3V 80mAh

    High Pulse,Long Lifespan

    3--840-537 定制.jpg 3--840-537 定制.jpg
    Product Certification

    Meet UL1642, UN38.3, ATEX, CE, ISO and other certificates

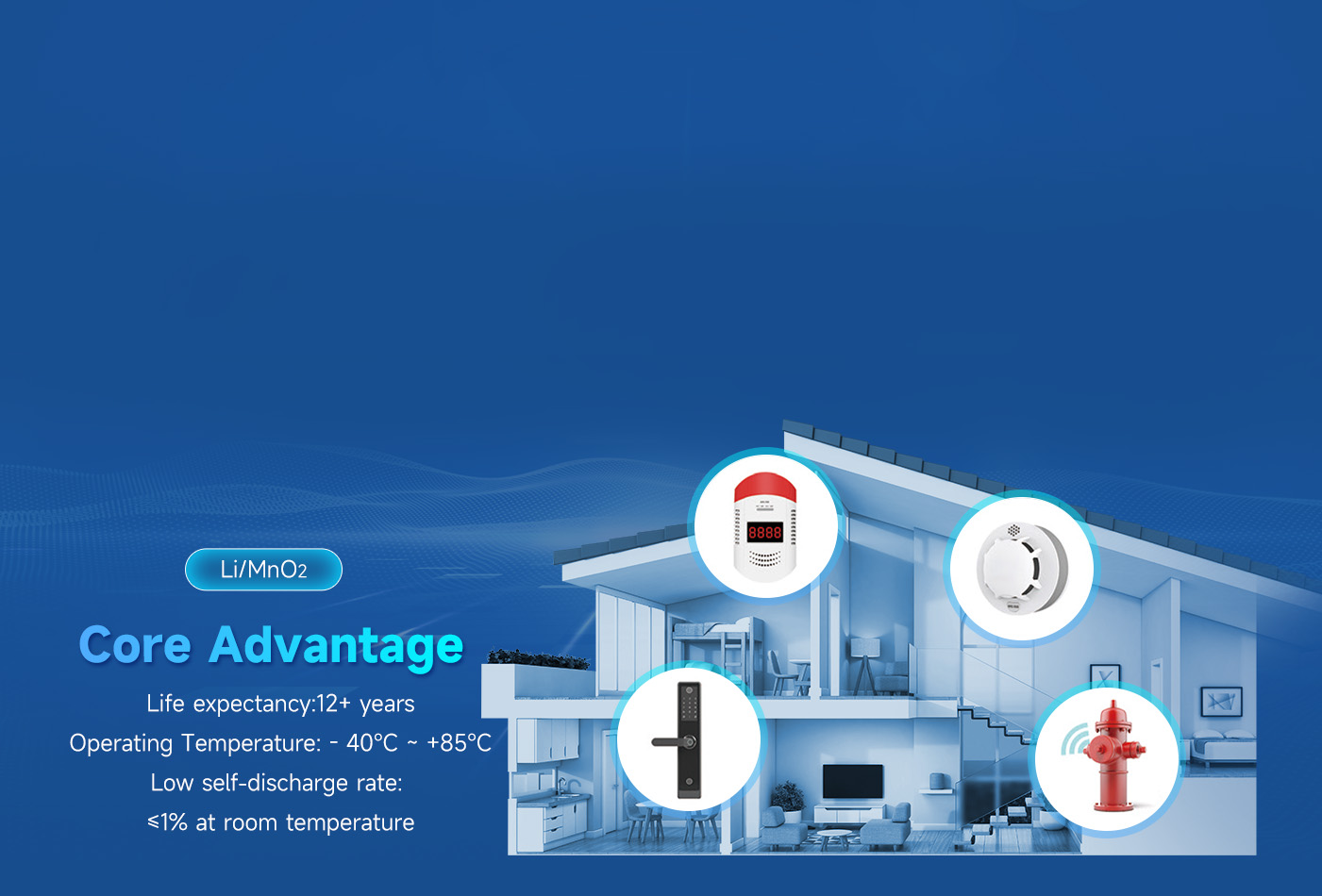

  • CR2016-4--1401-541 解决方案.jpg 无线端-4--1401-541 解决方案.jpg
    Intelligent Security Power Solutions

    12 years + long life, -40℃~85℃ ultra-wide temperature range

  • CR2016-5--1401-541 型号推荐.jpg 无线端-5--1401-541 型号推荐.jpg

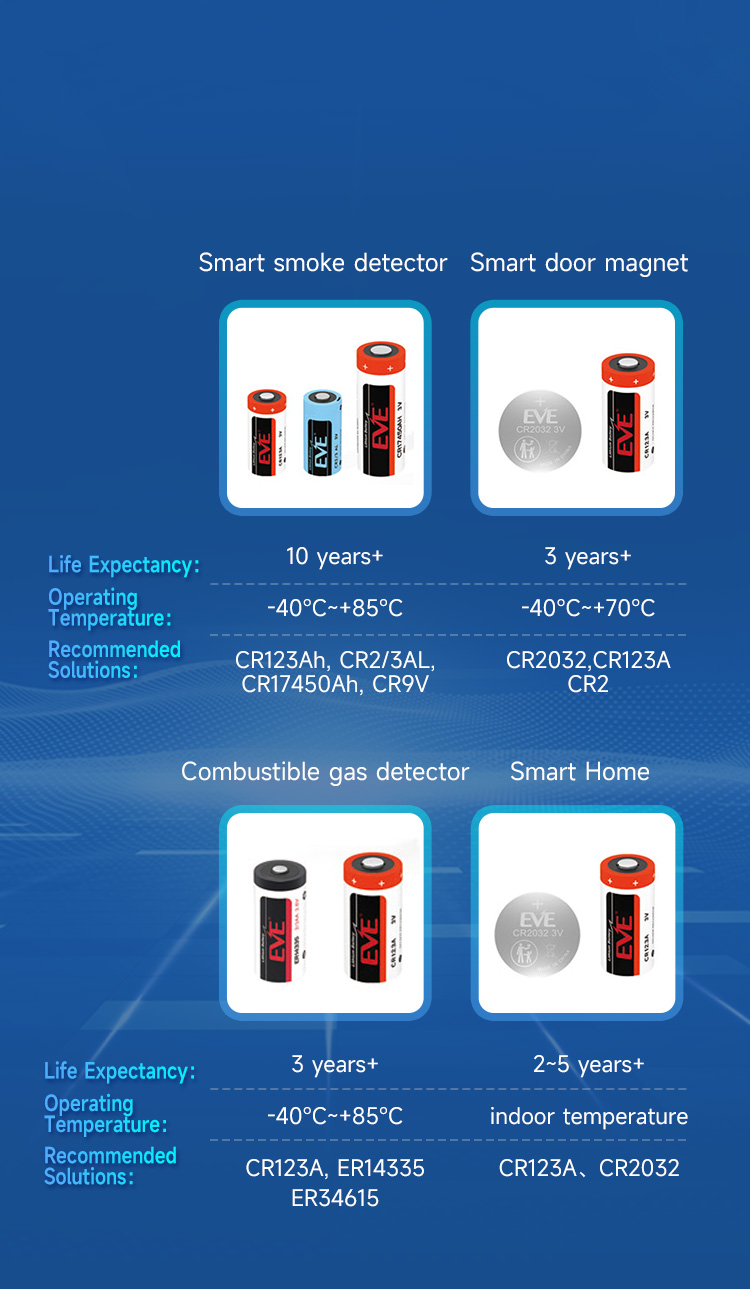

    Recommended Solutions

    Intelligent Smoke Sensor, Intelligent Door Lock, Combustible Gas Detection, Intelligent Home Appliance and other programs

  • CR2016-6--840-537 方案优势.jpg 无线端-6--840-537 方案优势.jpg
    Intelligent Security Power Solutions

    Over 13 years of application verification, provide safe and reliable power supply for security equipment

    CR2016-7--537-537 文案.jpg CR2016-7--537-537 文案.jpg

  • 8--450-450 长寿命.jpg 8--450-450 长寿命.jpg
    Long lifespan

    Extremely long reliability life expectancy

    CR2016-9--450-450 电压.jpg CR2016-9--450-450 电压.jpg

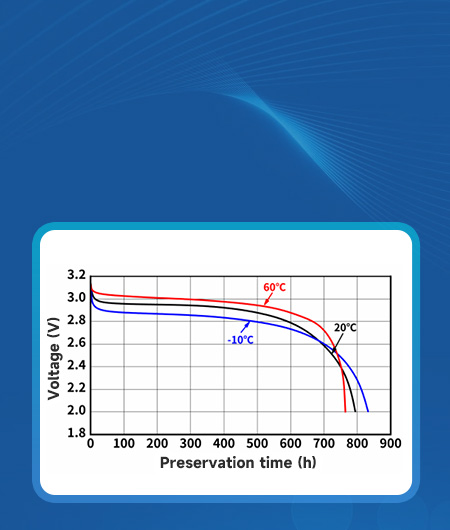

    Warm load discharge curve

    30KΩ Continuous Load Discharge Curve for Different Temperature Conditions

    CR2016-10--450-450 低自放电率.jpg CR2016-10--450-450 低自放电率.jpg

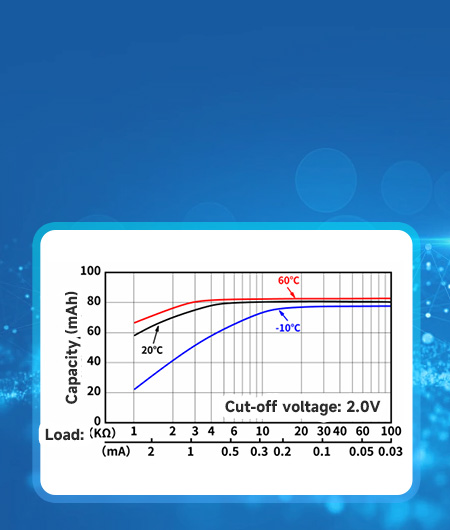

    Temperature-loaded capacity graph

    Capacity curves at different temperatures and load conditions

Specifications

ModelCR2016
Nominal voltage3V
Nominal capacity80mAh (30KΩ discharged to 2.0V at 20±3℃)
Maximum Continuous Discharge Current3mA
Sizes(mm)20.0*1.6
Weight(Max)1.8g
Recommended storage conditionsTemperature: 5℃~35℃, Humidity: less than 70%RH
Application scenarioSmart Metering, Smart Life, Automotive Electronics, Internet of Things, Smart Security
Aperating temperature-20~70℃

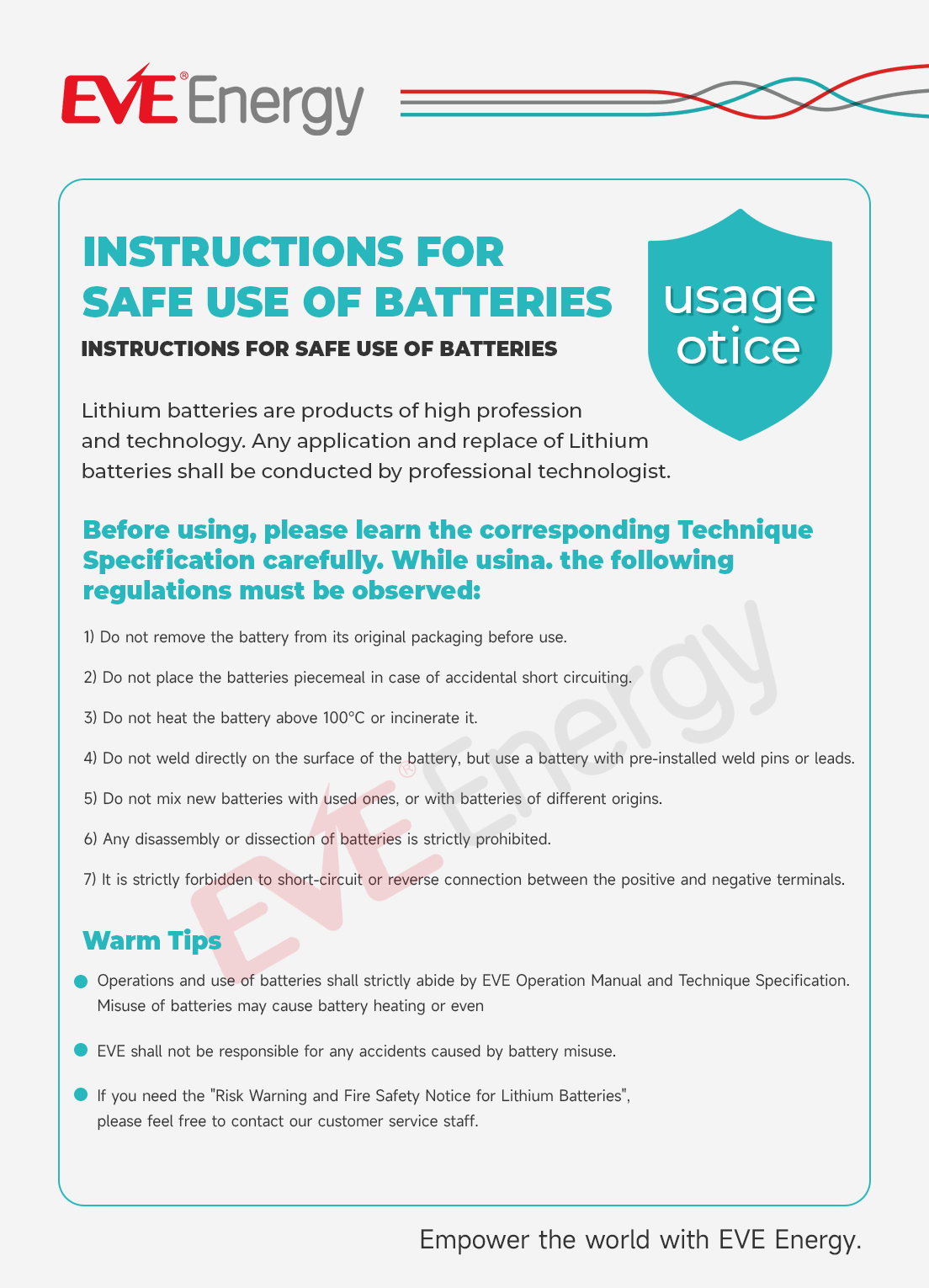

Safety Instructions
