ER14335
EVE ER14335 Li-SOCl2 battery 3.6V 1650mAh Smart Water Meter,Electricity Meter,Industrial Control Equipment
-
3.6 Nominal Voltage（V）
-
1650 Nominal Capacity（mAh)
-
35 Maximum Continuous Current (mA)
-
70 Maximum Pulse Current (mA)
-
12 Weight (g)
-
-55~+85℃ Operating Temperature (℃)
Application Scenario
Smart electricity meter, smart water meter, smart heat meter, smart gas meter
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
Long Service Life
-
High Security
-
Low Self-discharge Rate
-
High Energy Density
-
Ultra Wide Temperature Applications
-
Standard Size
-
Safety
-
Product Introduction
-
Product Selection
-
Specifications
-
Safety Precautions
Product Introduction
-
World-leading, Sales and export volume ranks No. 1 for 8yrsNational Manufacturing Champion Products
-
ER14335 3.6V 1650Ahhigh-capacity,long lifespan

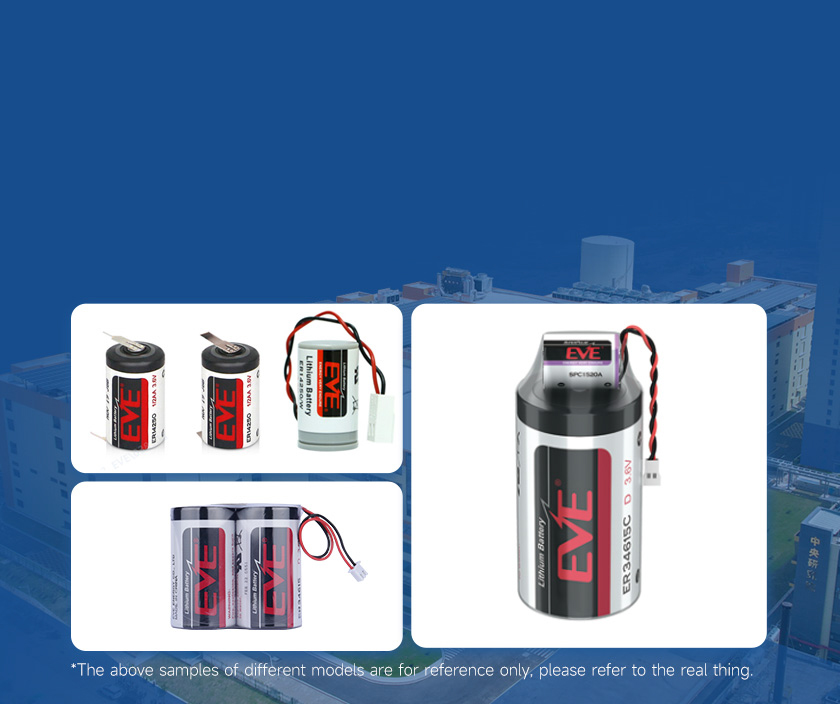

Custom processing and sample design available upon requestCustomize battery cells with series/parallel configurations,solder tabs,or plug leads
-
Provide integrated solutions for smart meters such as water meters,electricity meters,gas meters,heat meters,sensors,etc20 years + long life,-55℃~85℃ ultra-wide temperature range,low self-discharge rate
-

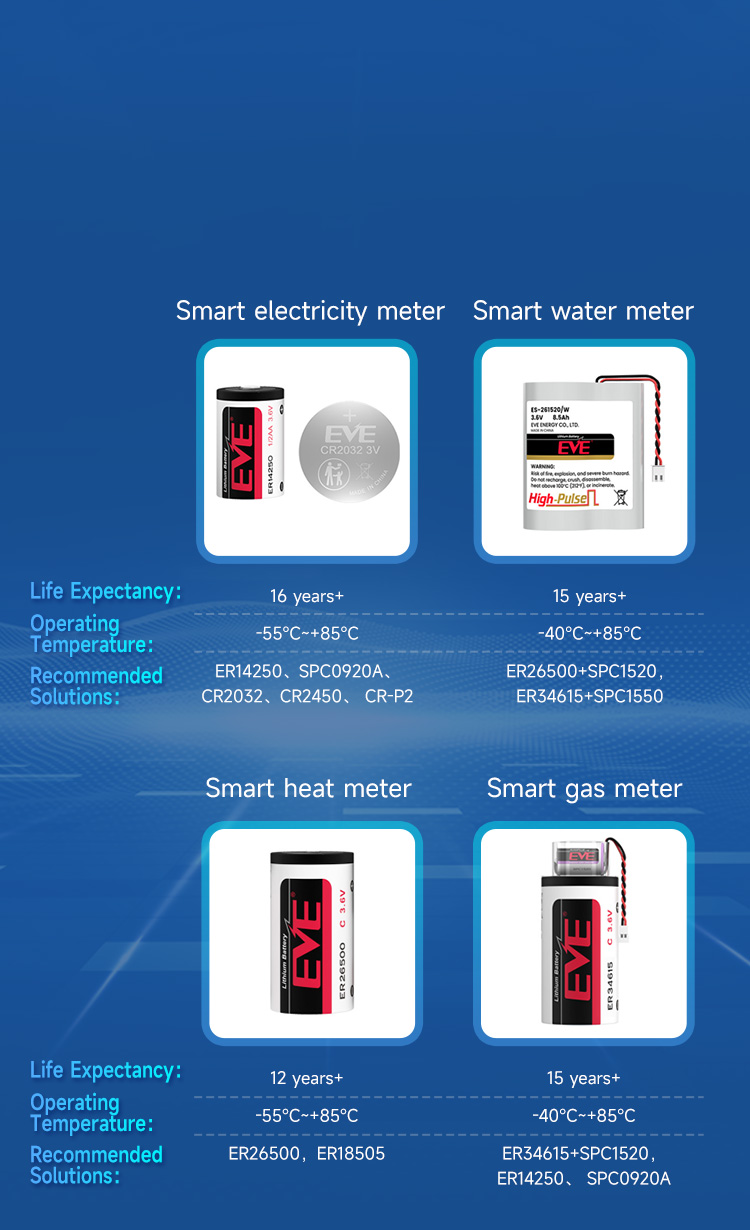

Recommended SolutionsSmart Electricity Meter,Smart Water Meter,Smart Heat Meter,Smart Gas Meter,Sensor
-
Advantage of ER+SPC solutions: no voltage hysteresis
-
Long lifespanExtremely long reliability life expectancy
High Stability VoltageNominal voltage of 3.6V with excellent operational voltage stability
Low self-discharge rateAt 20°C ambient temperature, the annual self-discharge rate is ≤1%
Product Selection
Specifications
| Nominal Voltage | 3.6V |
| Nominal Capacity | 1650mAh |
| Application | Smart electricity meter, smart water meter, smart heat meter, smart gas meter |
| Model | ER14335 |
| Weight | 12g |
| Siz | D: 14.5mm Max. H: 33.5mm Max |
| Volume | 5.5cm³ |
| Operating Temperature | -55~+85℃ |
Safety Instructions
