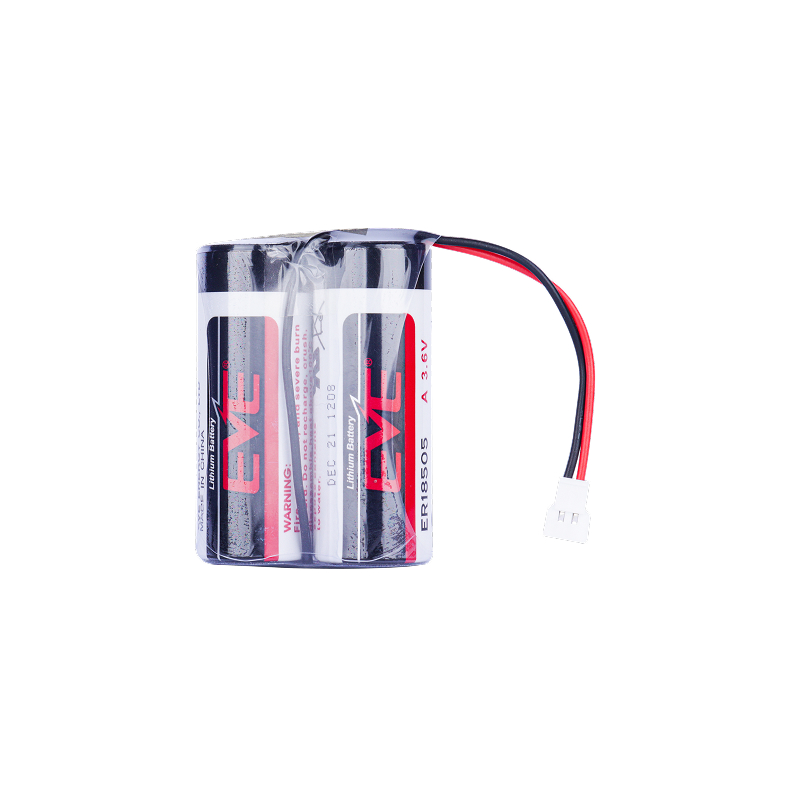

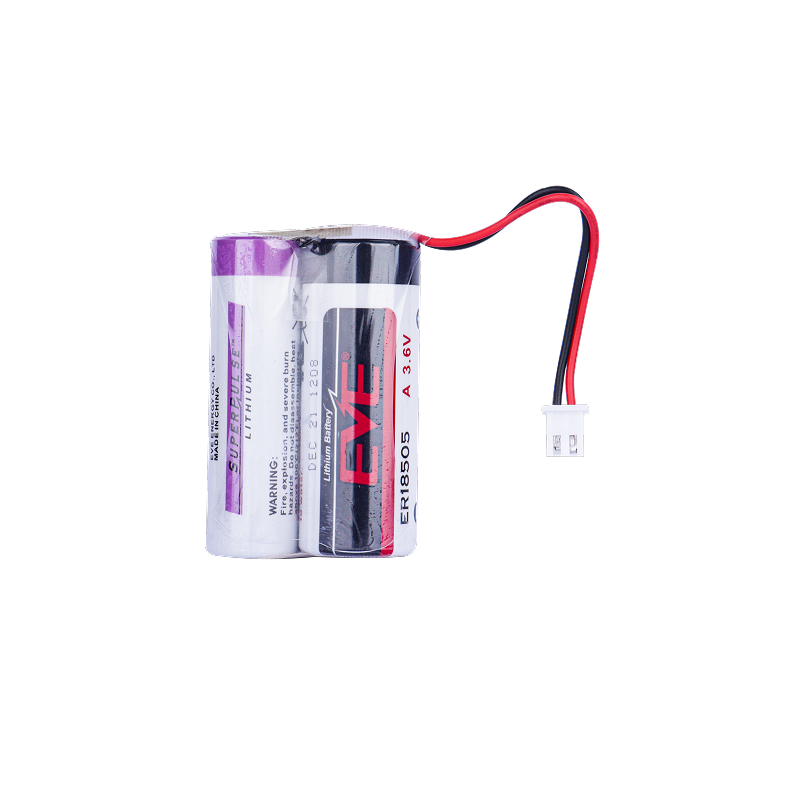

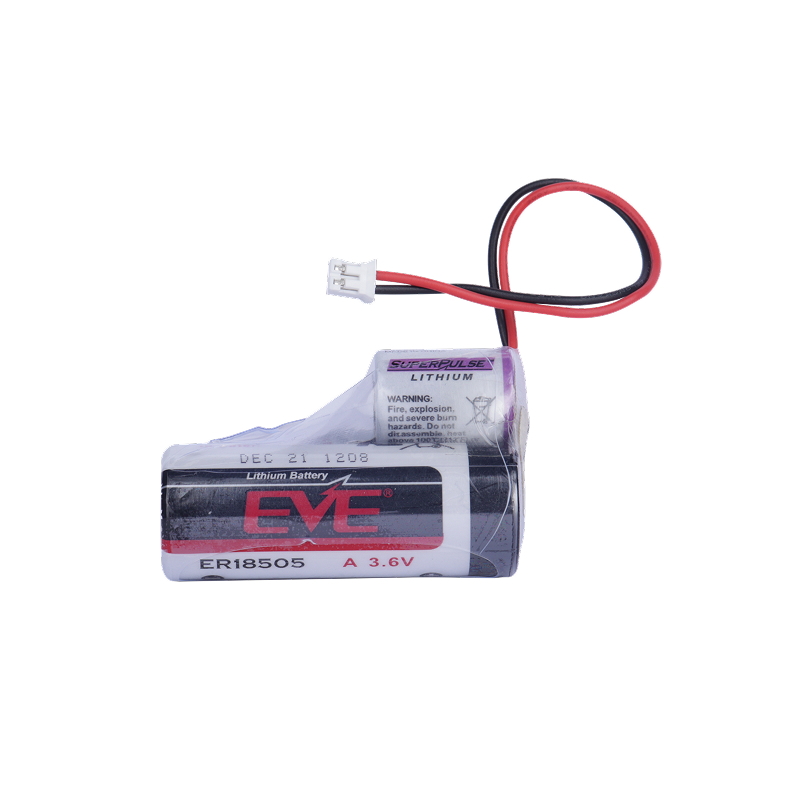

ER18505+ Leaded Plugs
EVE ER18505+ Leaded Plugs Li-SOCl2 battery 3.6V 4000mAh Electricity meters, water meters, measuring devices
-
3.6 Nominal Voltage（V）
-
4000 Nominal Capacity（mAh）
-
130 Maximum continuous current (mA)
-
180 Maximum pulse current (mA)
-
28 Weight (g)
-
-55~+85℃ temperature (℃)
Application Scenario
Smart electricity meter, smart water meter, smart heat meter, smart gas meter
Product Certification
Origin of Shipment：
Chinese Factory Direct -
Eco-friendly
-
Full life cycle
-
Wide temperature
-
Long lifespan
-
High pulse
-
Low self-discharge rate
-
High security
-
High capacity
-

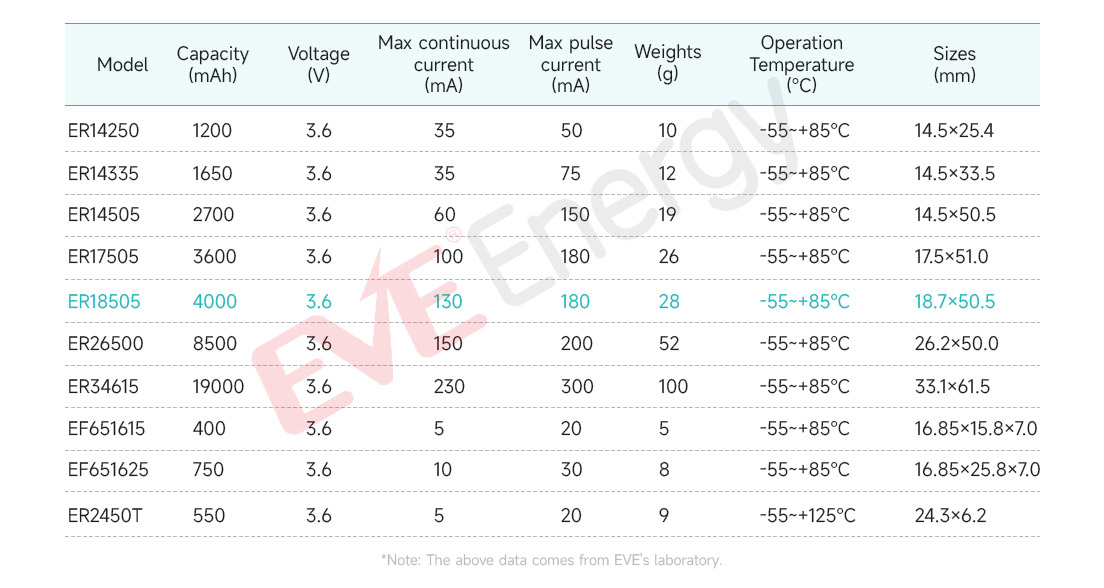

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
World-leading, Sales and export volume ranks No. 1 for 8yrsEVE has supplied over 3.5 billion lithium primary batteries to the world
-

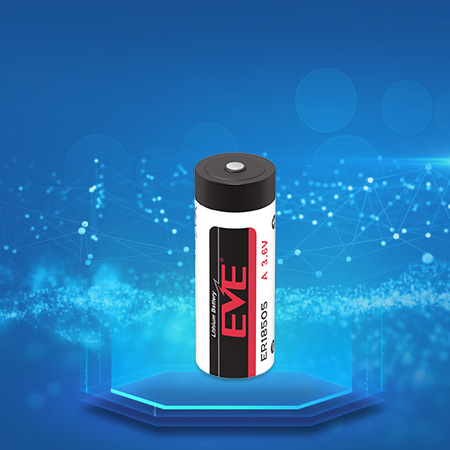

ER18505 3.6V 4000mAhhigh-capacity ,long lifespan

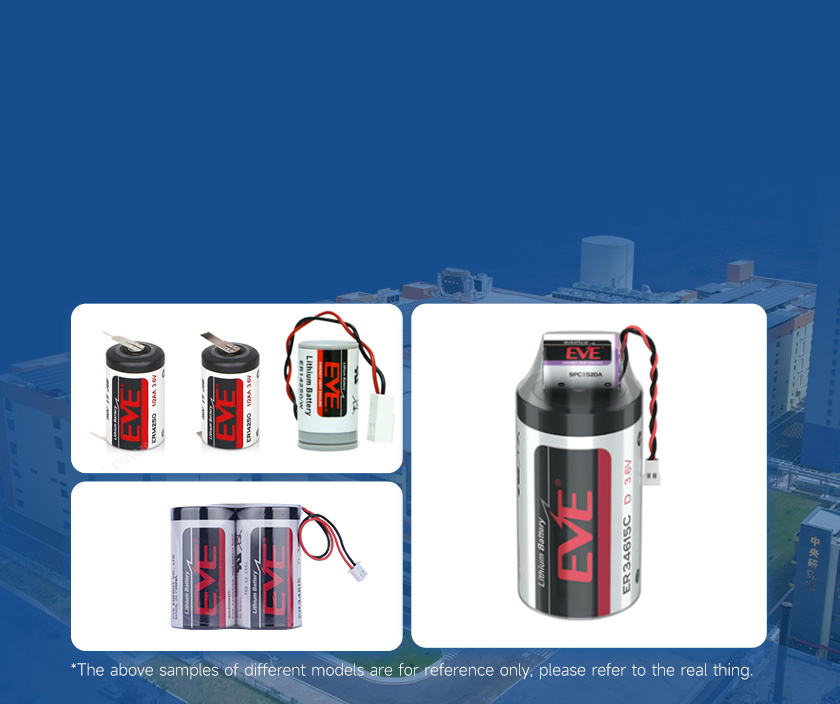

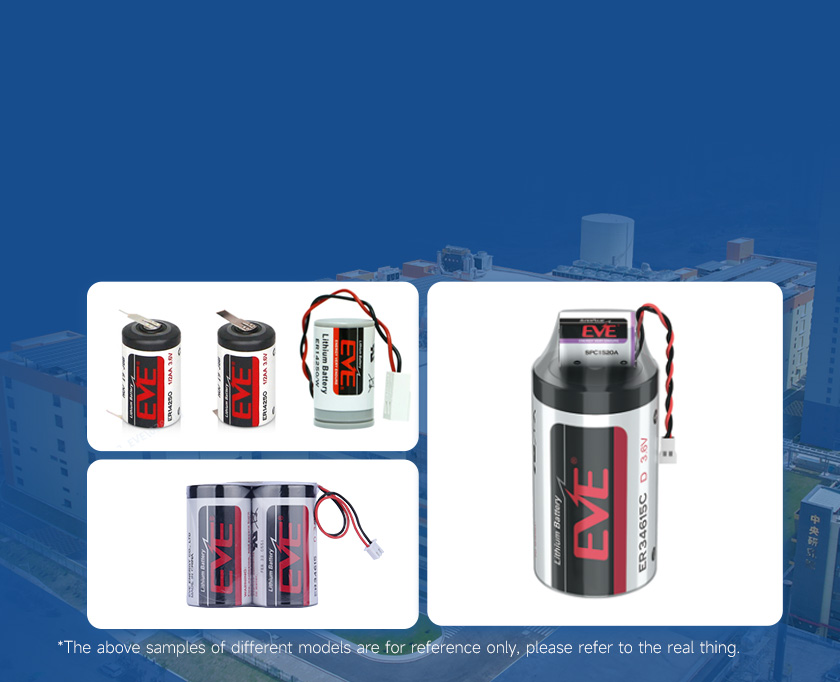

Custom processing and sample design available upon requestCustomize battery cells with series/parallel configurations, solder tabs, or plug leads
-
Provide integrated solutions for smart meters such as water meters, electricity meters, gas meters, heat meters, sensors, etc20 years + long life, -55℃~85℃ ultra-wide temperature range, low self-discharge rate
-

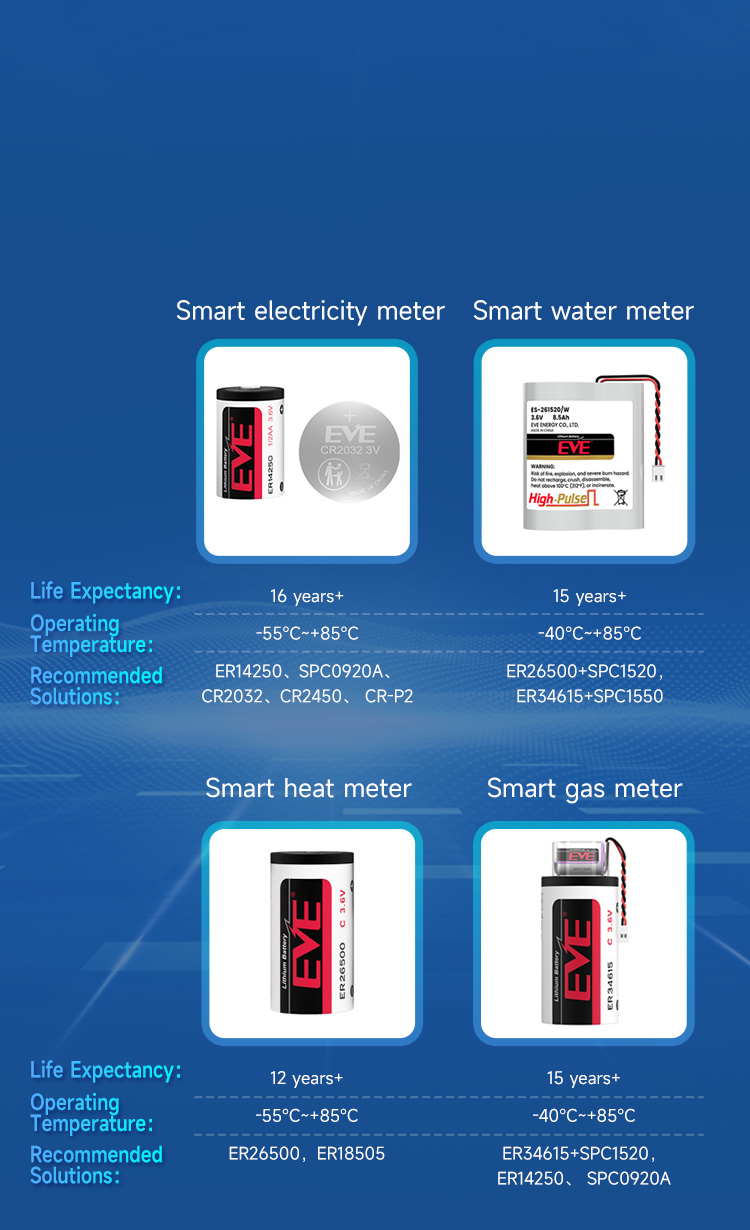

Comprehensive cylindrical battery solutionsSmart Electricity Meter, Smart Water Meter, Smart Heat Meter, Smart Gas Meter, Sensor
-

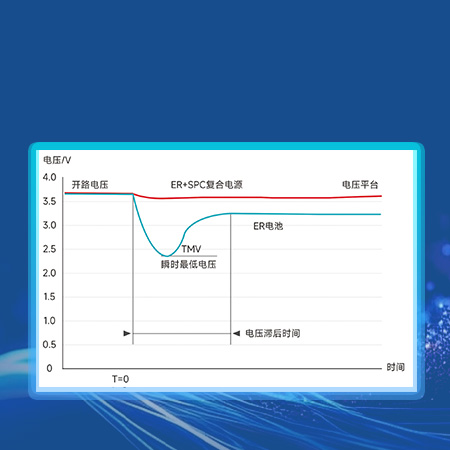

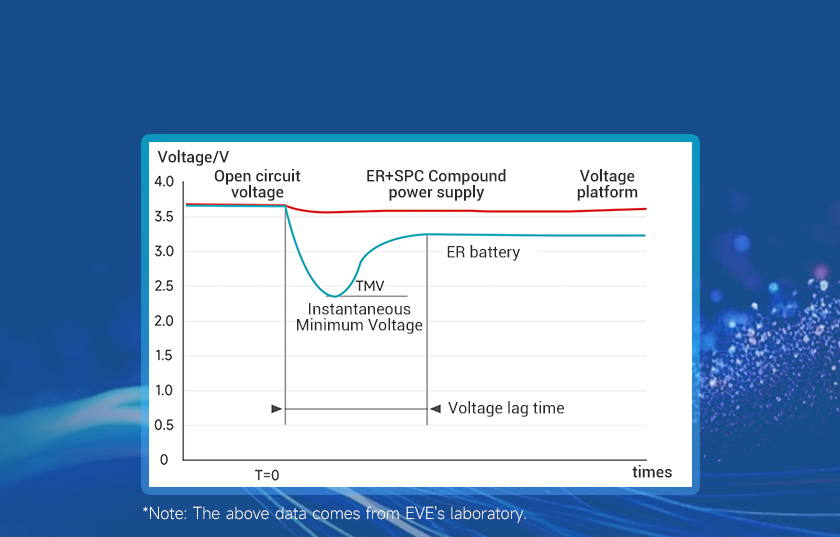

Advantage of ER+SPC solutions: no voltage hysteresis
-
Long lifespanExtremely long reliability life expectancy
High Stability VoltageNominal voltage of 3.6V with excellent operational voltage stability

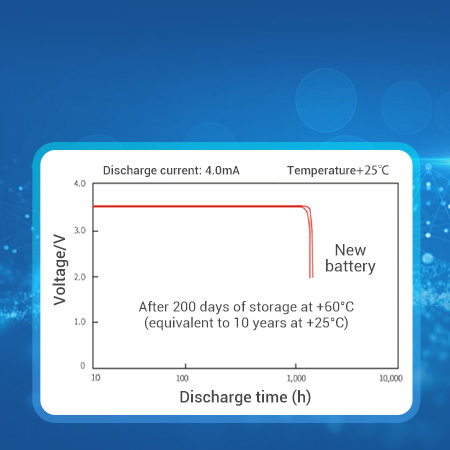

Low self-discharge rateAt 20°C ambient temperature, the annual self-discharge rate is ≤1%
Specifications
| Model | ER18505+ Leaded Plugs |
| Type | Li-SOCl2 battery |
| Combinatorial approach | plug |
| Nominal voltage | 3.6V |
| Nominal capacity | 4000mAh |
| Scope of use | Electricity, water and gas meter measuring instruments |
| Weights | 28g |
| Storage temperature | ≤30℃ |
| Product Size | 18.5X50.5mm |

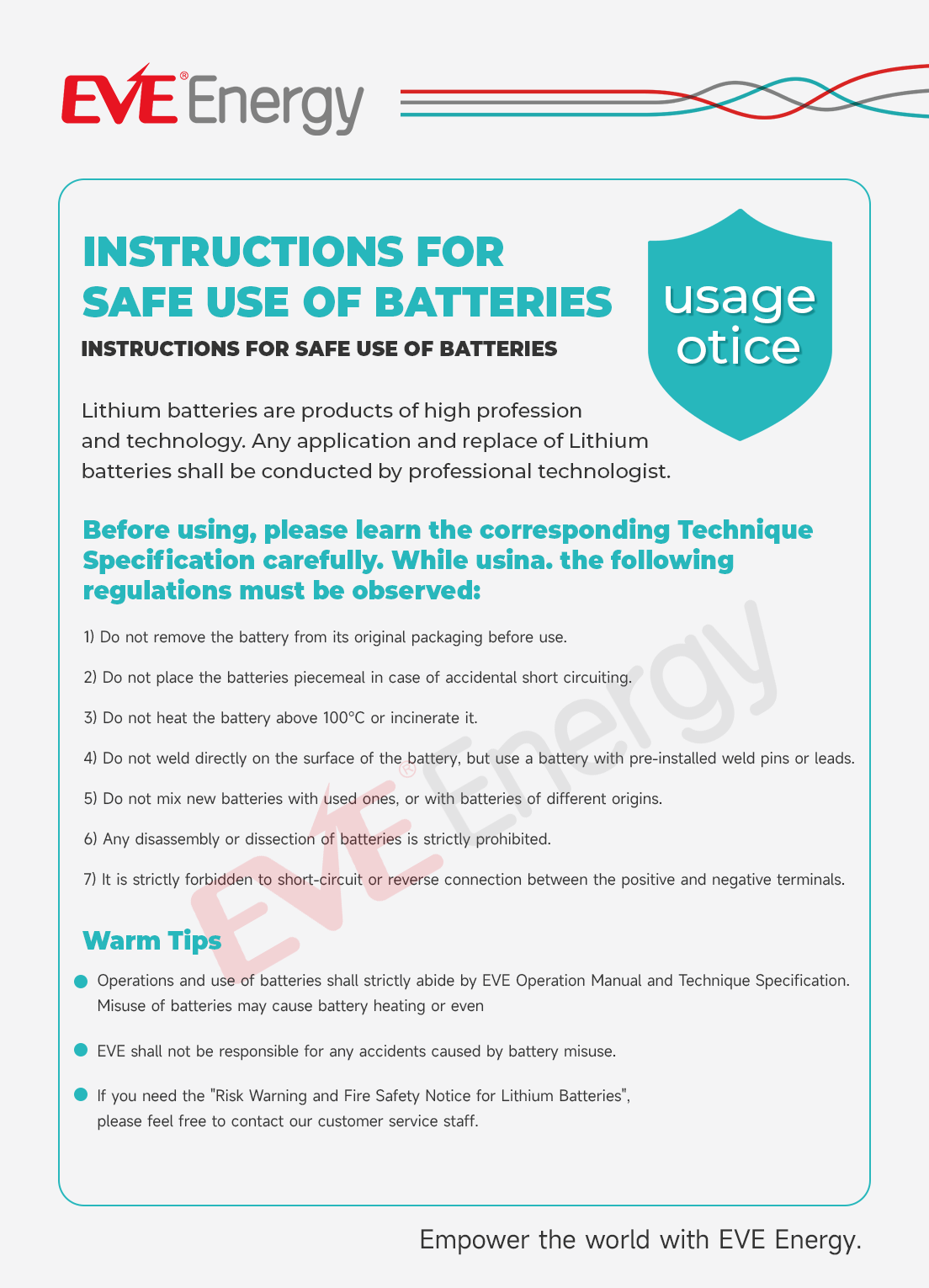

Safety Instructions
Have questions?？Get help from a EVE expert
