Photos
EF651625
EVE EF651615 Li-SOCl2 battery 3.6V 400mAh Smart Metering, IoT Devices
-
3.6 Nominal Voltage（V）
-
750 Nominal Capacity（mAh)
-
10 Maximum Continuous Current (mA)
-
30 Maximum Pulse Current (mA)
-
8 Weight (g)
-
-55~+85℃ Operating Temperature (℃)
Application Scenario
Smart Electricity Meter, Smart Water Meter, Smart Heat Meter, Smart Gas Meter, Tracking and Positioning
Product Certification
Origin of Shipment：
Chinese Factory Direct -
Eco-friendly
-
Full life cycle
-
Wide temperature
-
Long lifespan
-
High pulse
-
Low self-discharge rate
-
High security
-
High capacity
-
Product Introduction
-
Product Selection
-
Specifications
-
Safety Precautions
Product Introduction
-
World-leading, Sales and export volume ranks No. 1 for 8yrsNational Manufacturing Champion Products
-
EF651625 3.6V 750mAhhigh-capacity ,long lifespan

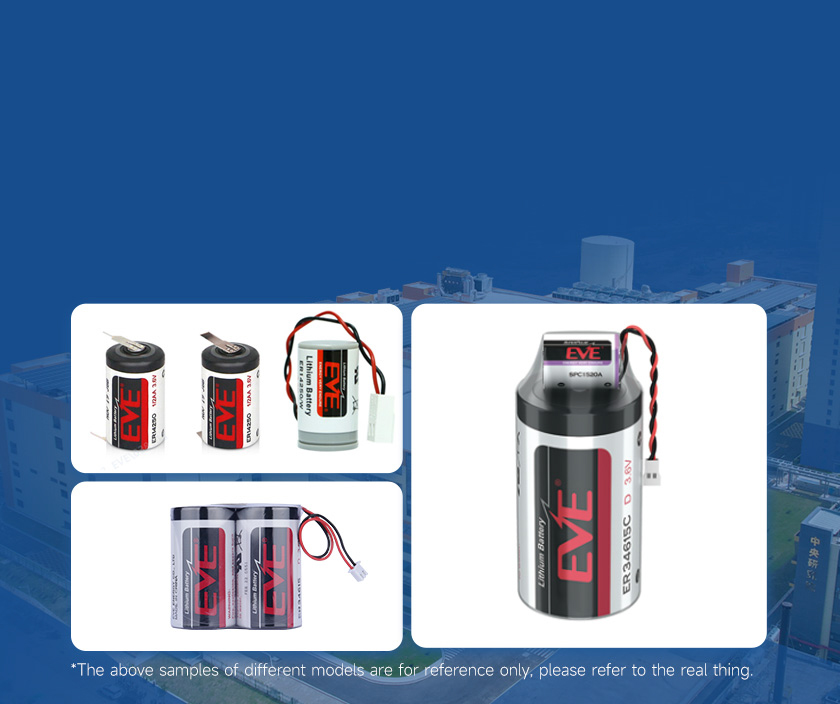

Custom processing and sample design available upon requestCustomize battery cells with series/parallel configurations, solder tabs, or plug leads
-
Provide integrated solutions for smart meters such as water meters, electricity meters, gas meters, heat meters, sensors, etc20 years + long life, -55℃~85℃ ultra-wide temperature range, low self-discharge rate
-
Comprehensive cylindrical battery solutionsSmart Electricity Meter, Smart Water Meter, Smart Heat Meter, Smart Gas Meter, Sensor
-

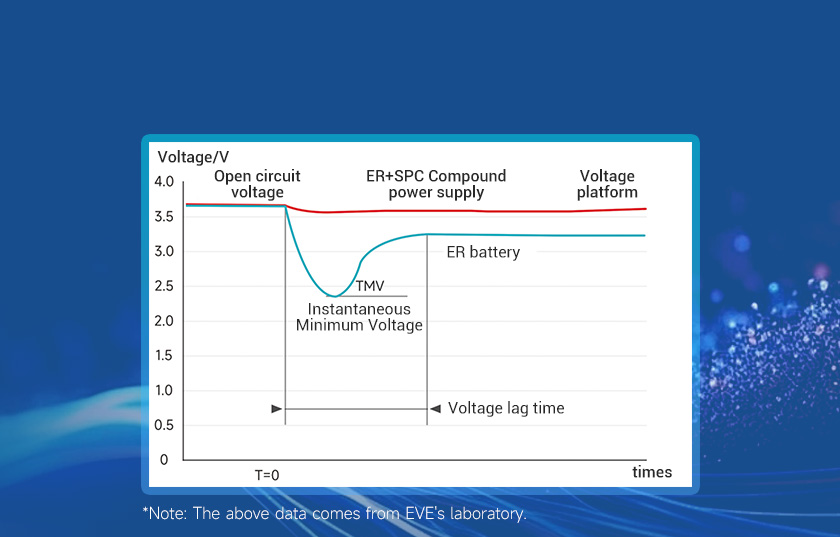

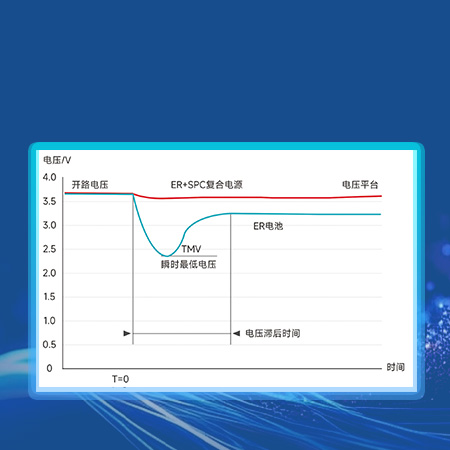

Advantage of ER+SPC solutions: no voltage hysteresis
-
Long lifespanExtremely long reliability life expectancy

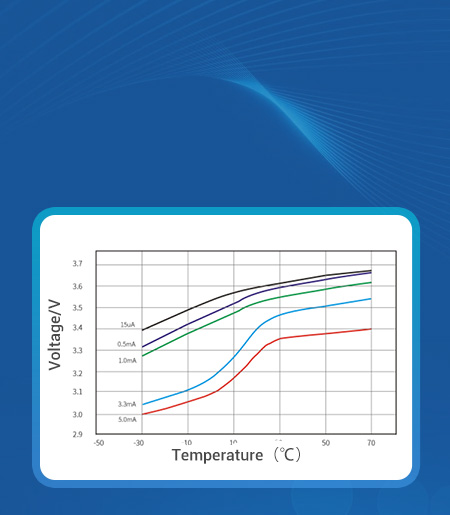

High Stability VoltageNominal voltage of 3.6V with excellent operational voltage stability

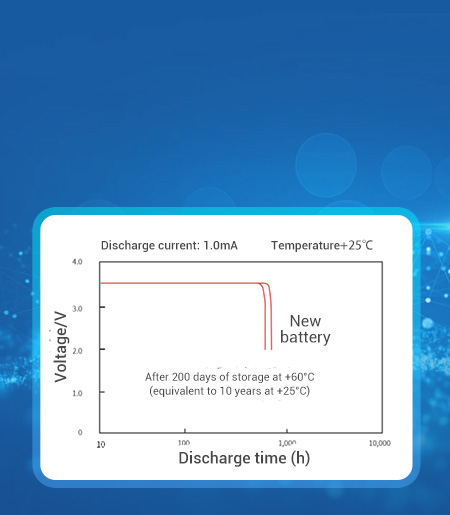

Low self-discharge rateAt 20°C ambient temperature, the annual self-discharge rate is ≤1%

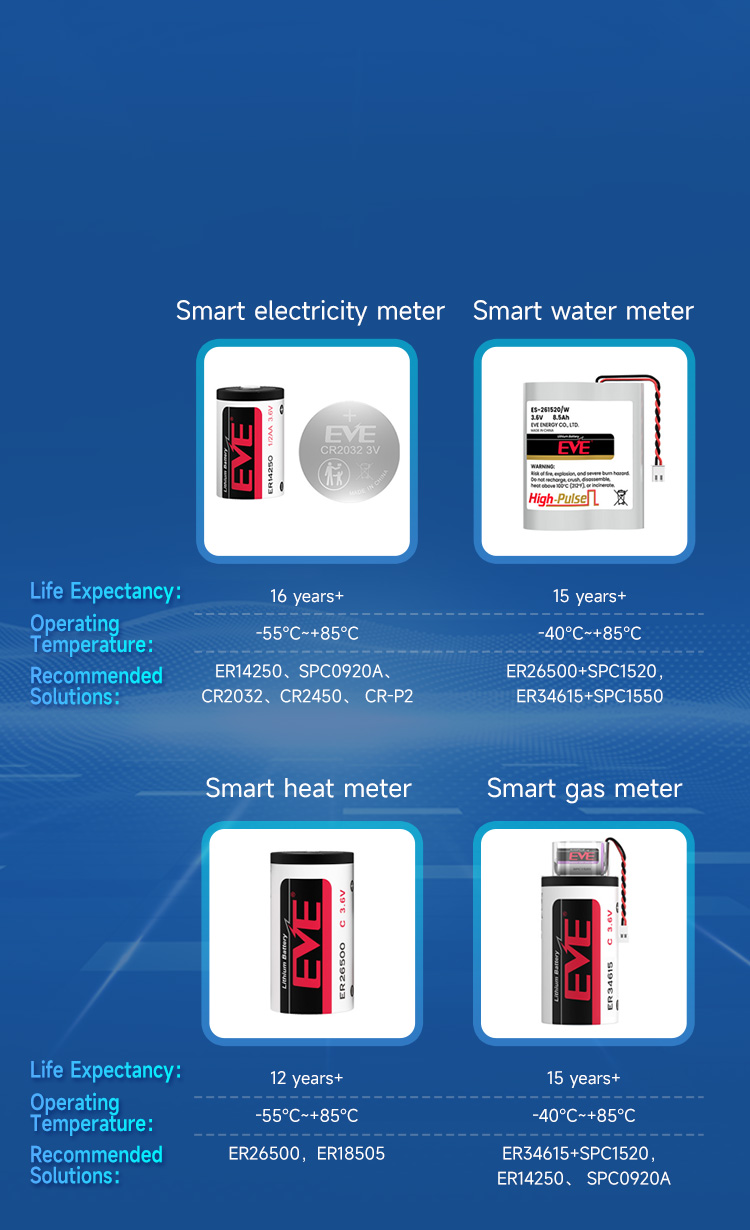

Product Selection
Specifications
| Nominal voltage | 3.6V |
| Nominal capacity | 750mAh |
| Model | EF651625 |
| Operating temperature | -60~+85℃ |
| Sizes | Length 16.8mm, Width 6.8mm, Height 25.8mm |
| Weight (g) | 8g |
| Volumetric（cm³） | 4.3cm3 |
Safety Instructions
Have questions?？Get help from a EVE expert
