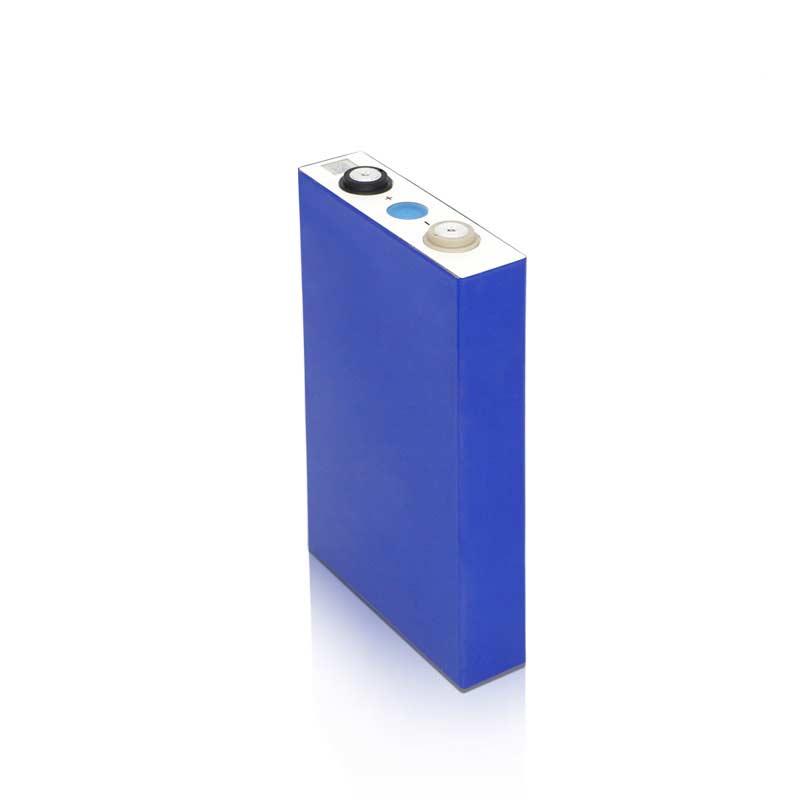

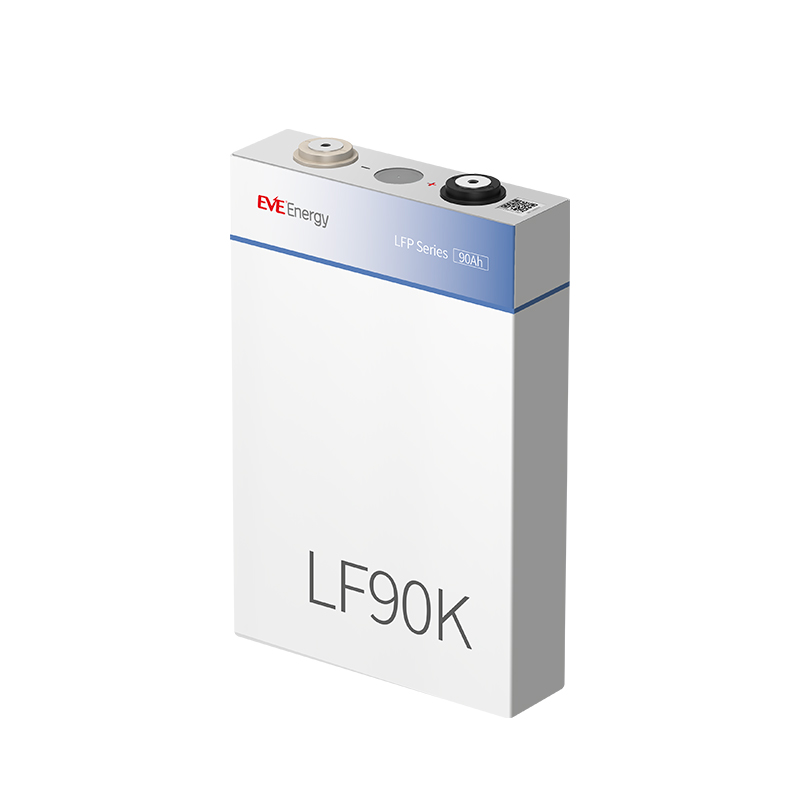

LF90K

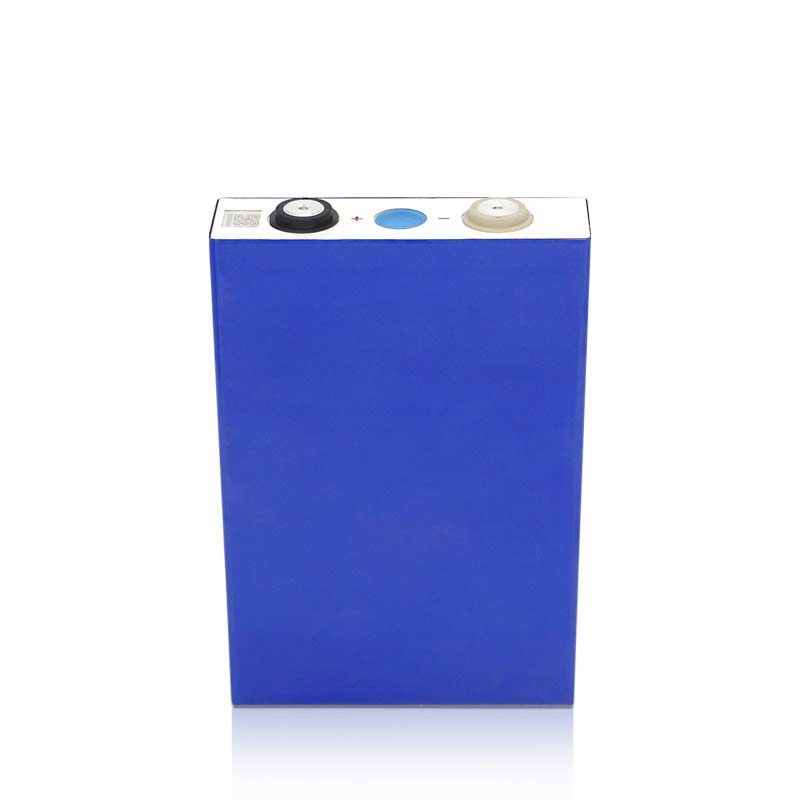

EVE Lithium Ion LF90K Square Lithium Iron Phosphate Battery 3.2V90Ah Energy Storage Battery Cells Marine Power Electricity Energy Storage
-
90 Nominal capacaity(Ah)
-
3.20 Nominal voltage(V)
-
6000 Nominal Cycles(times)
-
1994±50 Weight(g)
-
130.3*36.3*200.5 Size(mm)
-
0.5C/0.5C Charge/Discharge multiplier
Application Scenario
Excavators,Heavy trucks,Forklifts,Passenger cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Full Life Cycle
-

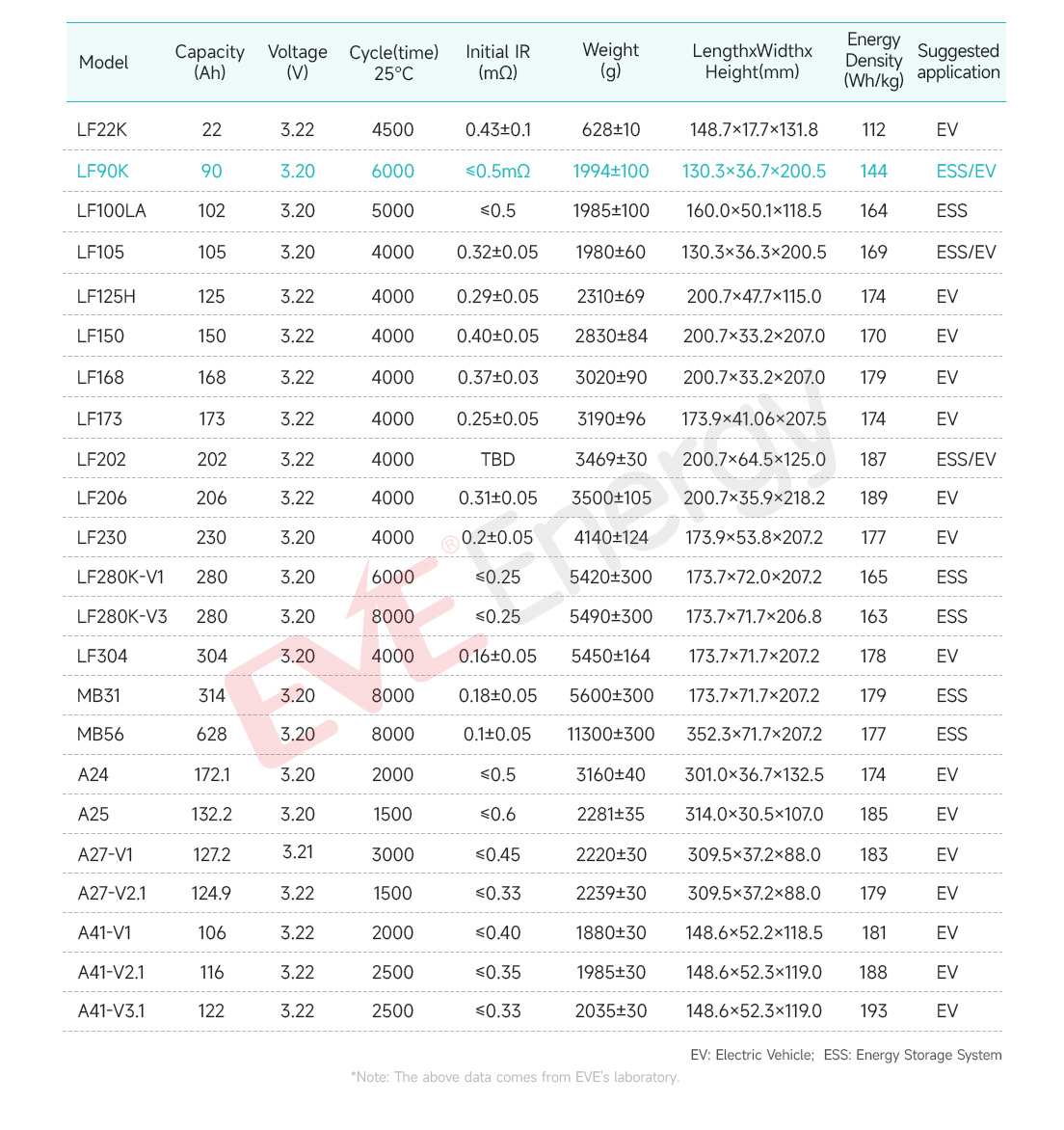

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
Global Top2 Energy Storage Battery Shipments in 2024Entered into cooperation with global well-known enterprises to build a new platform for energy storage
-

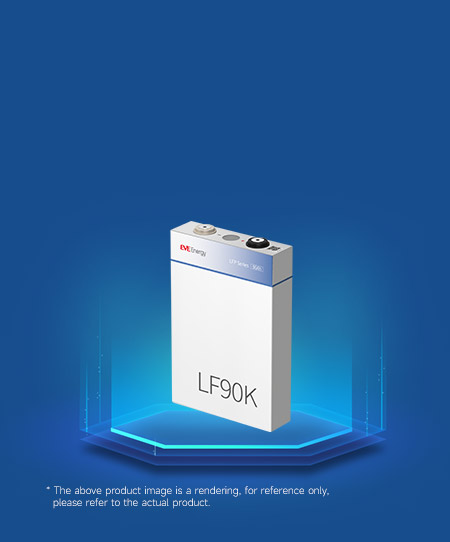

LF90K 90Ah 3.2VHigh Capacity Long Cycle
Up to 6000 cycless;70%SOHUnder the condition of(25℃1C/1C)
-

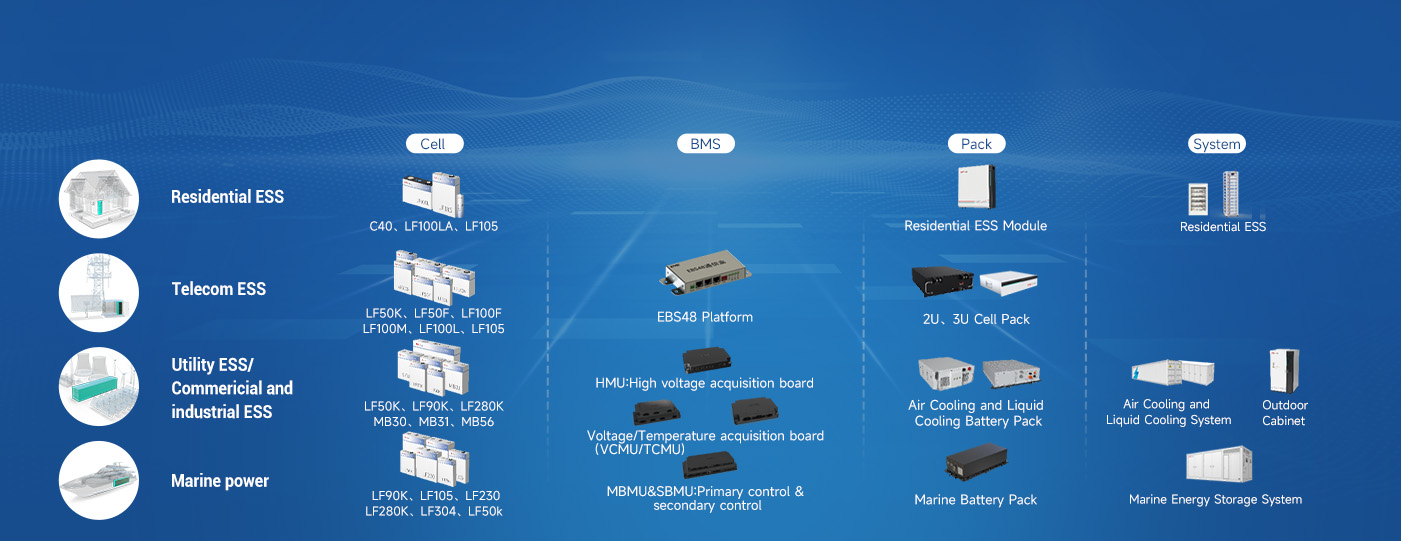

Standard platforms:Comprehensive solutions from cell to BESSApplication Area:Utility ESS,Telecom Ess,Commercial and Industrial ESS,Residential Ess,Marine Power
-

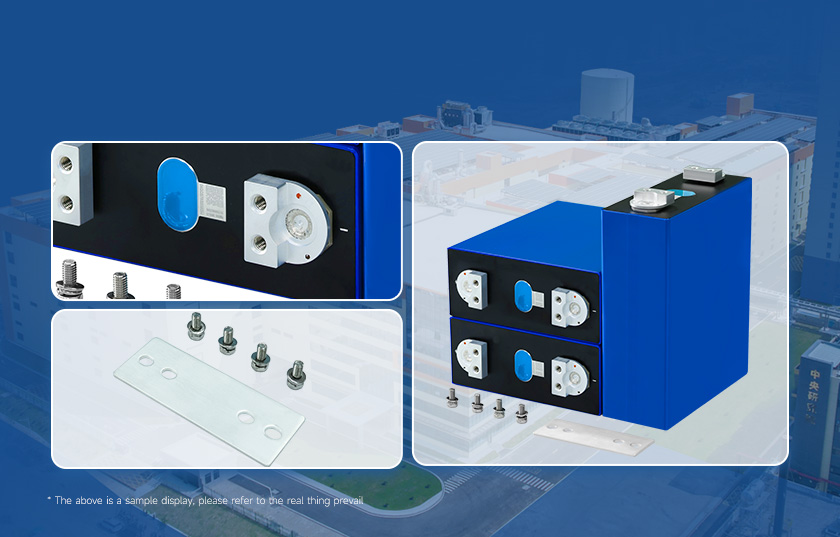

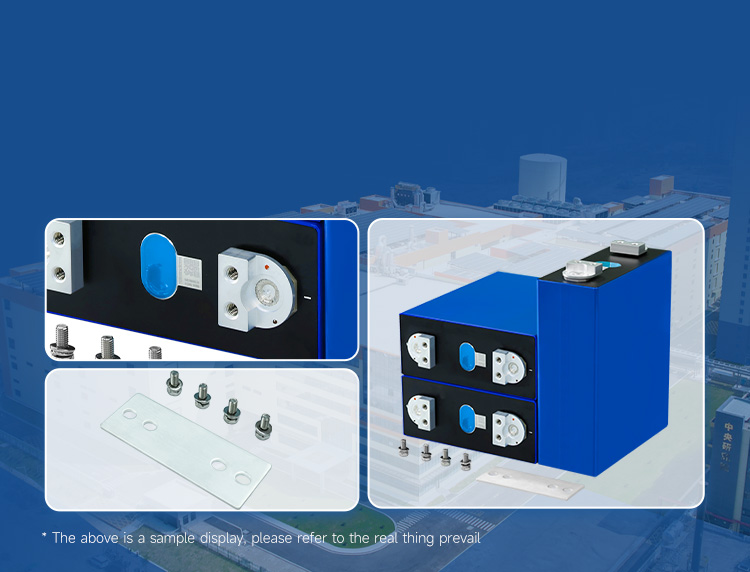

Busbars&M6/M4 bolts are availableFor more information,please contact online customer service
-
High performanceLow internal resistance of battery cell,high discharge rate,stable charge/discharge,long cycle life

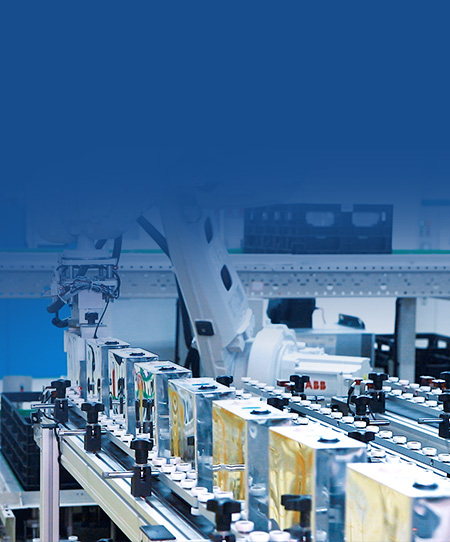

High consistencyIntelligent factory with highly automated production lines and high-precision equipment to ensure battery consistency
Safe and reliableOver 2856 cell manufacturing control points,with perfect design process and testing system
-

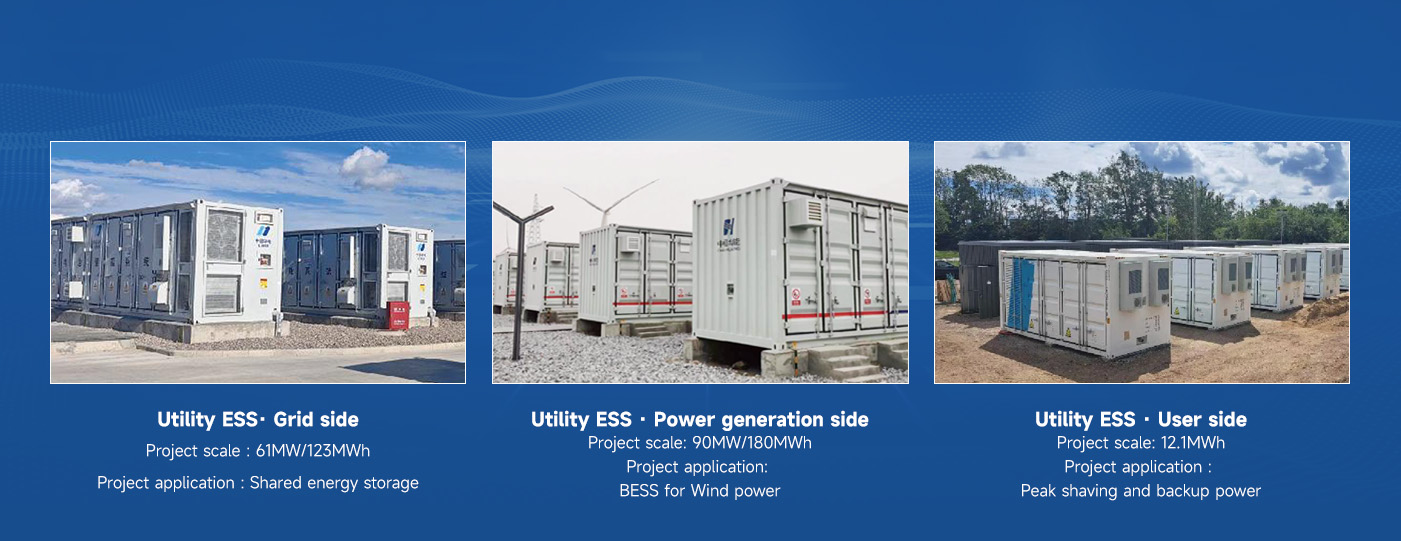

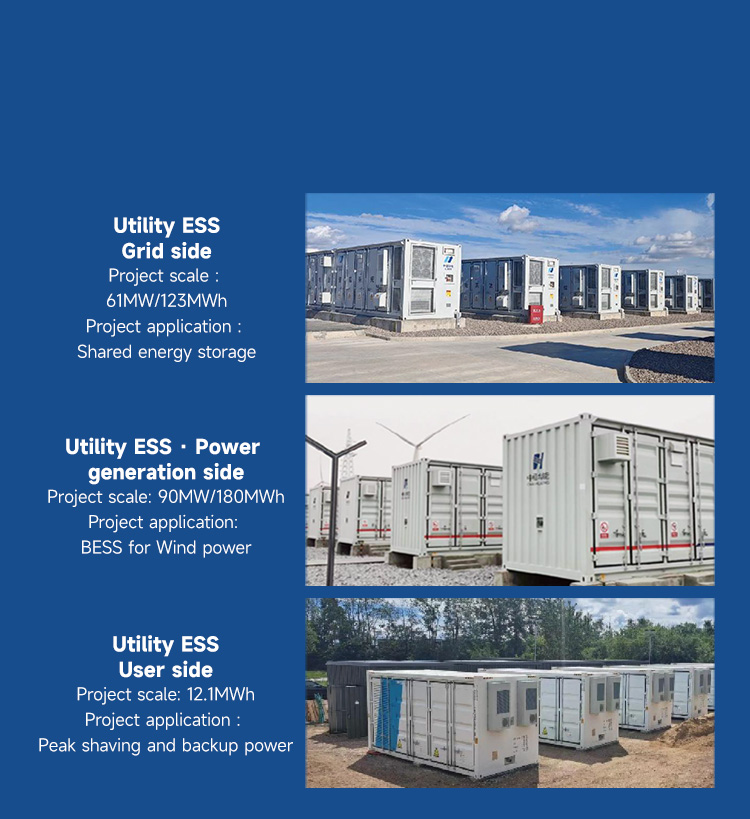

Application CasesUtility ESS/Telecom ESS/Commercial and Industrial ESS/Residential ESS/Marine Power
-
Fully certifiedObtain GB,CE,IEC,UL,et al
Delivery From German WarehouseETD:1-3 WORKING DAYS丨ETA:5-7 WORKING DAYS
-
Packaging/Shipping SafetyCartom packing:4 pcs/carton丨Wooden case packing:30pcs carton(120pcs cells inside)
Specifications
| Model Number | LF90K |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 90Ah |
| Nominal Cycles(times) | 6000 |
| Weight(g) | 1994±50 |
| Width*Thickness*Height(mm) | 130.3*36.3*200.5 |
| Initial IR | 0.5mΩ |
| Maximum Continuous Charge/Discharge Ratio | 1C/1C |
| Charging Temperature | 0～55℃ |
| Discharging Temperature | -20～55℃ |

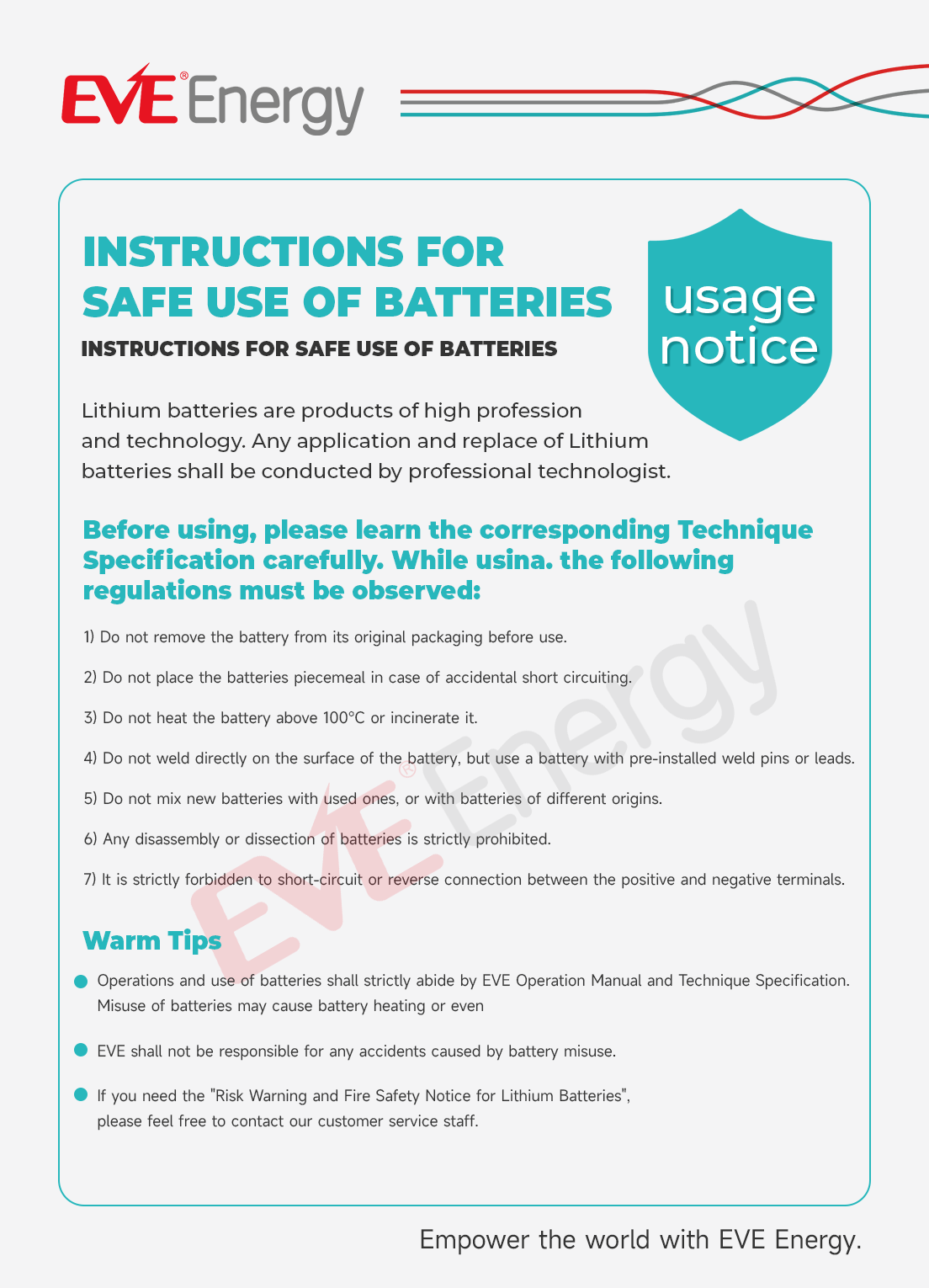

Safety Instructions
