LF234HOT

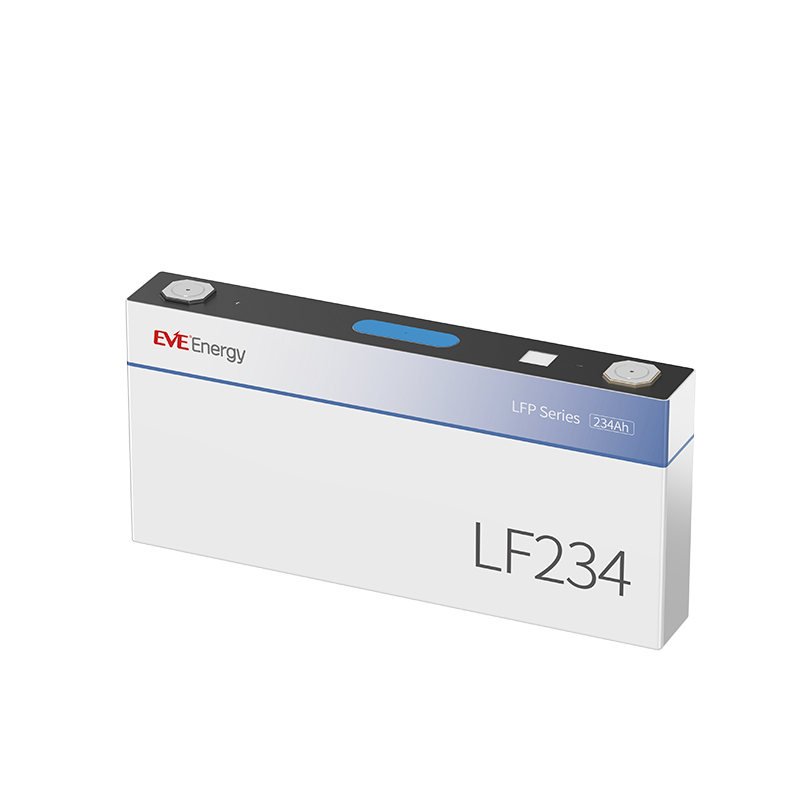

EVE Lithium LF234 Prismatic Lithium Iron Phosphate Battery 3.22V234Ah Commercial Vehicles Light Trucks
-
234 Nominal Capacity(Ah)
-
3.22 Nominal Voltage(V)
-
4000 Nominal Cycles(times)
-
4010±50 Weight(g)
-
42*301.60*143 Size(mm)
-
1C/0.5C Charge/Discharge Multiplier
Application Scenario
Excavators,Heavy Trucks,Forklifts,Passenger Cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Fully Certified
-
Full Life Cycle
-
Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
LF234 powers various energy applications234Ah LFP Battery, Ideal for Commercial Vehicles, Passenger Vehicles, Heavy Trucks and Construction Machinery Applications
-
LF234 234Ah 3.22VHigh Capacity Long Cycle
Up to 4000 Cycles;80%SOHUnder the condition of(25℃ 1C/0.5C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-

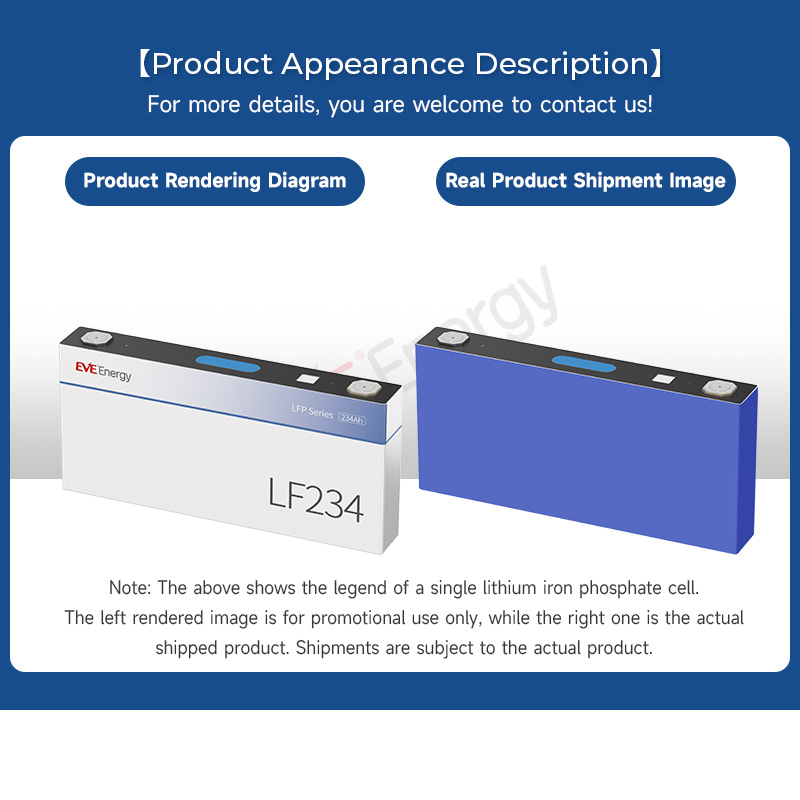

Product Appearance DescriptionFor More Information,Please Contact Online Customer Service
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge/Discharge
Max Continuous Charge
Operating Temperature (°C) -
Application CasesHome ESS,Commercial ESS,Portable Power,AGV,Golf Cart,Heavy Truck,Forklift,Sightseeing Vehicle,Marine Power,Bus
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life
High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System
Specifications
| Model Number | LF234 |
| Nominal Capacity | 234Ah |
| Nominal Voltage | 3.22V |
| Nominal Cycles(times) | 4000 |
| Initial IR | ≤0.4mΩ |
| Weight(g） | 4010±50 |
Maximum Instantaneous Charge/Discharge Rate | 2C/3C |
| Charging Temperature | -10~65℃ |
| Discharging Temperature | -35℃~65℃ |
| Product size | 42*301.60*143 |
Safety Instructions
Have questions?？Get help from a EVE expert
