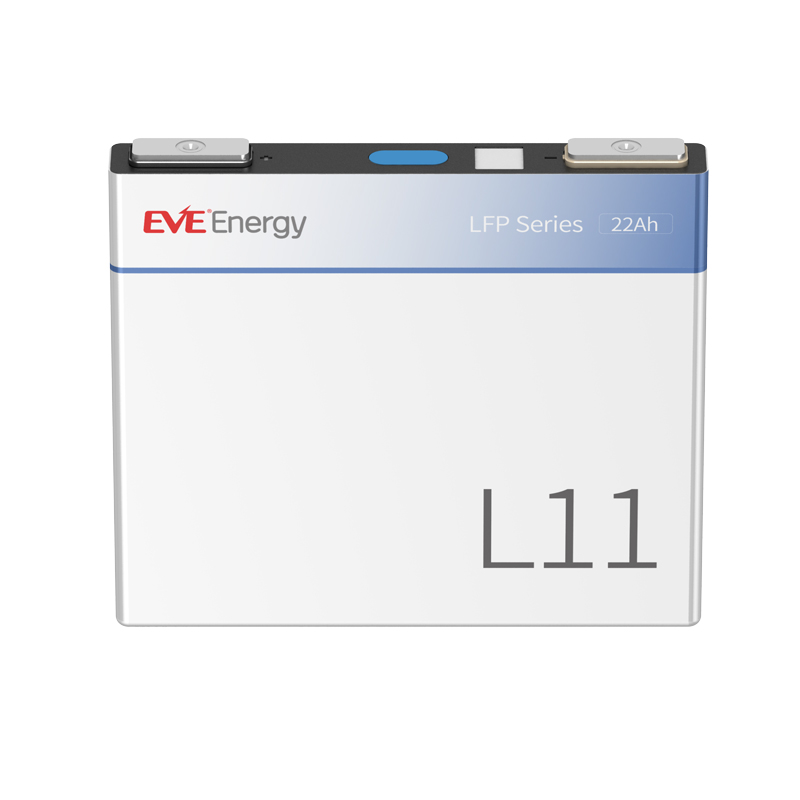

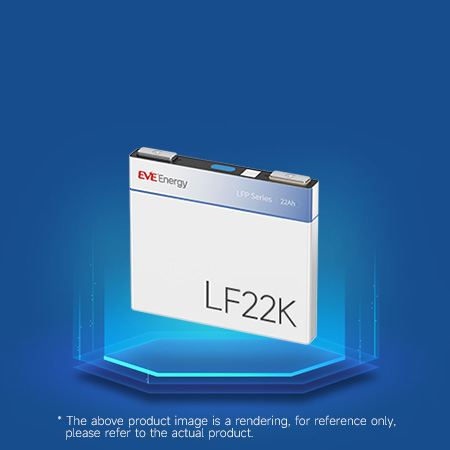

LF22KHOT

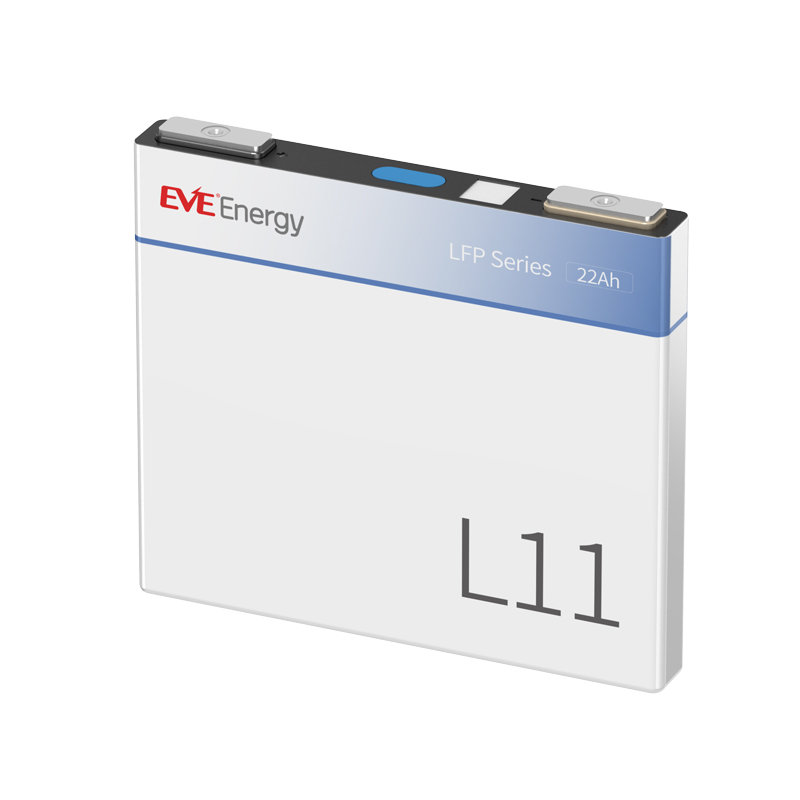

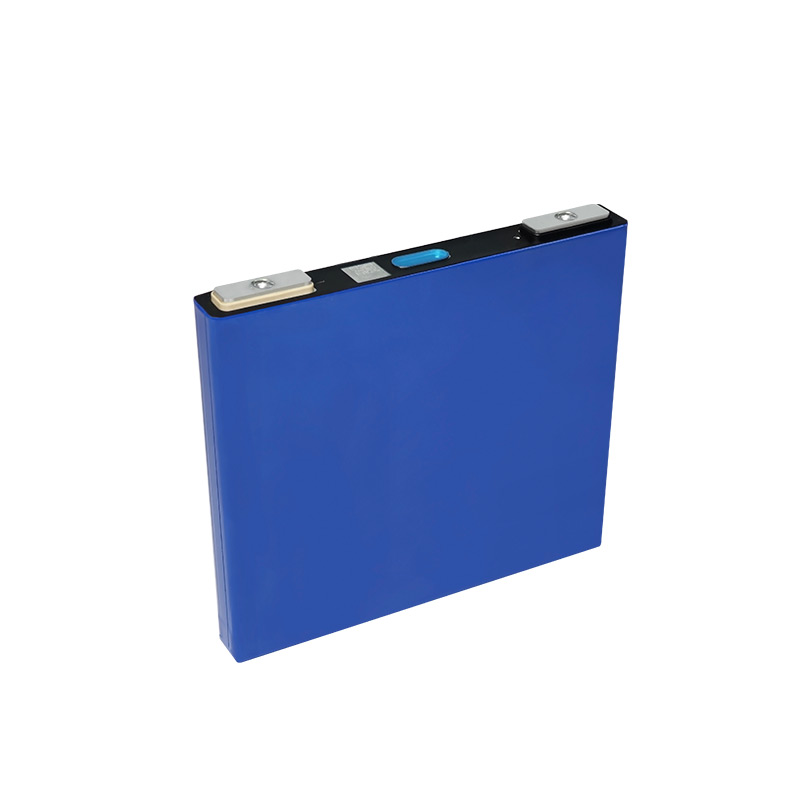

EVE Li-power LF22K square lithium iron phosphate battery 3.22V22Ah power battery starter power commercial vehicles
-
22 Nominal capacity (Ah)
-
3.2 Nominal voltage(V)
-
4500 Number of cycles (times)
-
628±10 Weight(g)
-
131.8*148.7*17.7 Size(mm)
-
0.5C/0.5C 0.33C/0.33C
Application Scenario
Excavators,Heavy trucks,Forklifts,Passenger cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Fully Certified
-
Full Life Cycle
-

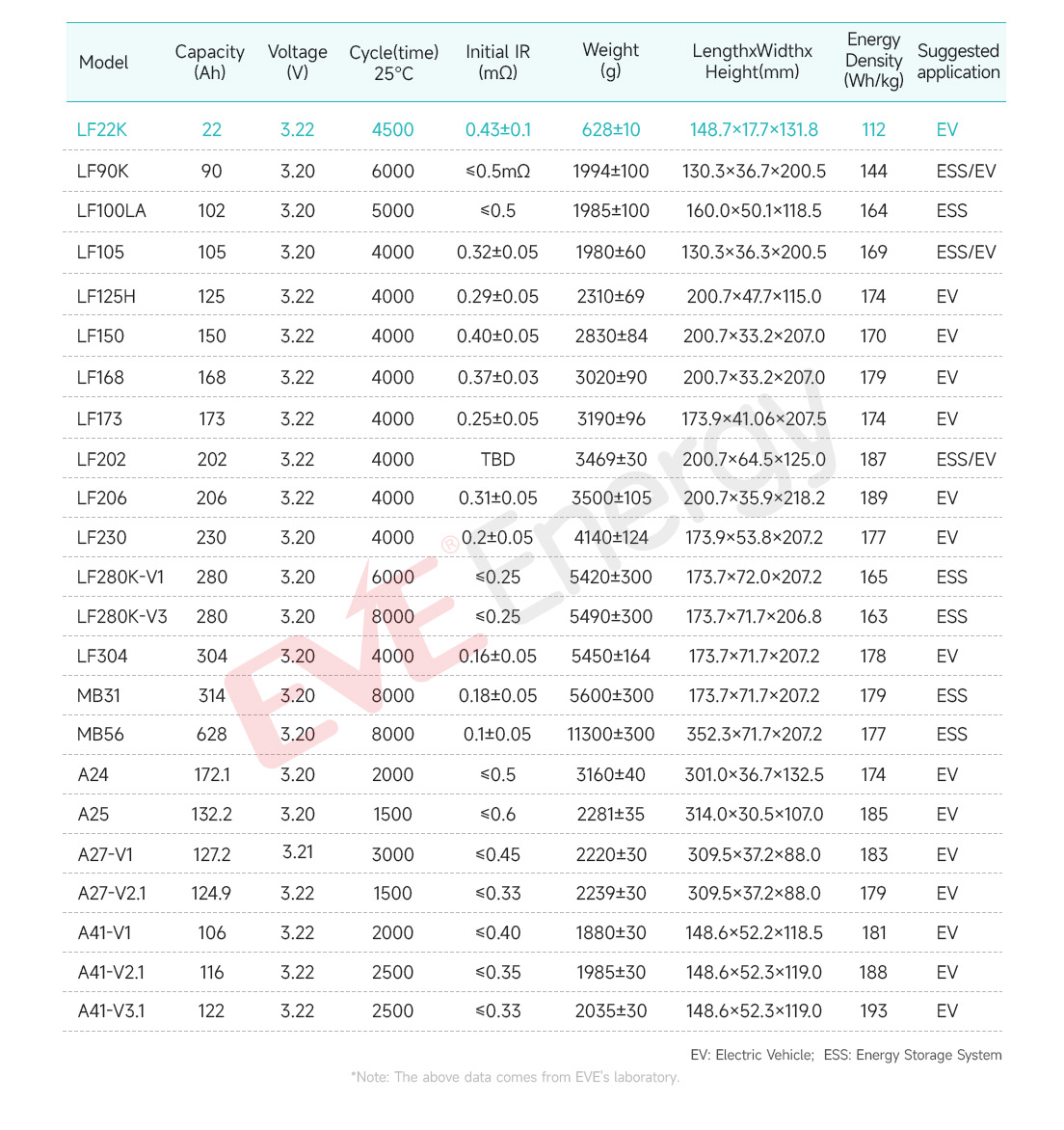

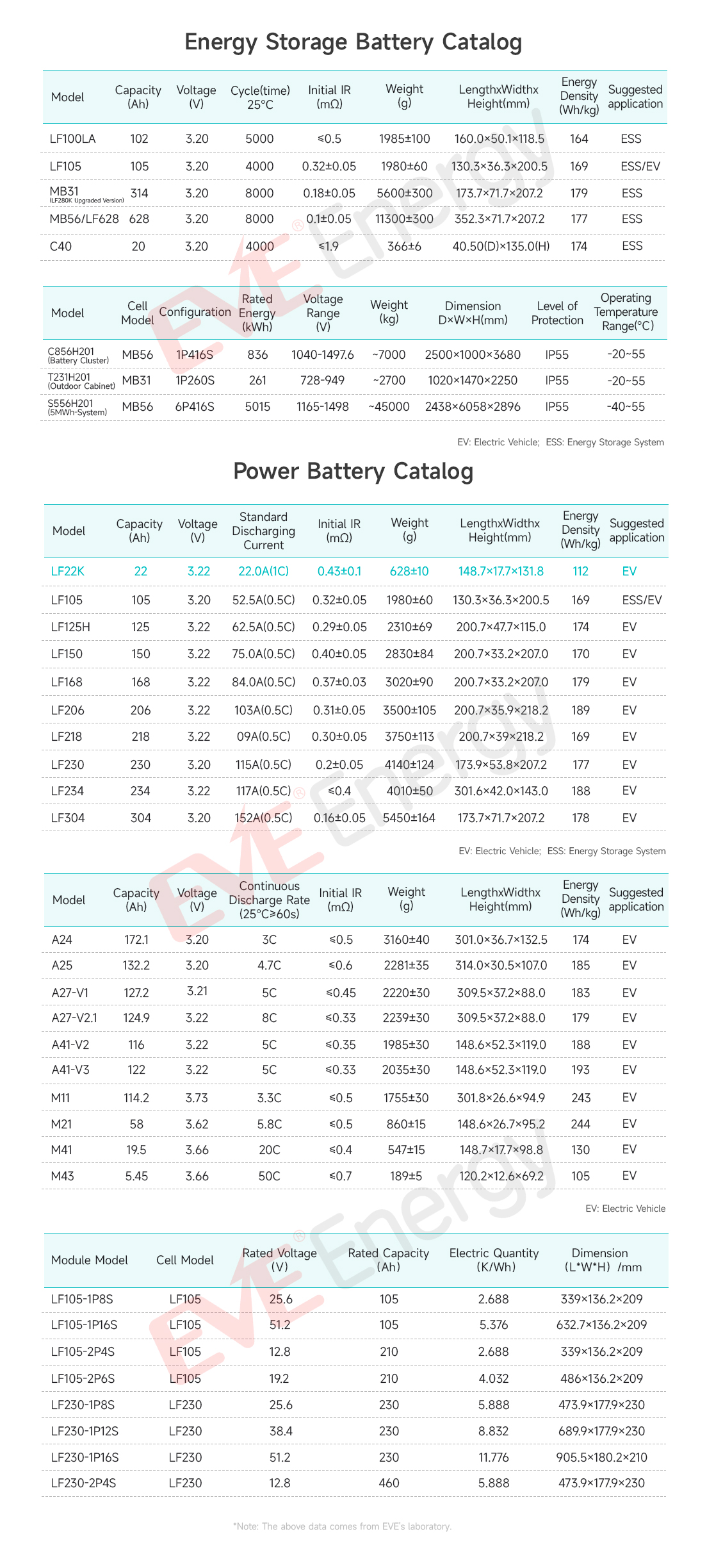

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
Top 2 Global Medium and Heavy Commercial Vehicle Installed Capacity in 2024Entered into cooperation with global well-known enterprises to build a new platform for energy storage
-
LF22K 22Ah 3.22VHigh Capacity Long Cycle
Up to 4500 cycless;80%SOHUnder the condition of(25℃0.5C/0.5C)
-

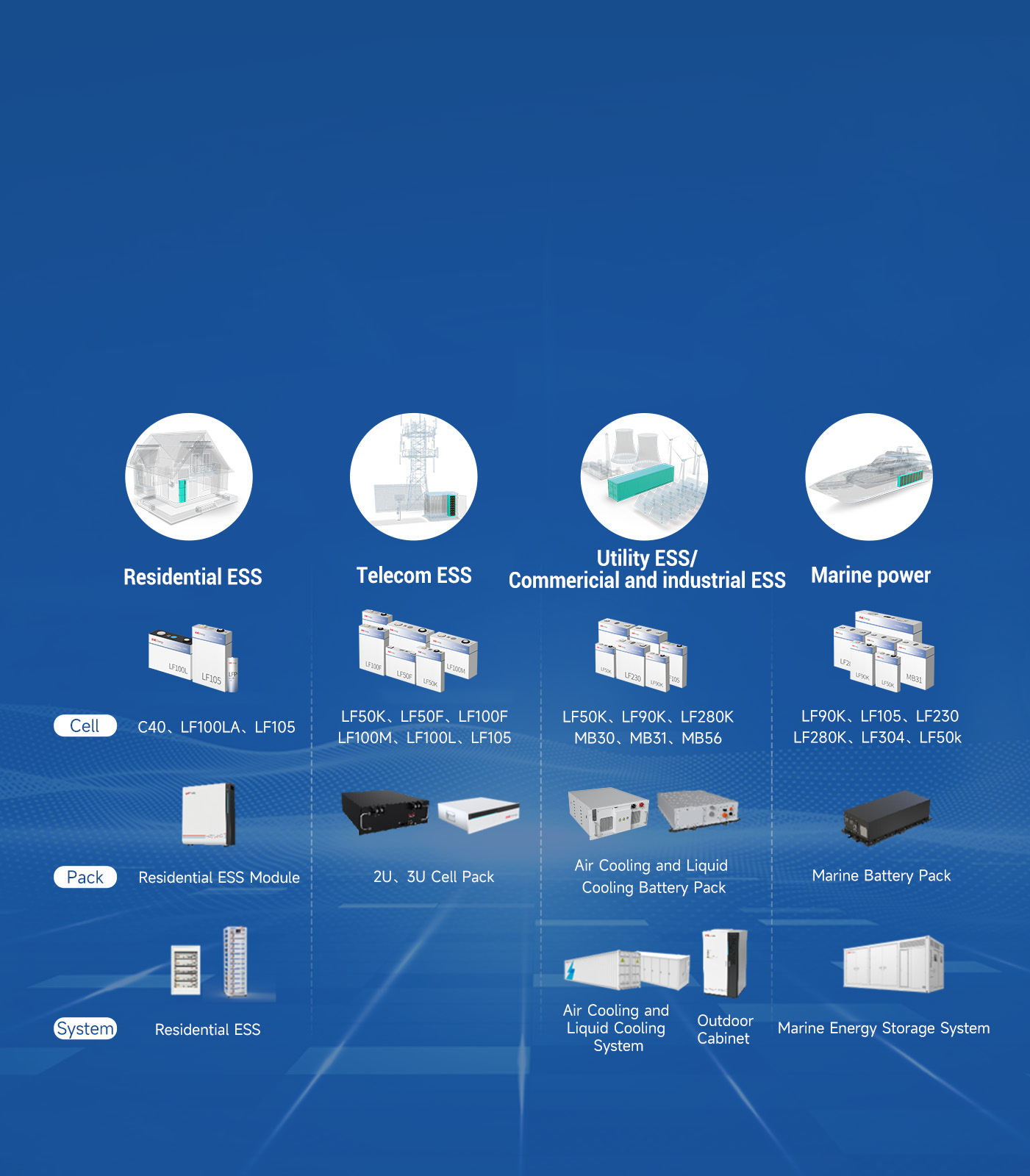

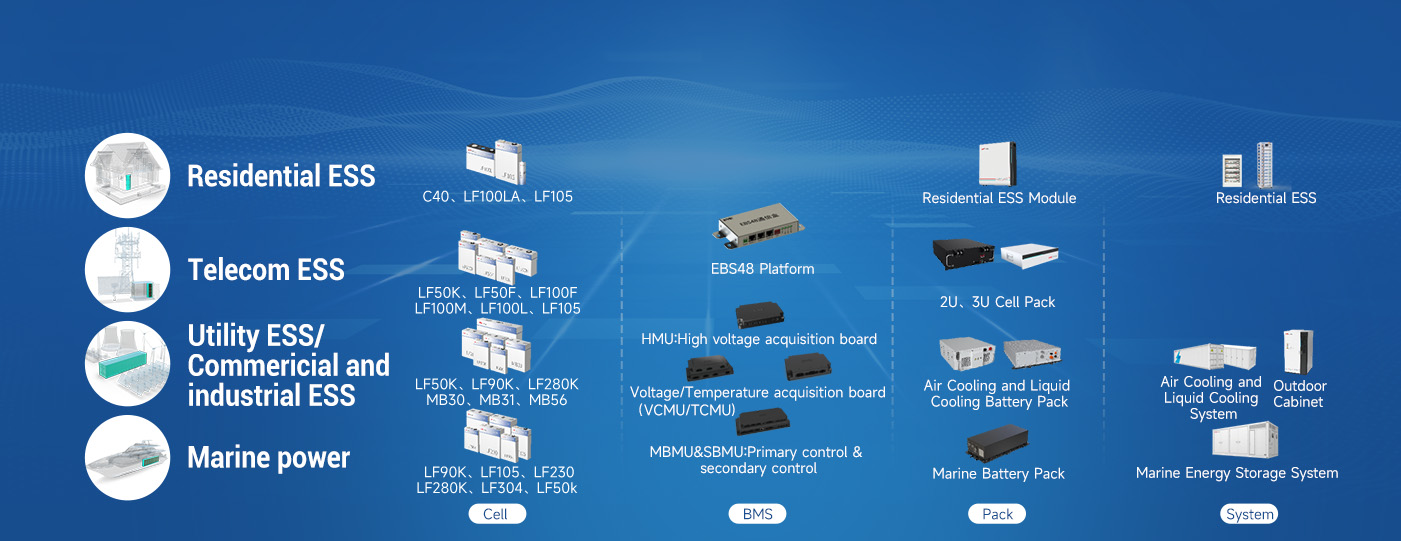

Standard platforms:Comprehensive solutions from cell to BESSApplication Area:Excavators,Heavy trucks,Forklifts,Passenger cars
-

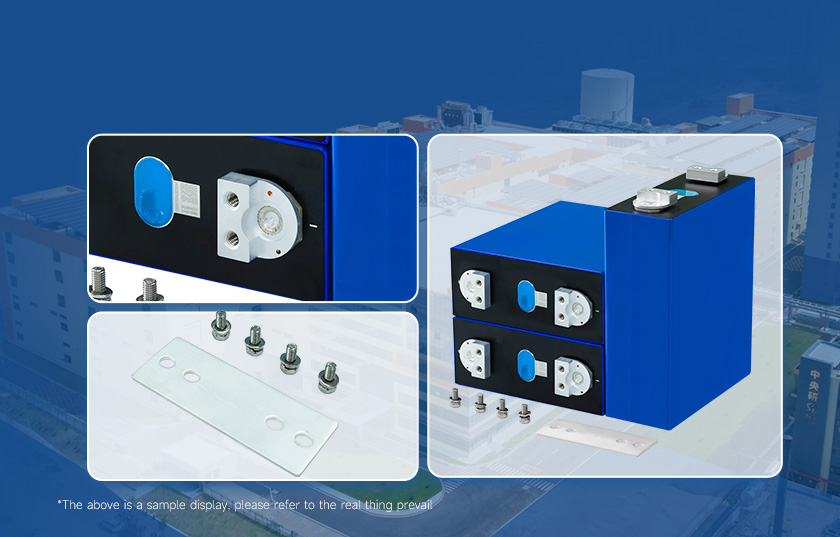

Busbars&M6/M4 bolts are availableor more information,please contact online customer service
-
High performanceLow internal resistance of battery cell,high discharge rate,stable charge/discharge,long cycle life

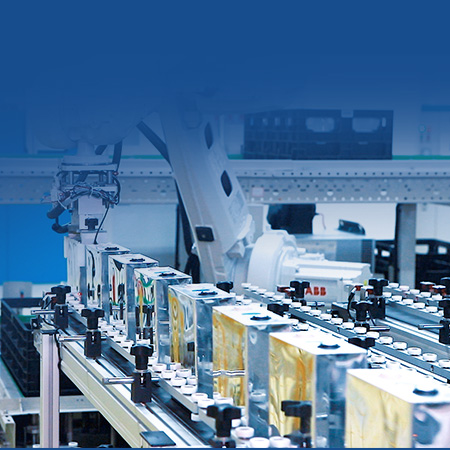

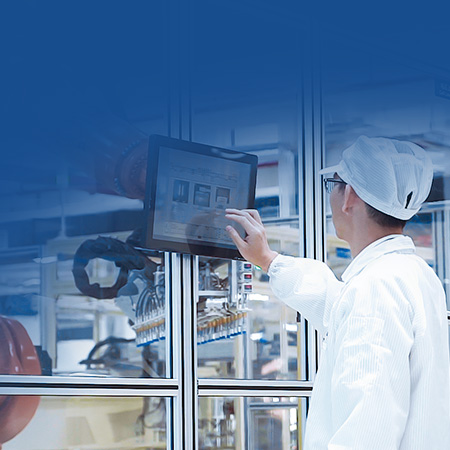

High consistencyIntelligent factory with highly automated production lines and high-precision equipment to ensure battery consistency
Safe and reliableOver 2856 cell manufacturing control points,with perfect design process and testing system
-
Application CasesPassenger Car Solutions,Commercial Vehicle Solutions,Engineered Power Solutions
-
Fully certifiedObtain GB,CE,IEC,UL,et al
Delivery From German WarehouseETD:1-3 WORKING DAYS丨ETA:5-7 WORKING DAYS
-
Packaging/Shipping SafetyCartom packing:4 pcs/carton丨Wooden case packing:30pcs carton(120pcs cells inside)
Specifications
| Model Number | LF22K |
| Nominal Voltage | 3.22V |
| Nominal Capacity | 22Ah |
| Energy Density | 112Wh/kg |
| Initial IR | 0.43±0.1mΩ |
| Weight(g） | 628±10g |
| Width*Thickness*Height(mm) | 131.8*148.7*17.7 |
| Standard Charge/Discharge Ratio | 1C/1C |
| Working Temperature | -30~60℃ |
| Storage Temperature | -40~70℃ |

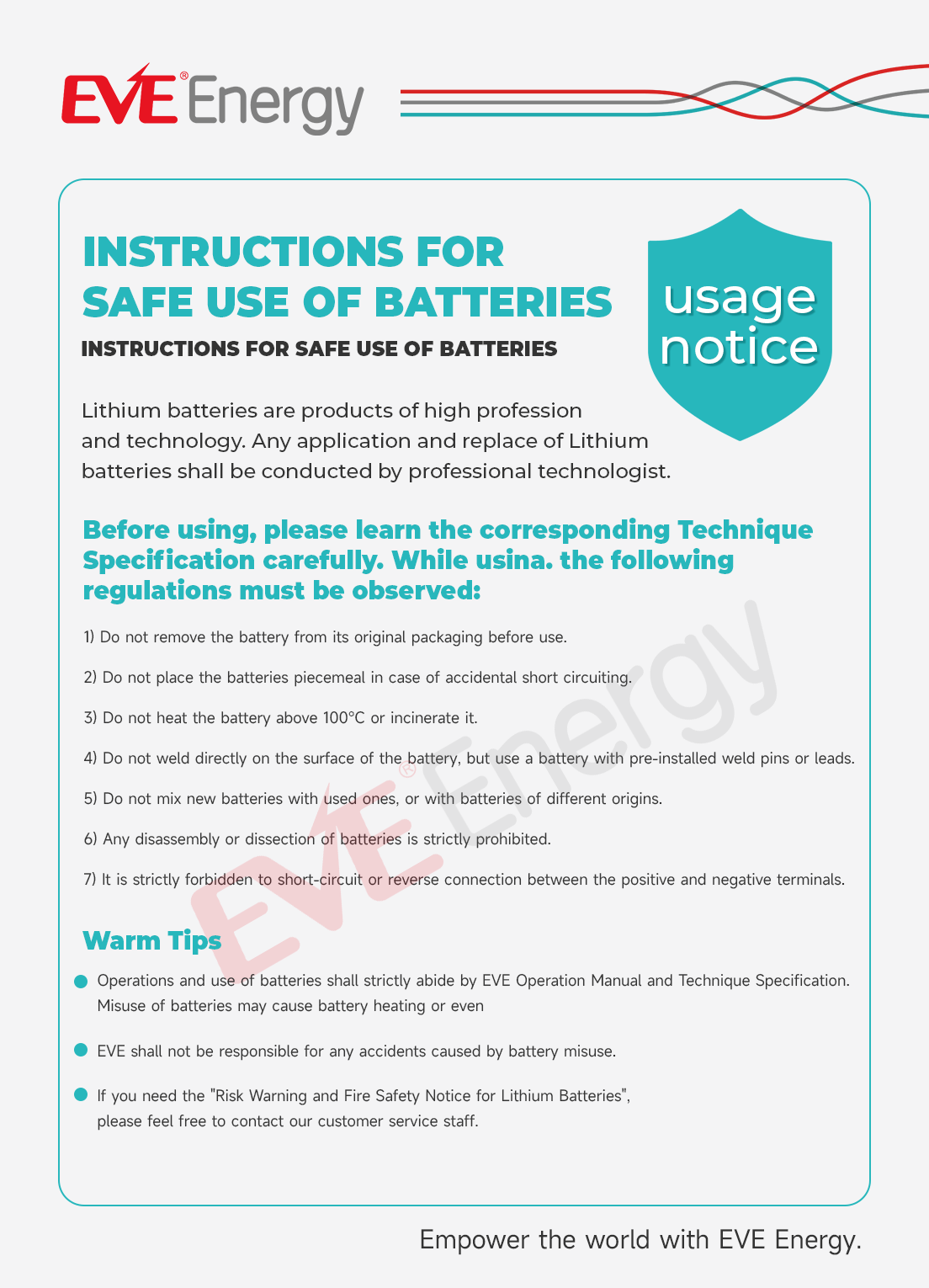

Safety Instructions
