LF206HOT
EVE_LF206 Prismatic LFP Battery_3.22V 206Ah_For Light Trucks, Heavy Trucks, Logistics Vehicles
-
206 Nominal Capacaity(Ah)
-
3.22 Nominal Voltage(V)
-
4000 Nominal Cycles(times)
-
3500±105 Weight(g)
-
200.70*35.9*218.2 Size(mm)
-
1C/0.5C Charge/Discharge Multiplier
Application Scenario
Excavators,Heavy Trucks,Forklifts,Passenger Cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Full Life Cycle
-

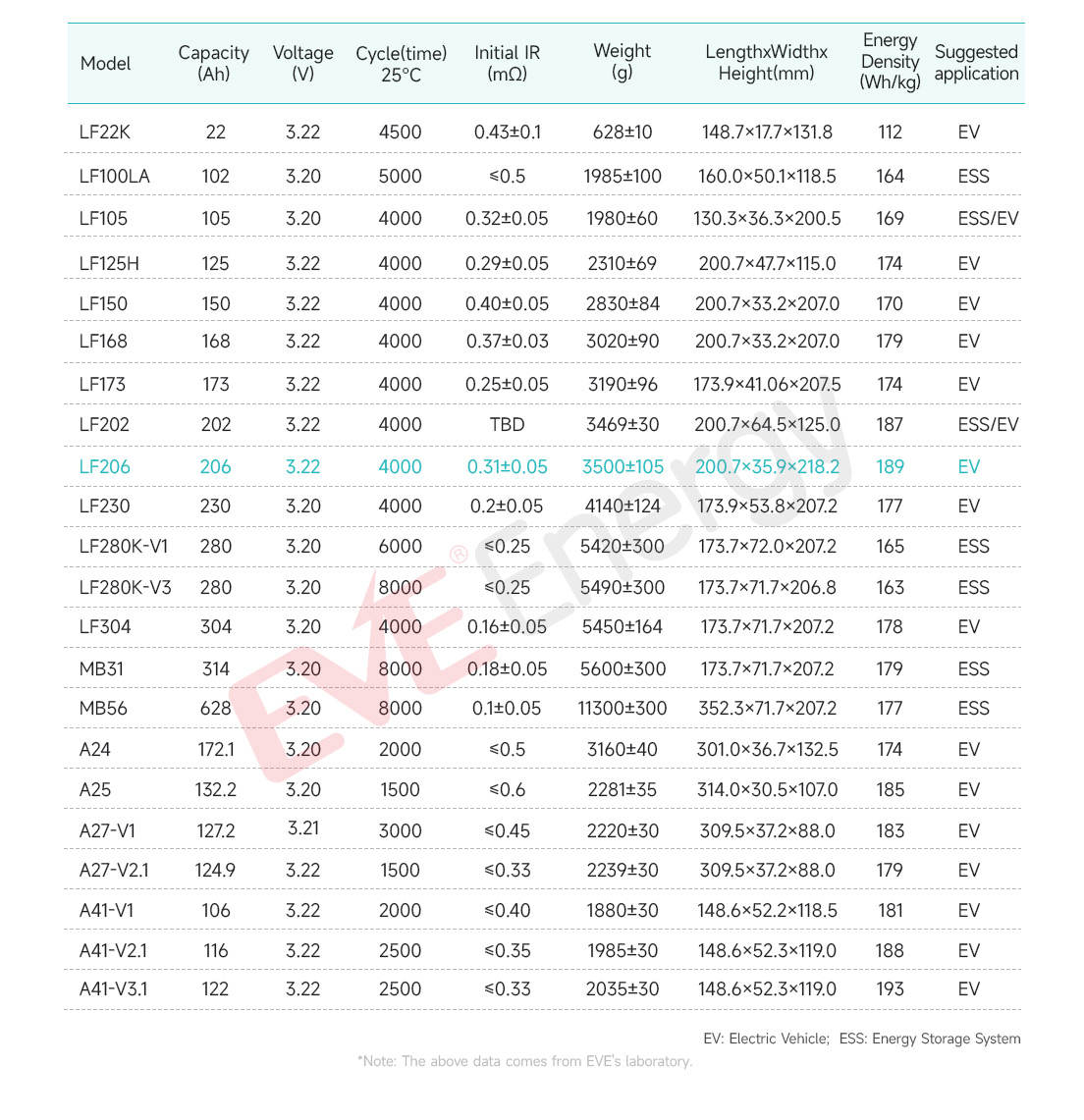

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
LF206 powers various energy applications206Ah LFP Battery, Ideal for Light Trucks, Heavy Trucks and Logistics Vehicles Applications
-
LF206 206Ah 3.22VHigh Capacity Long Cycle
Up to 4000 Cycles;80%SOHUnder the condition of(25℃ 1C/0.5C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-

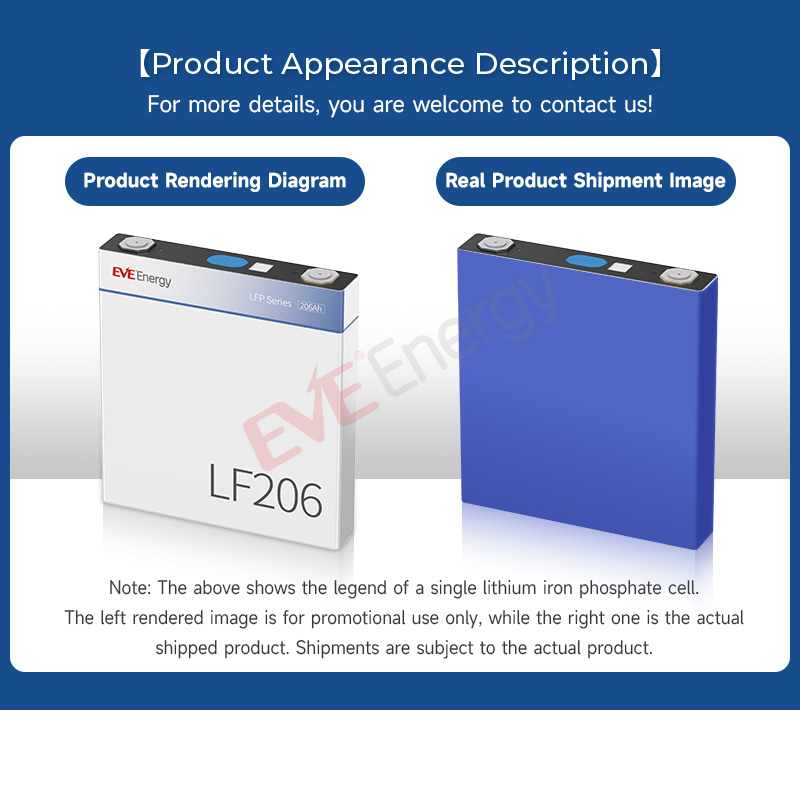

Product Appearance DescriptionProduct Appearance Description
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge/Discharge
Max Continuous Charge
Operating Temperature (°C) -
Application CasesHome ESS, Construction Machinery, Light Truck, Start-Stop Power Supply, Passenger Vehicle, Heavy Truck
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life
High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System
Specifications
| Model Number | LF206 |
| Nominal Voltage | 3.22V |
| Nominal Capacity | 206Ah |
| Weight(g） | 3500±105g |
| Nominal Cycles(times) | 4000 |
| Initial IR | 0.31mΩ |
| Charging Temperature | -10~65 ℃ |
| Discharging Temperature | -35~65 ℃ |
Safety Instructions
