LF173
EVE Lithium LF173 Prismatic Lithium Iron Phosphate Battery 3.22V 173Ah Power Battery Commercial Vehicle Engineering Power Engineering Machinery
-
173 Nominal capacaity(Ah)
-
3.22 Nominal voltage(V)
-
4000 Number of cycles (times)
-
3190±96 Weight(g)
-
173.9*41.06*207.5 Size(mm)
-
0.5C/0.5C Charge/Discharge Multiplier
Application Scenario
Excavators,Heavy trucks,Forklifts,Passenger cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Fully Certified
-
Full Life Cycle
-

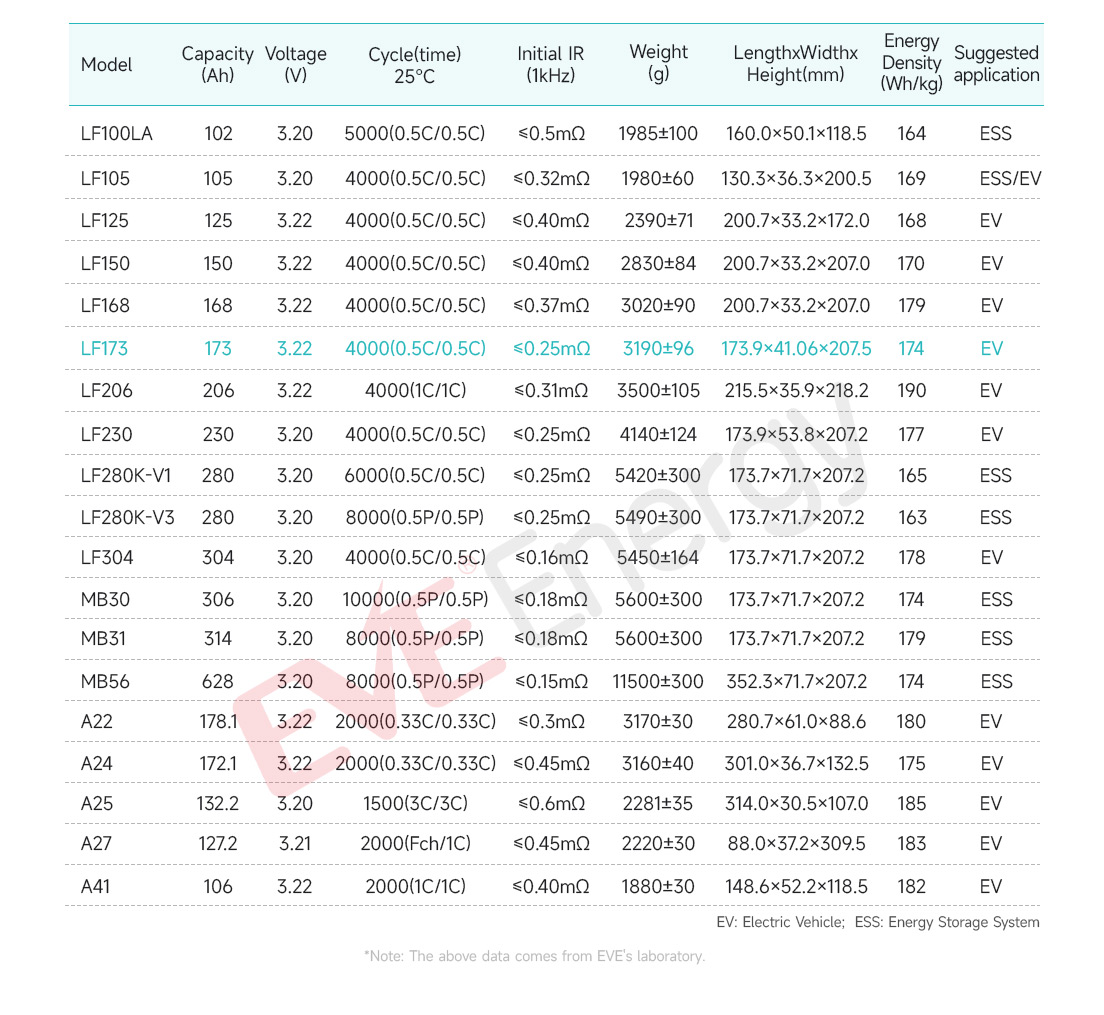

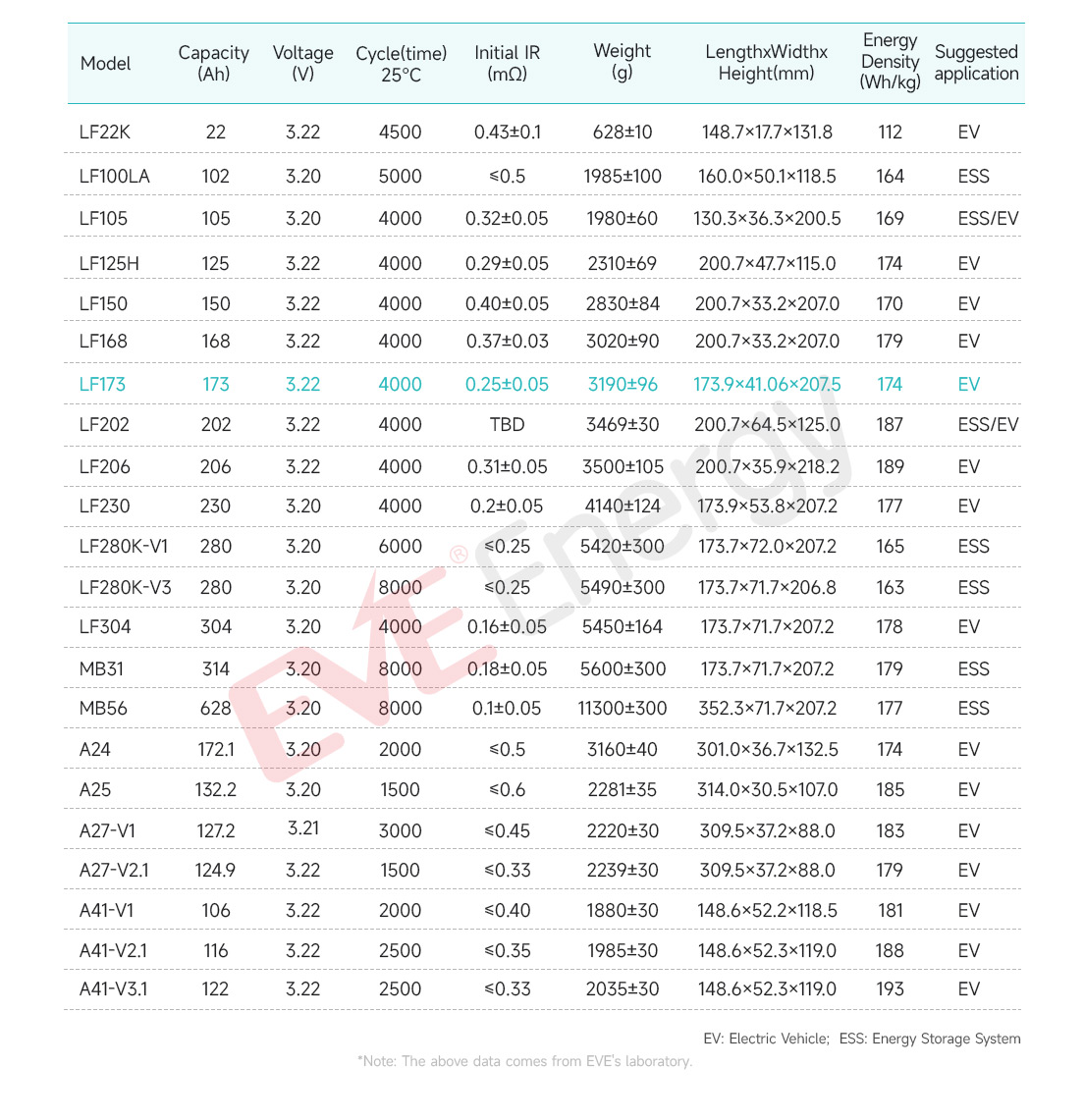

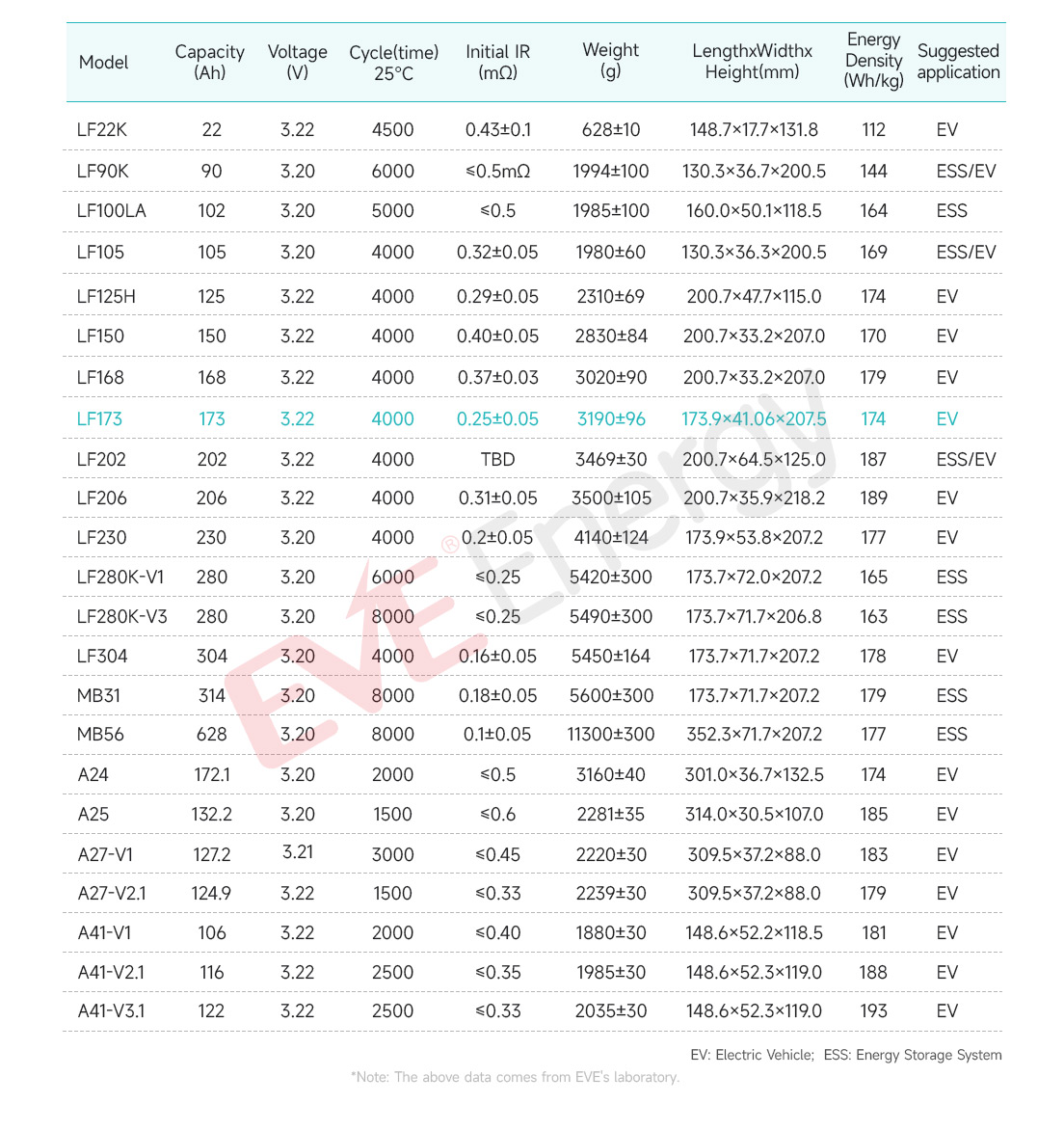

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
LF173 powers various energy applications173Ah LFP Battery, Ideal for Commercial Vehicles, Engineering Power and Construction Machinery Applications
-
LF173 173Ah 3.22VHigh Capacity Long Cycle
Up to 4000 cycles;80%SOHUnder the condition of(25℃ 0.5C/0.5C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-
Product Appearance DescriptionFor More Information,Please Contact Online Customer Service
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge/DischargeLow inte
Standard Charge/Discharge
Operating Temperature (°C) -
Application CasesHome ESS, Construction Machinery, Light Truck, Start-Stop Power Supply, Passenger Vehicle, Heavy Truck
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life
High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System
Specifications
| Model Number | LF173 |
| Nominal Voltage | 3.22V |
| Nominal Capacity | 173Ah |
| Nominal Capacity | 3190±96 |
| Initial IR | 0.25 mΩ ± 0.05 mΩ |
| Cycle times | 4000 |
| Width*Thickness*Height(mm) | 173.9*41.06*207.5 |
| Standard charge/Discharge current | 86.5A/86.5A |
| Charging Temperature | -10℃~65℃ |
| Discharging Temperature | -35℃~65℃ |
| Maximum instantaneous charge/Discharge ratio | 2C/3C |
Safety Instructions
Have questions?？Get help from a EVE expert
