LF168HOT
EVE Lithium LF168 Prismatic lithium iron phosphate battery 3.22V 168Ah power battery logistics VAN micro trucks light trucks
-
168 Nominal Capacaity(Ah)
-
3.22 Nominal Voltage(V)
-
4000 Nominal Cycles(times)
-
3020±90 Weight(g)
-
200.7*33.2*207.0 Size(mm)
-
0.5C/0.5C Charge/Discharge Multiplier
Application Scenario
Logistics VAN Vehicles,Micro Trucks,Light Trucks,Commercial Vehicles
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Full Life Cycle
-

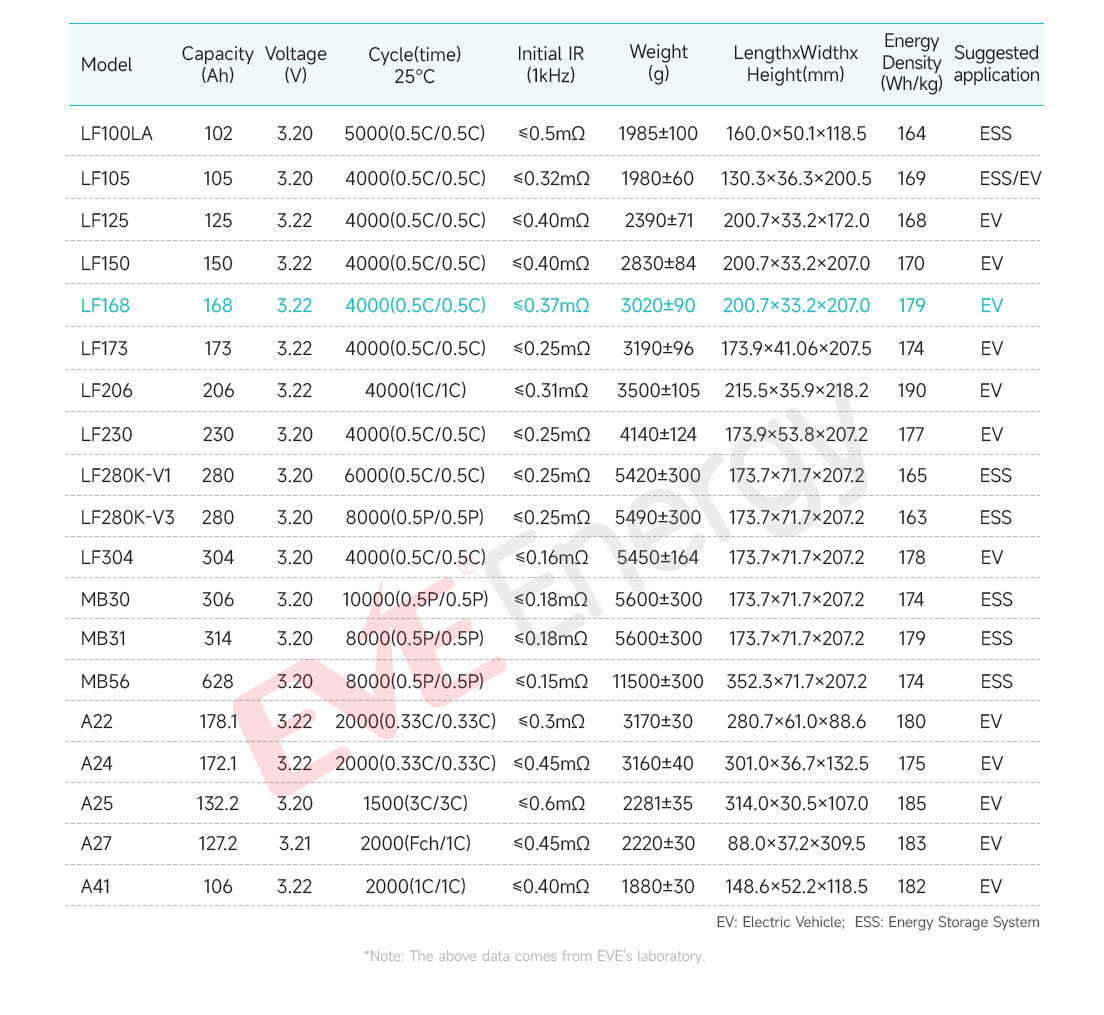

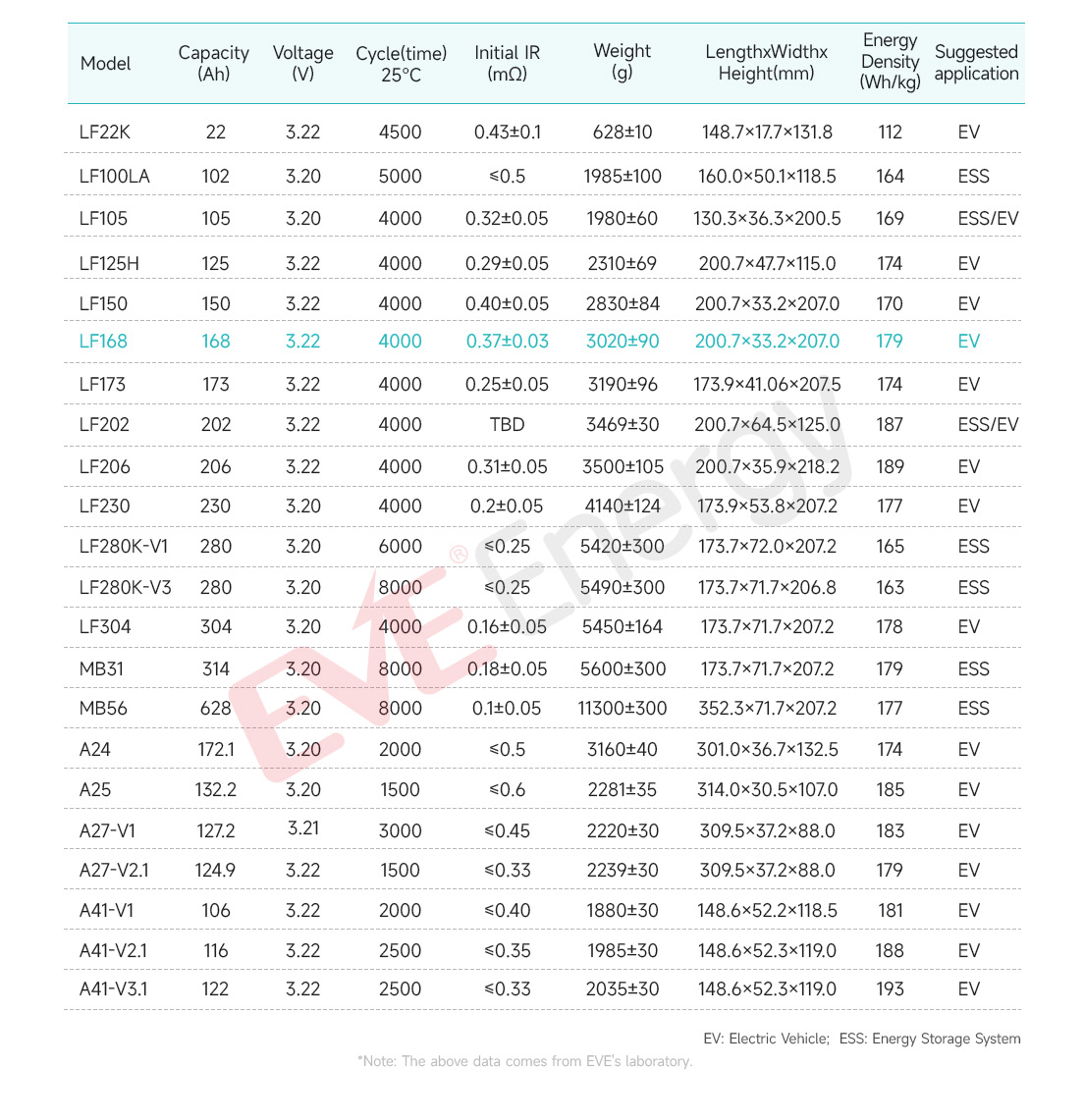

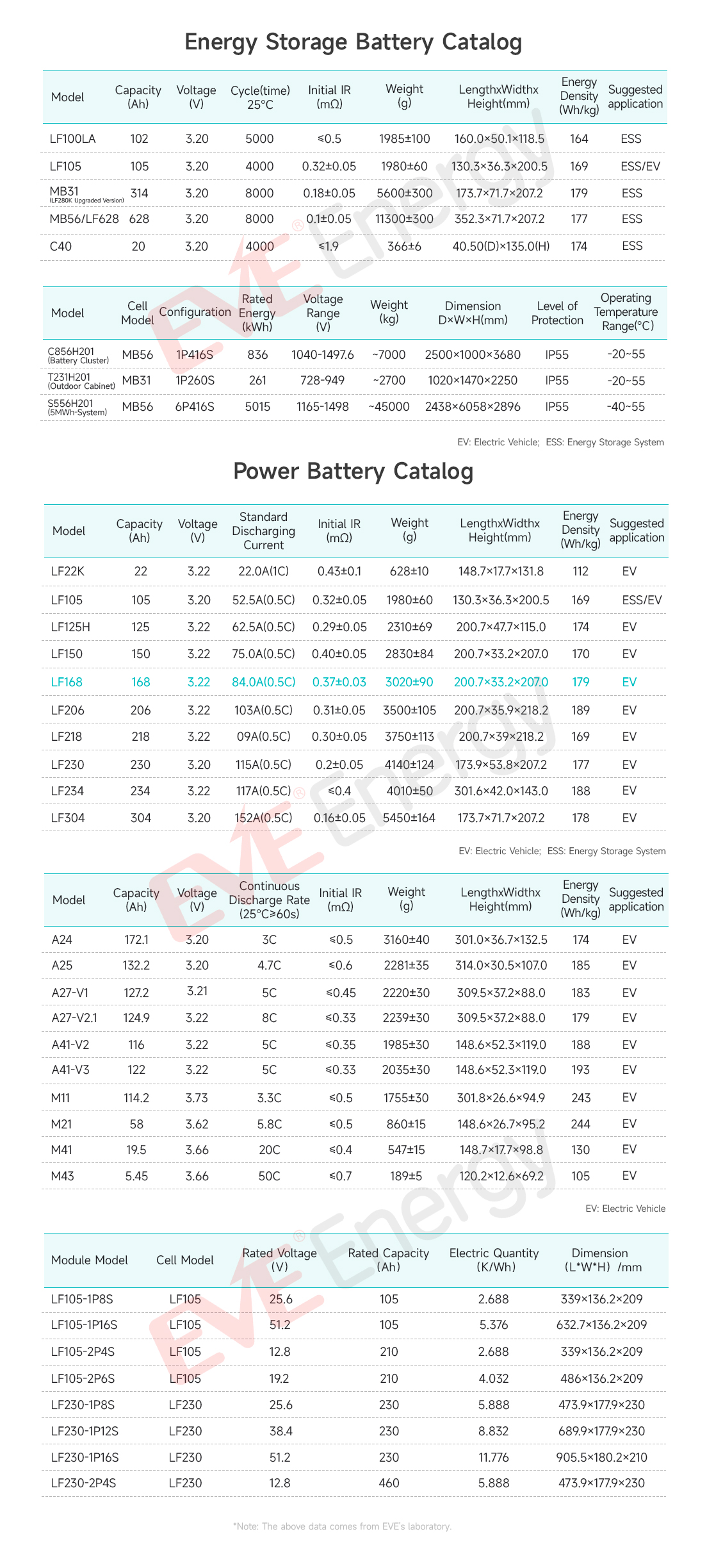

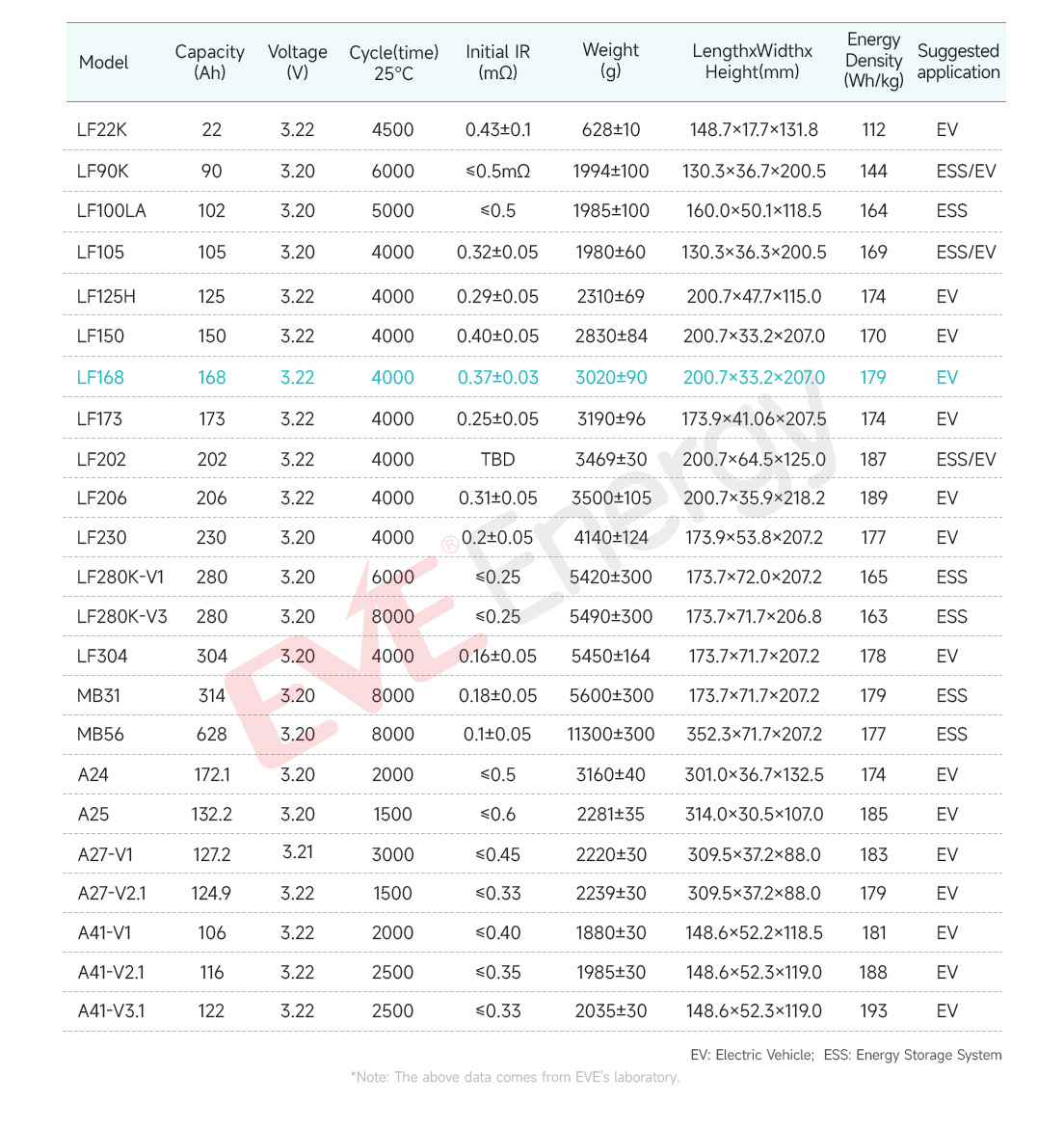

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
LF168 powers various energy applications168Ah LFP Battery, Ideal For Logistics, Vans, Mini Trucks And Light Trucks
-
LF168 168Ah 3.22VHigh Capacity Long Cycle
Up to 4000 Cycles;80%SOHUnder the condition of(25℃ 0.5C/0.5C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-

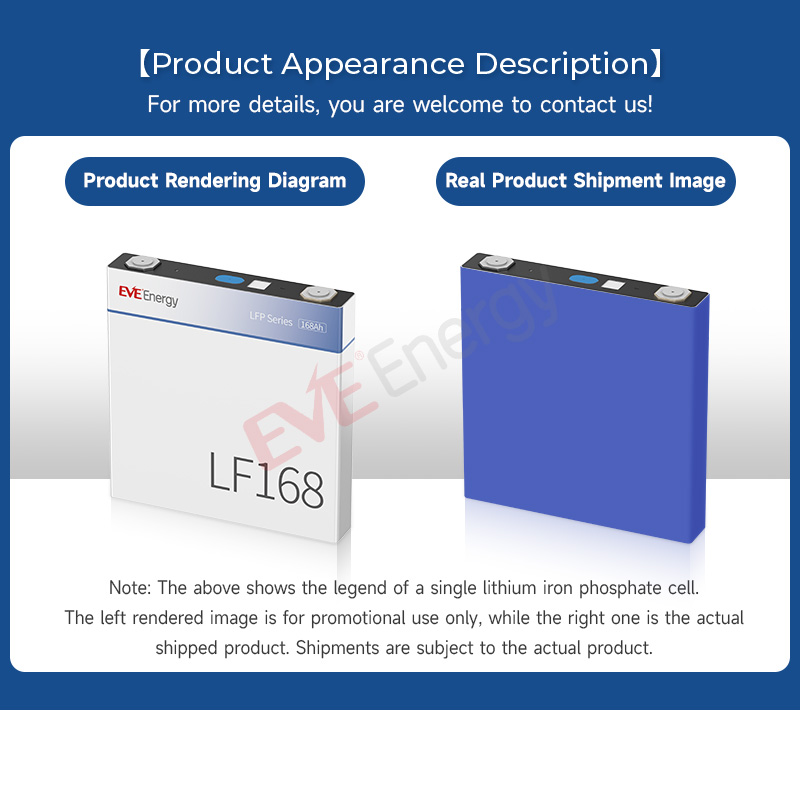

Product Appearance DescriptionFor More Information,Please Contact Online Customer Service
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge/Discharge
Max Continuous Charge
Operating Temperature (°C) -
Application CasesThree-Wheeler,Construction Machinery,Passenger Vehicle,Light Truck,Bus,Marine Power,Heavy Truck
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life
High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System
Specifications
| Model Number | LF168 |
| Nominal Voltage | 3.22V |
| Nominal Capacity | 168Ah |
| Initial IR | ≤0.37mΩ |
| Weight(g） | 3020±90 |
| Width*Thickness*Height(mm) | 200.7*33.2*207.0 |
| Maximum instantaneous charge/discharge ratio | 2C/3C |
| Nominal Cycles(times) | 4000 |
| Charging Temperature | -10～65℃ |
| Discharging Temperature | -35~65 ℃ |
Safety Instructions
Have questions?？Get help from a EVE expert
