A27

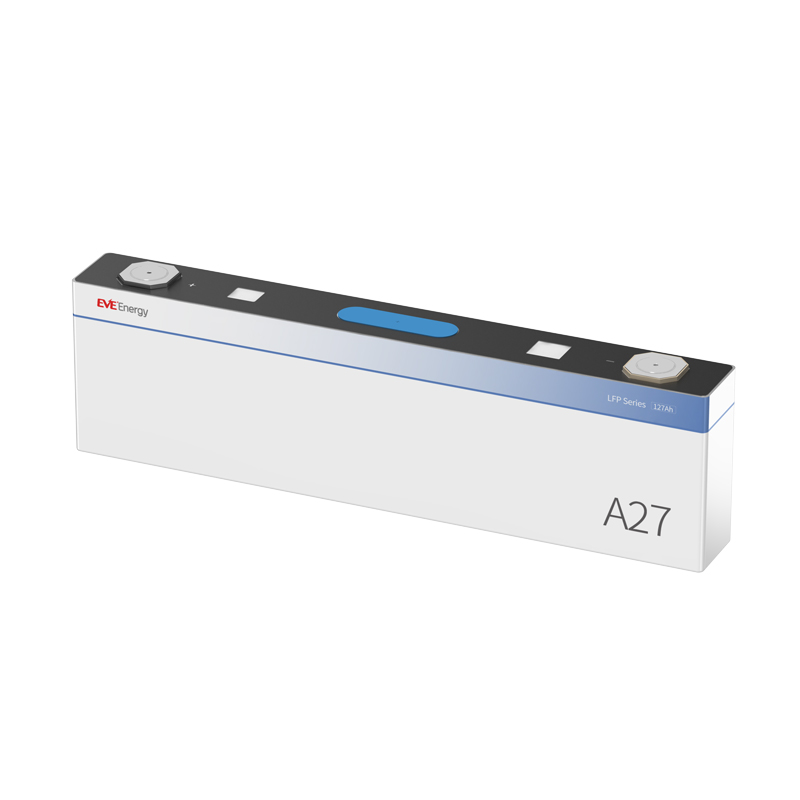

EVE Lithium A27 Prismatic Lithium Iron Phosphate Battery 3.22V 127.2Ah Power Battery Commercial Vehicle Engineering Vehicle
-
127.1 Nominal capacaity(Ah)
-
3.21 Nominal voltage(V)
-
2000 Nominal Cycles(times)
-
2220 ±30 Weight(g)
-
88.0*37.2*309.5 Size(mm)
-
0.33C/0.33C Charge/Discharge Multiplier
Application Scenario
Excavators,Heavy trucks,Forklifts,Passenger cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Automated Production
-
Full Life Cycle
-

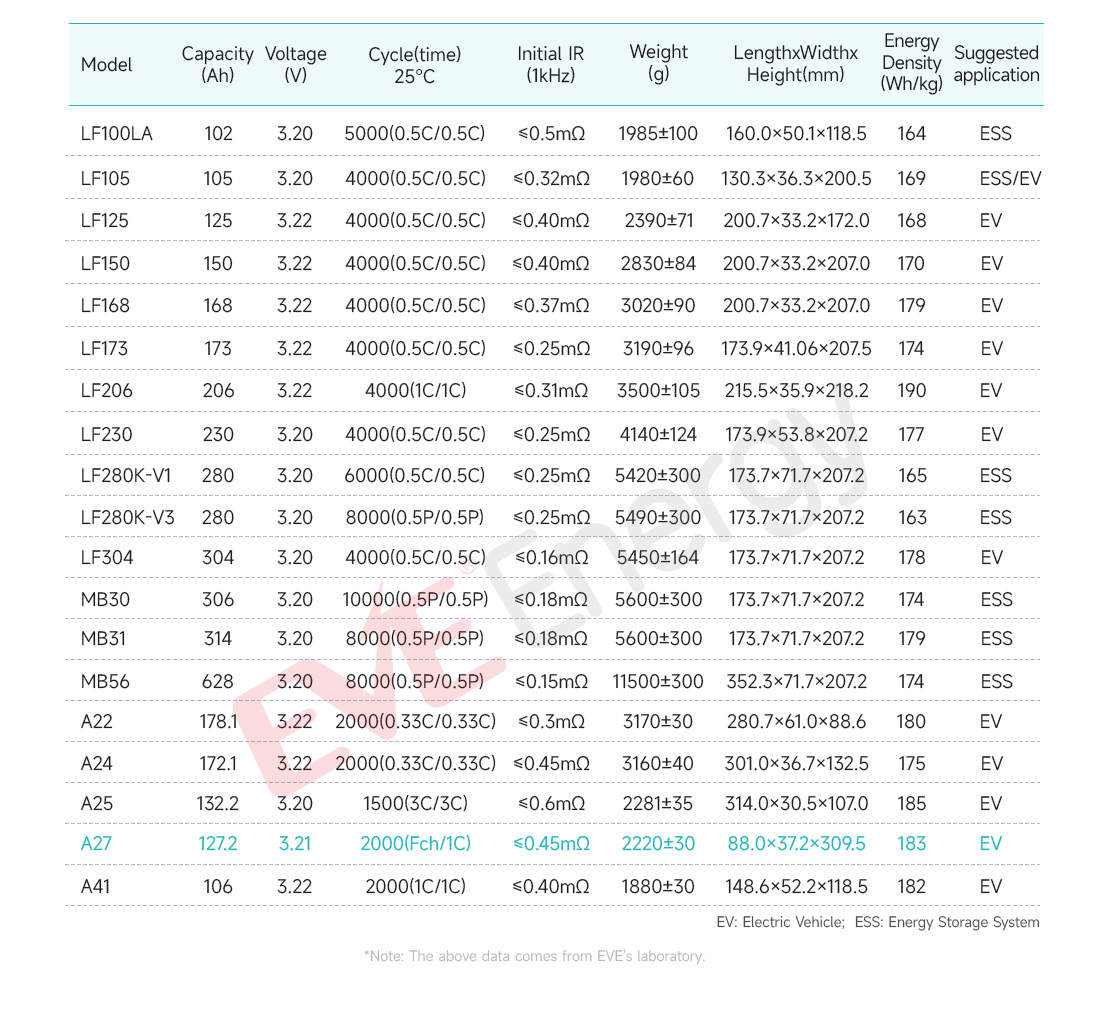

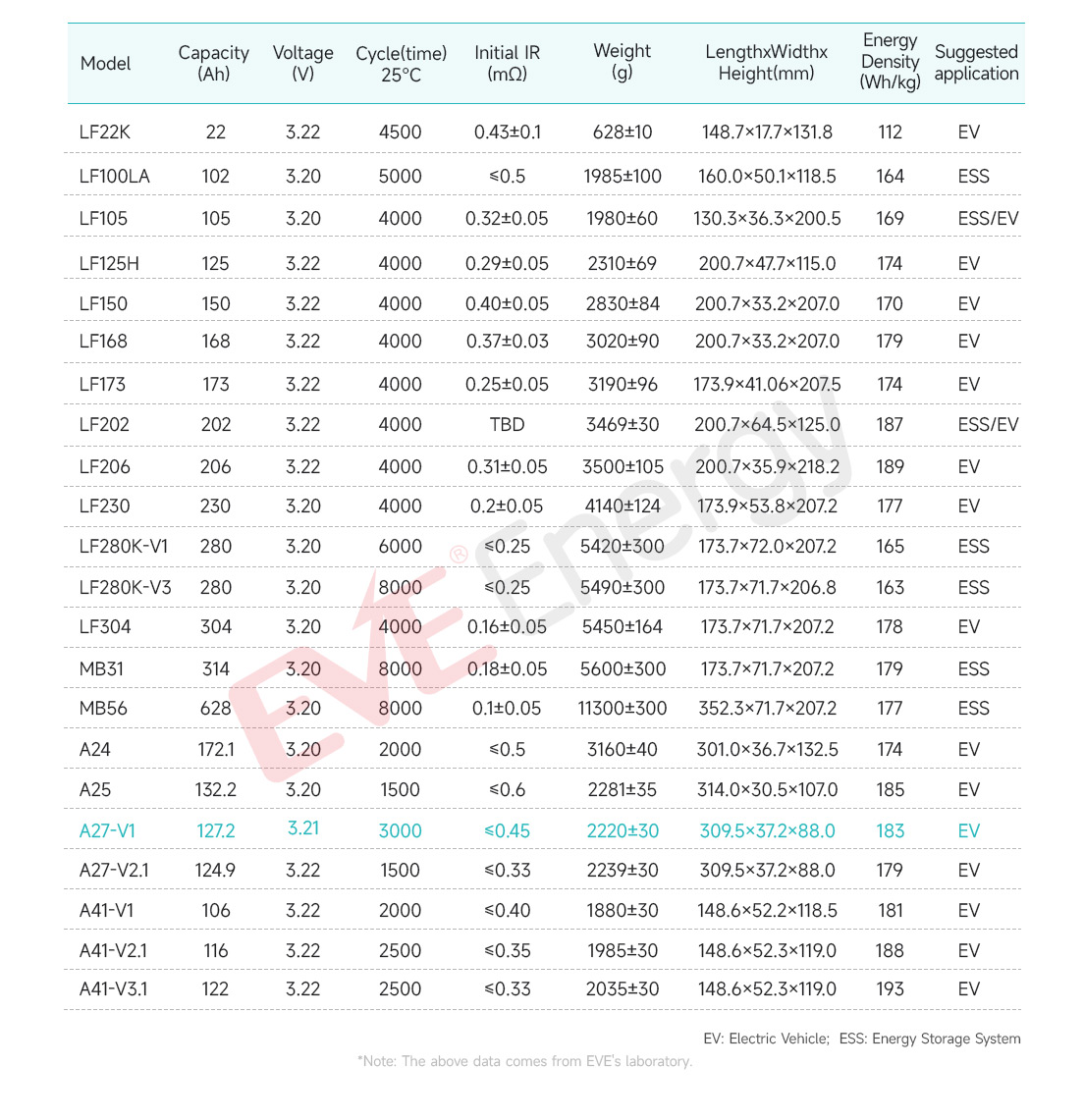

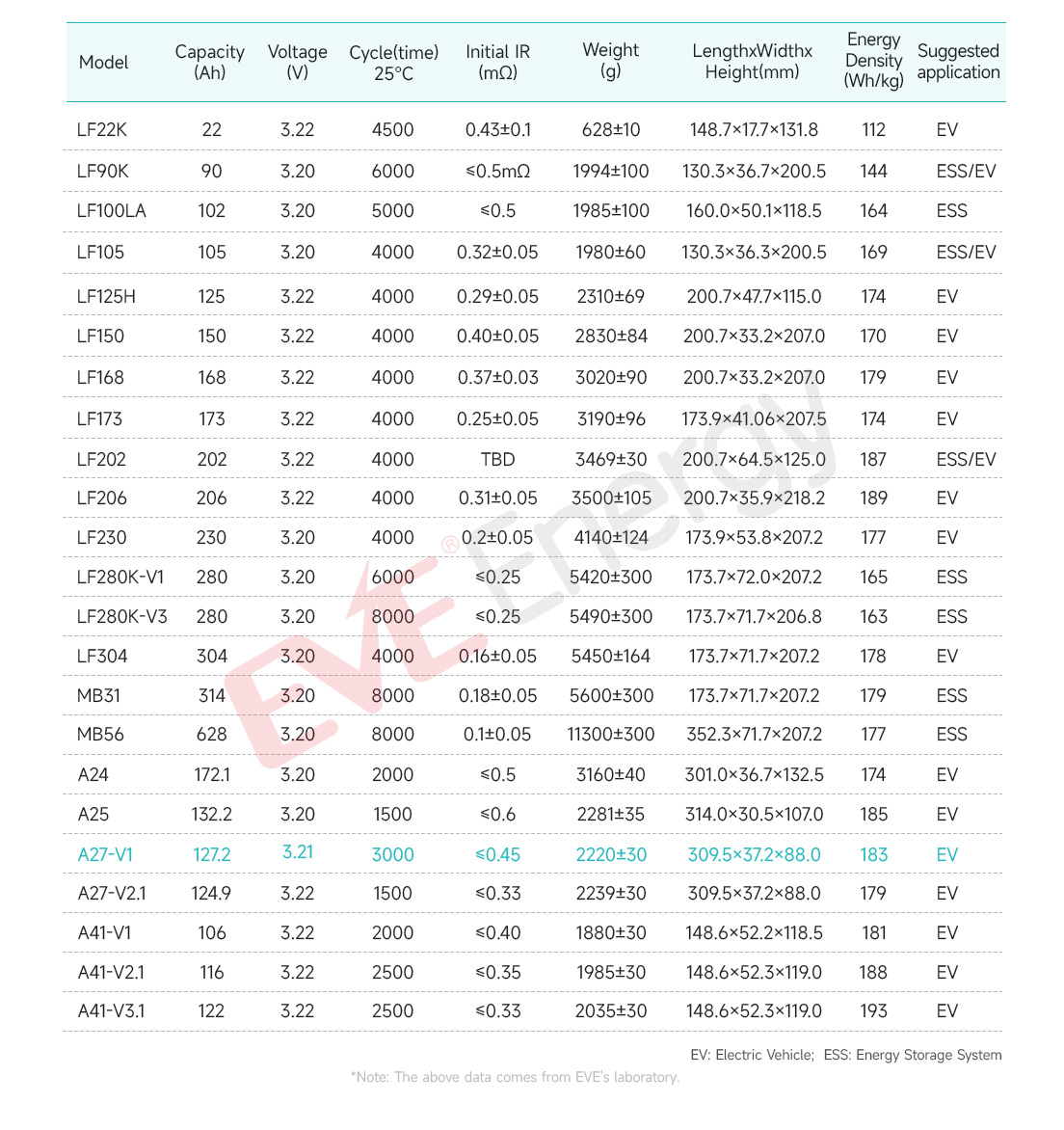

Product Selection
-
Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
Top 2 in China Commercial Vehicle Battery Market Share in 2024Entered into cooperation with global well-known enterprises to build a new platform for energy storage
-

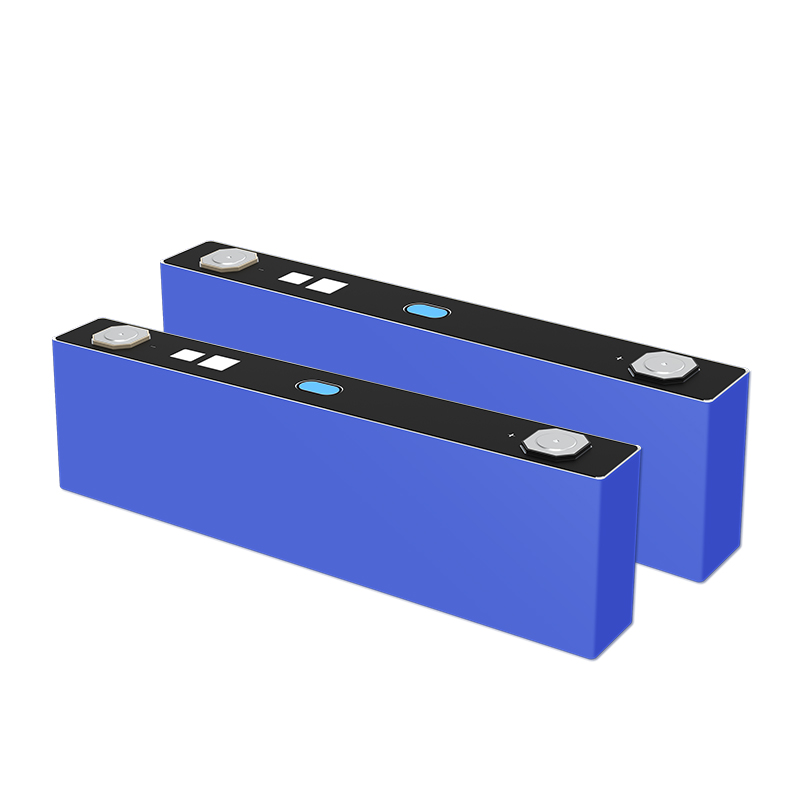

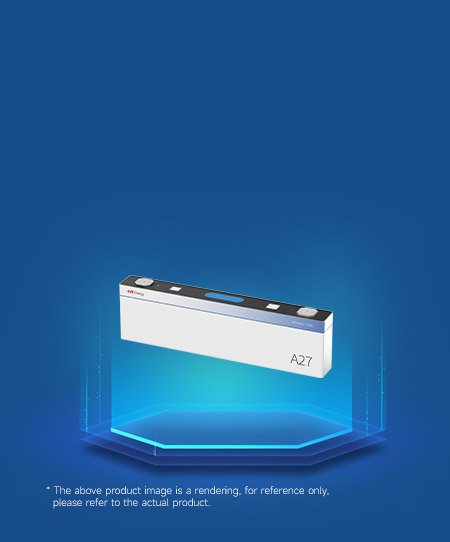

A27 127.2Ah 3.21VHigh Capacity Long Cycle
Up to 2000 cycles;80%SOHUnder the condition of(25℃ Fch/1C)
-

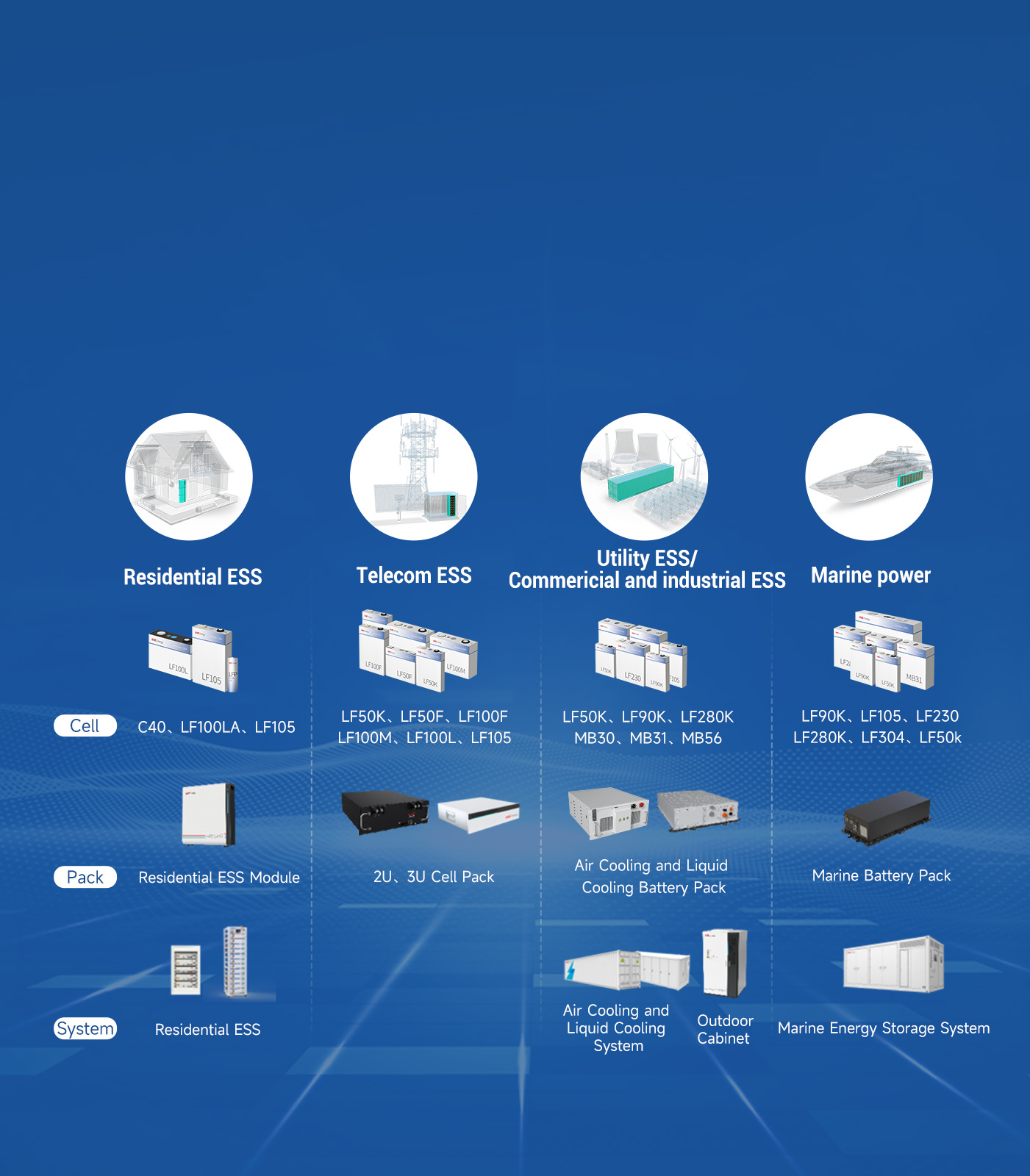

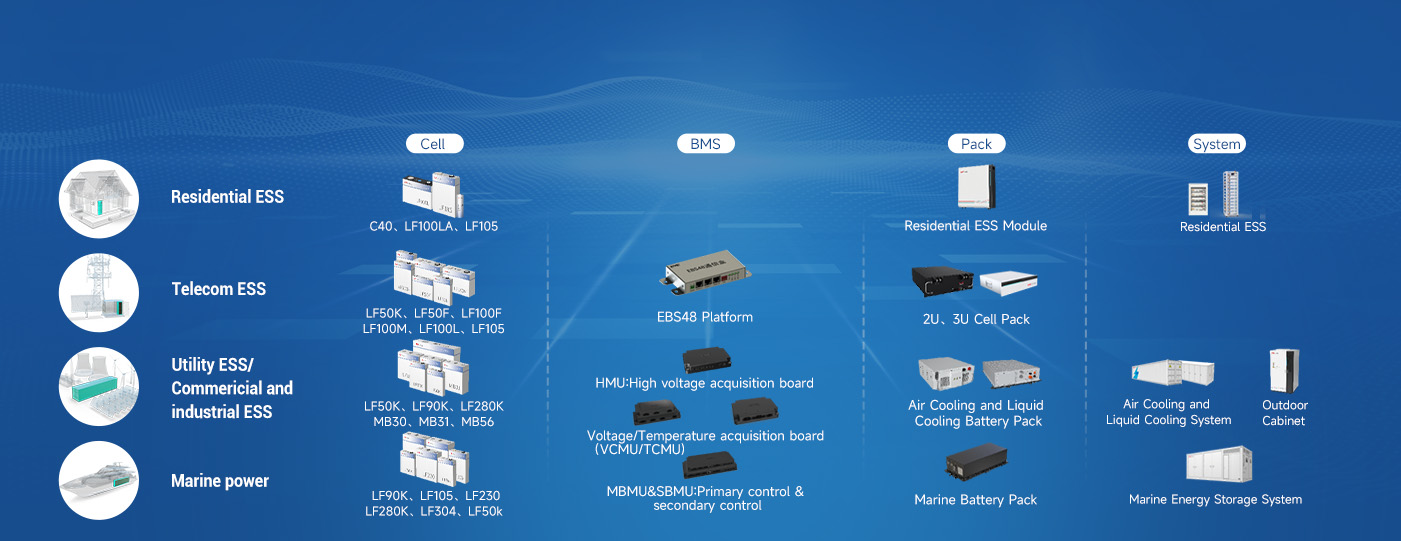

Standard platforms:Comprehensive solutions from cell to BESSApplication Area:Excavators,Heavy trucks,Forklifts,Passenger cars
-
High performanceLow internal resistance of battery cell,high discharge rate,stable charge/discharge,long cycle life

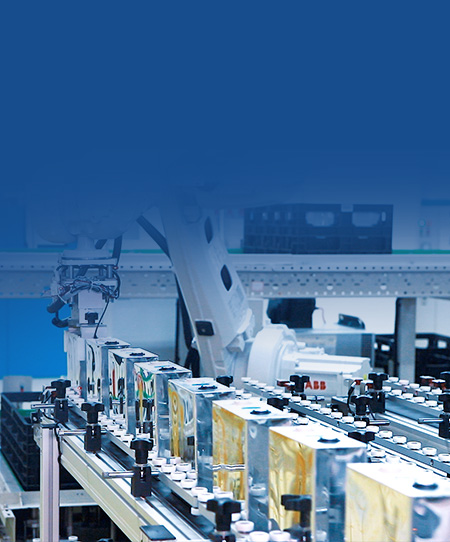

High consistencyIntelligent factory with highly automated production lines and high-precision equipment to ensure battery consistency
Safe and reliableOver 2856 cell manufacturing control points,with perfect design process and testing system
-
Application CasesPassenger Car Solutions,Commercial Vehicle Solutions,Engineered Power Solutions
-
Fully certifiedObtain GB,CE,IEC,UL,et al
Delivery From German WarehouseETD:1-3 WORKING DAYS丨ETA:5-7 WORKING DAYS
-

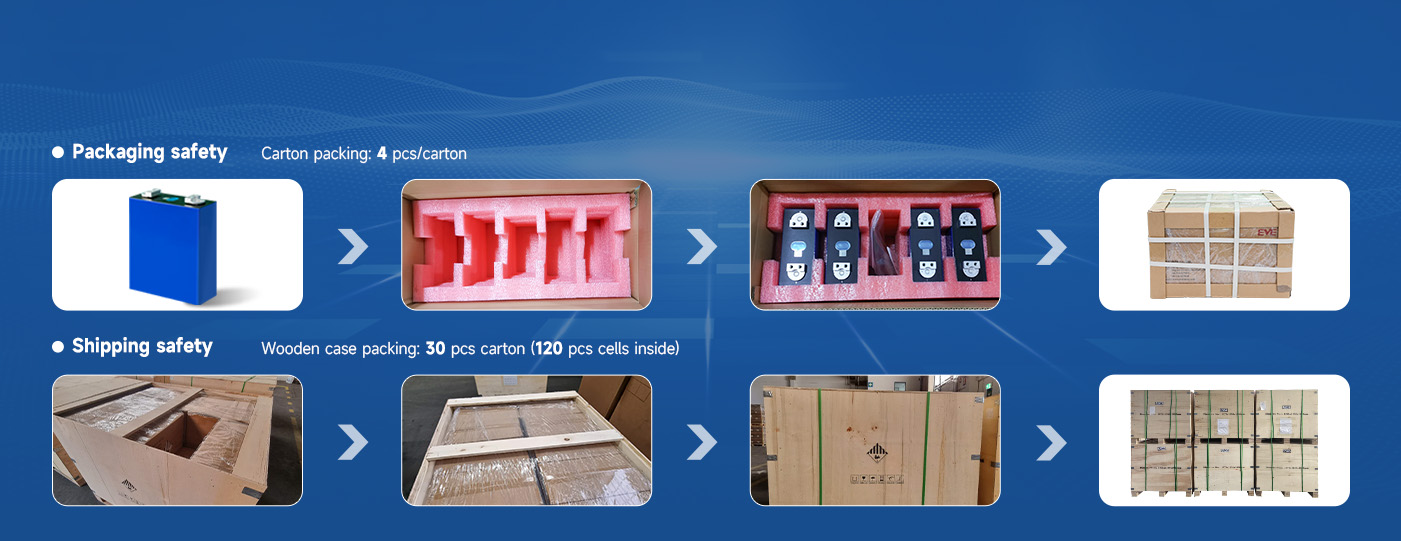

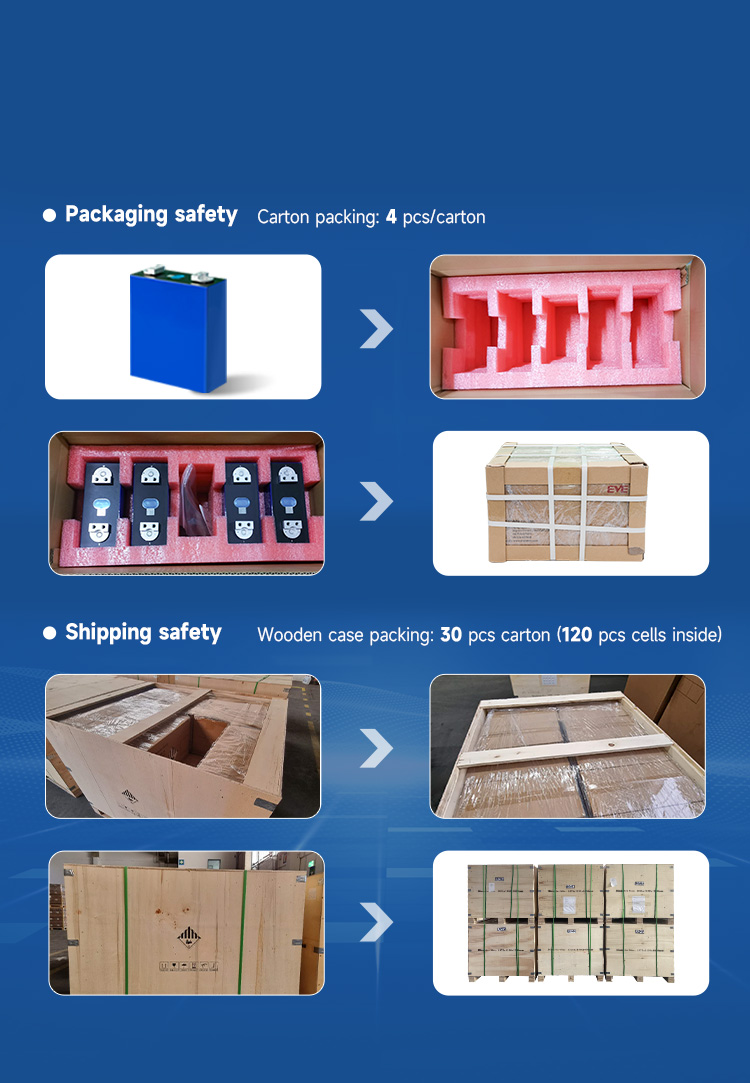

Packaging/Shipping SafetyCarton packing:4 pcs/carton丨Wooden case packing:30pcs carton(120pcs cells inside)
Specifications
| Model Number | A27 |
| Nominal Capacity | 127.2Ah |
| Nominal Voltage | 3.21V |
| Nominal Cycles(times) | 2000 |
| Width*Thickness*Height(mm) | 88.0*309.50*37.2 |
| Weight(g） | 2220 ±30g |
| Standard charge/Discharge current | 42.4A/42.4A |
| Charging Temperature | -20~55℃ |
| Discharging Temperature | -30~55℃ |
| Initial IR | ≤0. 45mΩ |

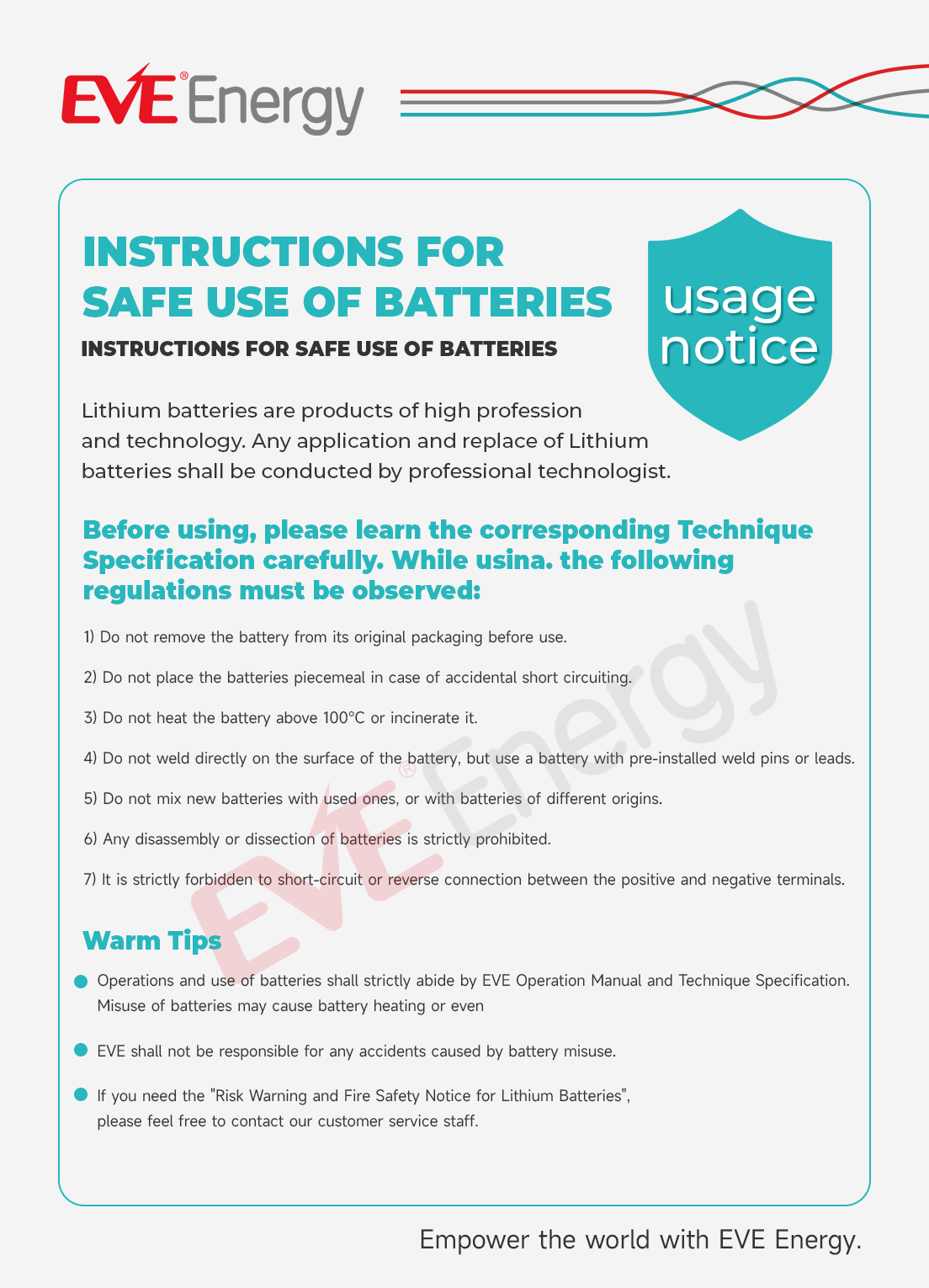

Safety Instructions
