A24HOT
EVE Lithium A24 Prismatic lithium iron phosphate battery 3.2V 172.1Ah power cell passenger car low-speed car
-
172.1 Nominal Capacity (Ah)
-
3.2 Nominal Voltage(V)
-
2000 Nominal Cycles(times)
-
3160±40 Weight(g)
-
301.0*36.7*132.5 Size(mm)
-
0.33C/0.33C Charge/Discharge Multiplier
Application Scenario
Logistics VAN Vehicles,Micro Trucks,Light Trucks,Commercial Vehicles
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Fast charging
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Full Life Cycle
-

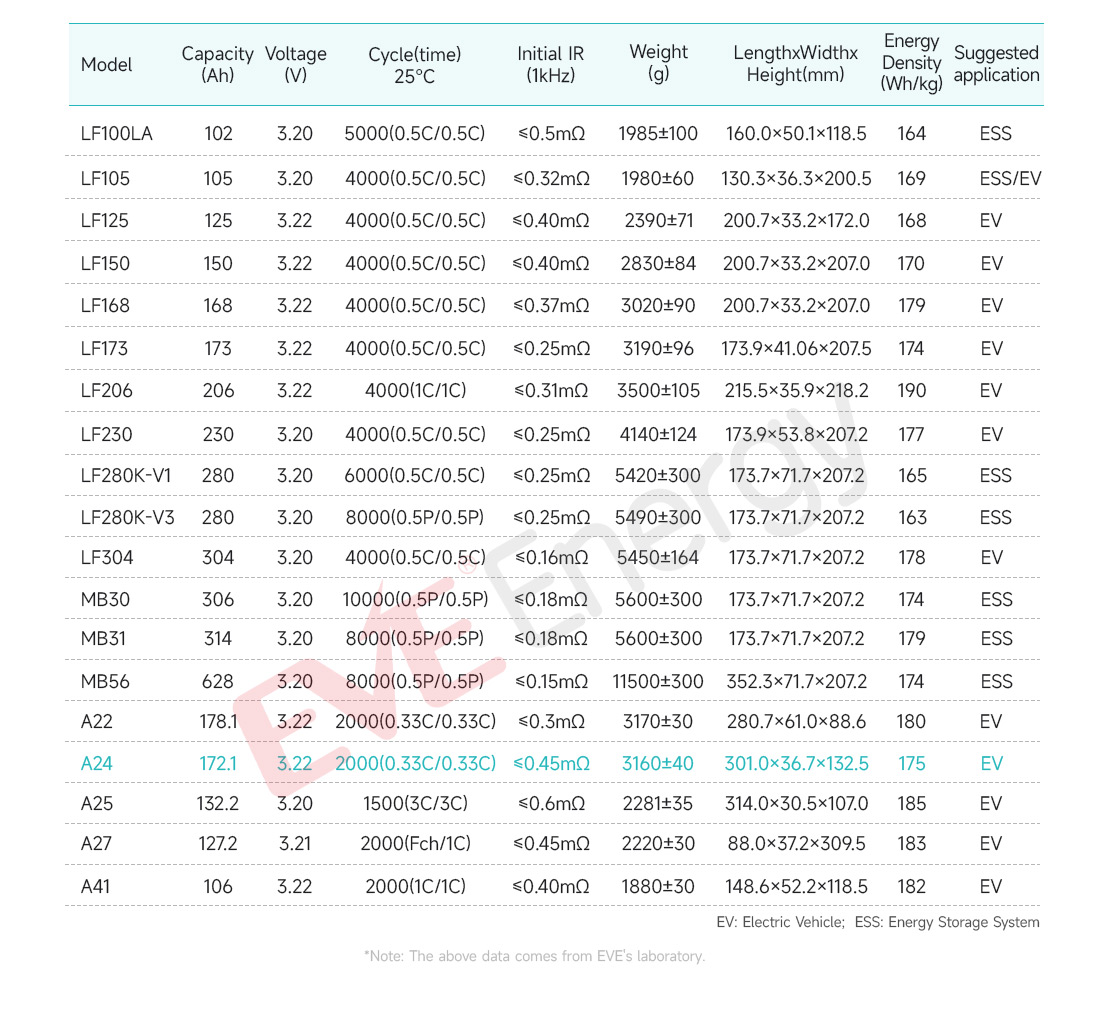

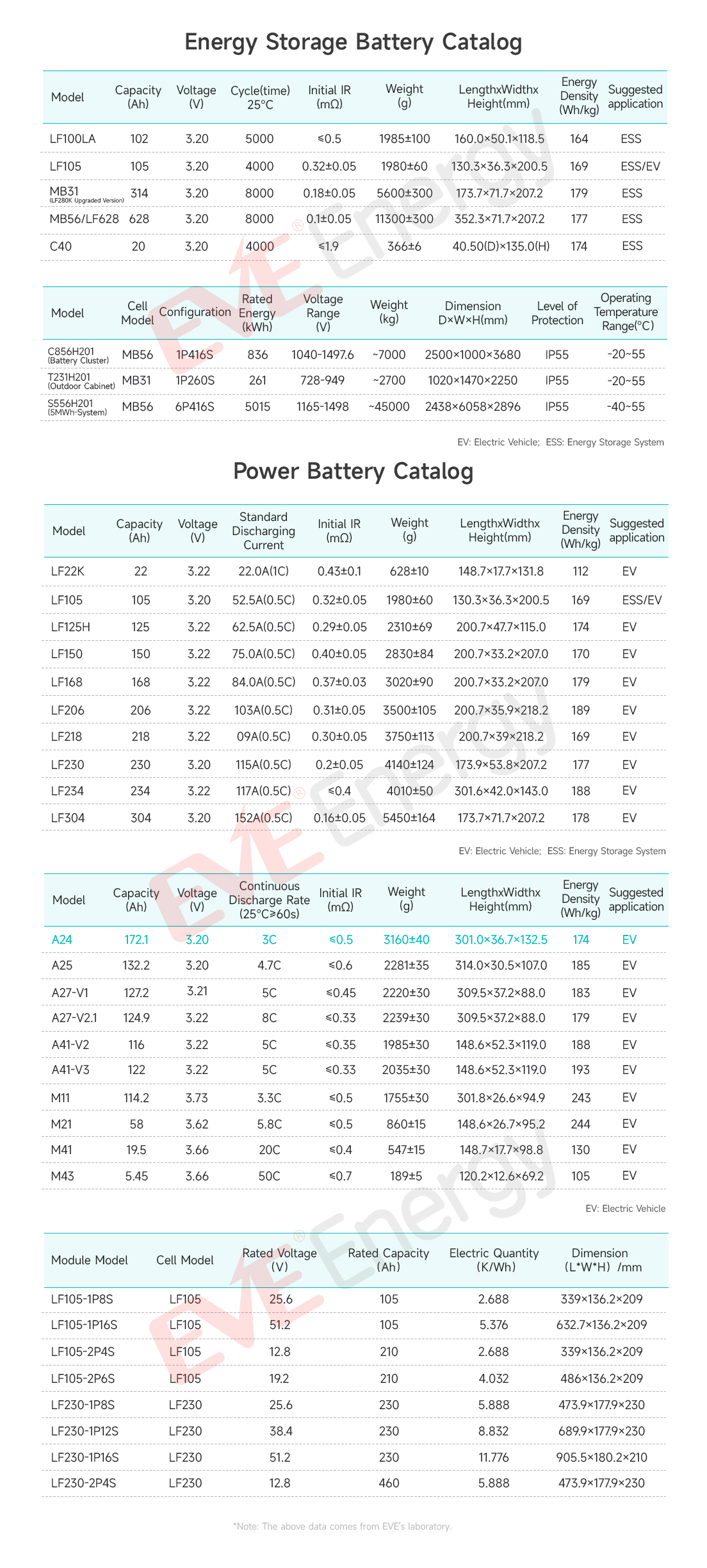

Product Selection
-

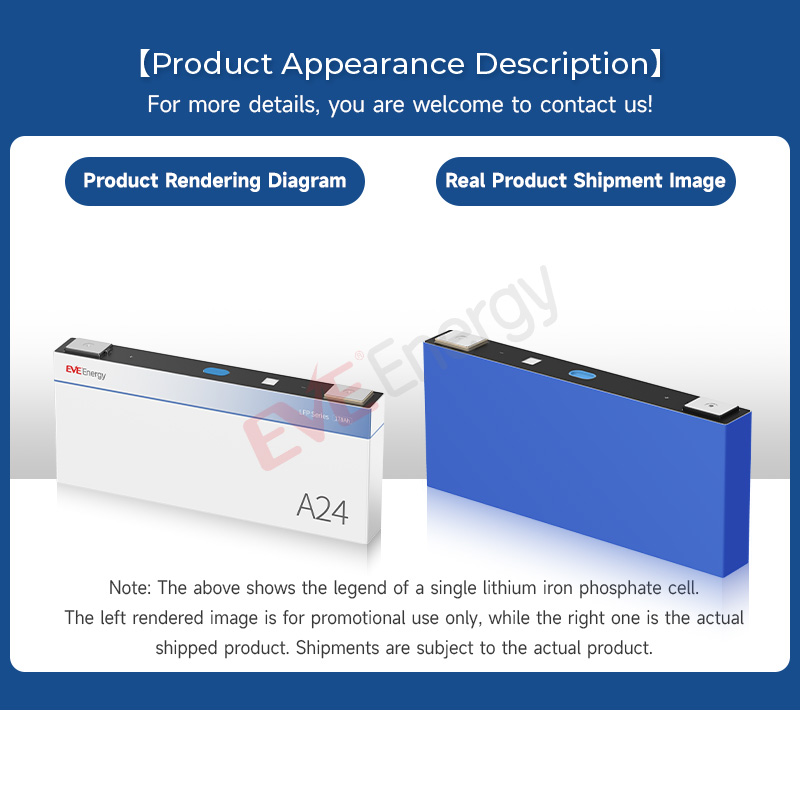

Product Introduction
-
Specifications
-
Safety Precautions
Product Selection
Product Introduction
-
A24 powers various energy applications172.1Ah LFP Battery, Ideal for Passenger Vehicles and Low-speed Vehicles Applications.
-
A24 172.1Ah 3.2VHigh Capacity Long Cycle
Up to 2000 Cycles; 80%SOHUnder the condition of(25℃ 0.33C/0.33C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-
Global Leading Battery Solution ProviderFor More Information,Please Contact Online Customer Service
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge/Discharge
Max Continuous Charge
Max Continuous Charge -
Application CasesHome ESS,Bus,Golf Cart,Passenger Vehicle,Pb to LiR Retrofit
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life
High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System
Specifications
| Model Number | A24 |
| Nominal Capacity | 172.1Ah |
| Nominal Voltage | 3.2V |
| Nominal Cycles(times) | 2000 |
| Initial IR | ≤0.5mΩ |
| Width*Thickness*Height(mm) | 132.5*301.0*36.7 |
| Weight(g） | 3160±40g |
| Standard charge/Discharge current | 55.7A/55.7A |
| Charging Temperature | -20~55℃ |
| Discharging Temperature | -30~55℃ |
Safety Instructions
Have questions?？Get help from a EVE expert
