A22

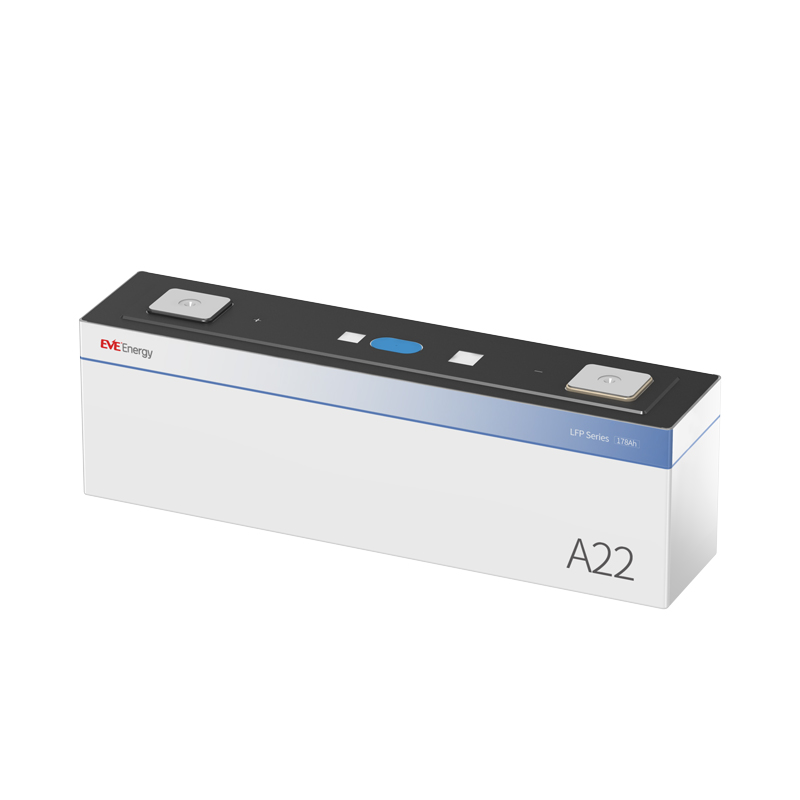

EVE Lithium Ion A22 Prismatic Lithium Iron Phosphate Battery 3.22V 178.1Ah Power Battery Commercial Vehicle Engineering Vehicle
-
178.1 Nominal capacaity(Ah)
-
3.22 Nominal voltage(V)
-
2000 Nominal Cycles(times)
-
3170±30 Weight(g)
-
61.0*281.1*88.6 Size(mm)
-
0.33C/0.33C Charge/Discharge Multiplier
Application Scenario
Excavators,Heavy trucks,Forklifts,Passenger cars
Product Certification
Origin of Shipment：
Chinese Factory Direct -
High Pulse
-
High Energy Density
-
High Discharge Rate
-
Long Service Life
-
High Security
-
Multi Application Scenario
-
Fully Certified
-
Full Life Cycle
-
Product Introduction
-
Product Selection
-
Specifications
-
Safety Precautions
Product Introduction
-
A22 powers various energy applications178.1Ah LFP Battery, Ideal for Commercial Vehicles and Engineering Vehicles Applications
-
A22 178.1Ah 3.22VHigh Capacity Long Cycle
Up to 2000 cycless;80%SOHUnder the condition of(25℃ 0.33C/0.33C)
-
Energy Storage Batteries & Power BatteriesGlobal Leading Battery Solution Provider
-

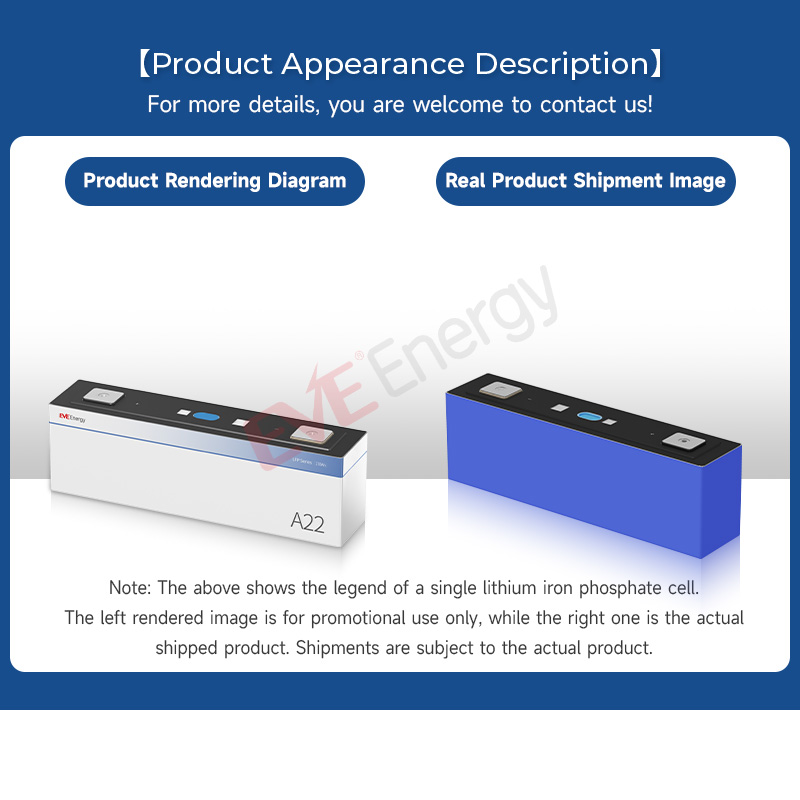

Product Appearance DescriptionFor More Information,Please Contact Online Customer Service
Safe and ReliableExplosion-Proof / No Leakage Passed Environmental System Certification
-
Standard Charge Rate
Standard Discharge Rate
Operating Temperature (°C) -
Application CasesHome ESS, Passenger Vehicle
-
High PerformanceLow Cell Resistance, High Discharge Rate, Stable Charge-Discharge, Long Cycle Life
High ConsistencyIntelligent Factory With Highly Automated Production Lines And High-Precision Equipment To Ensure Battery Consistency
Safe And ReliableOver 2856 Cell Manufacturing Control Points, With Perfect Design Process And Testing System

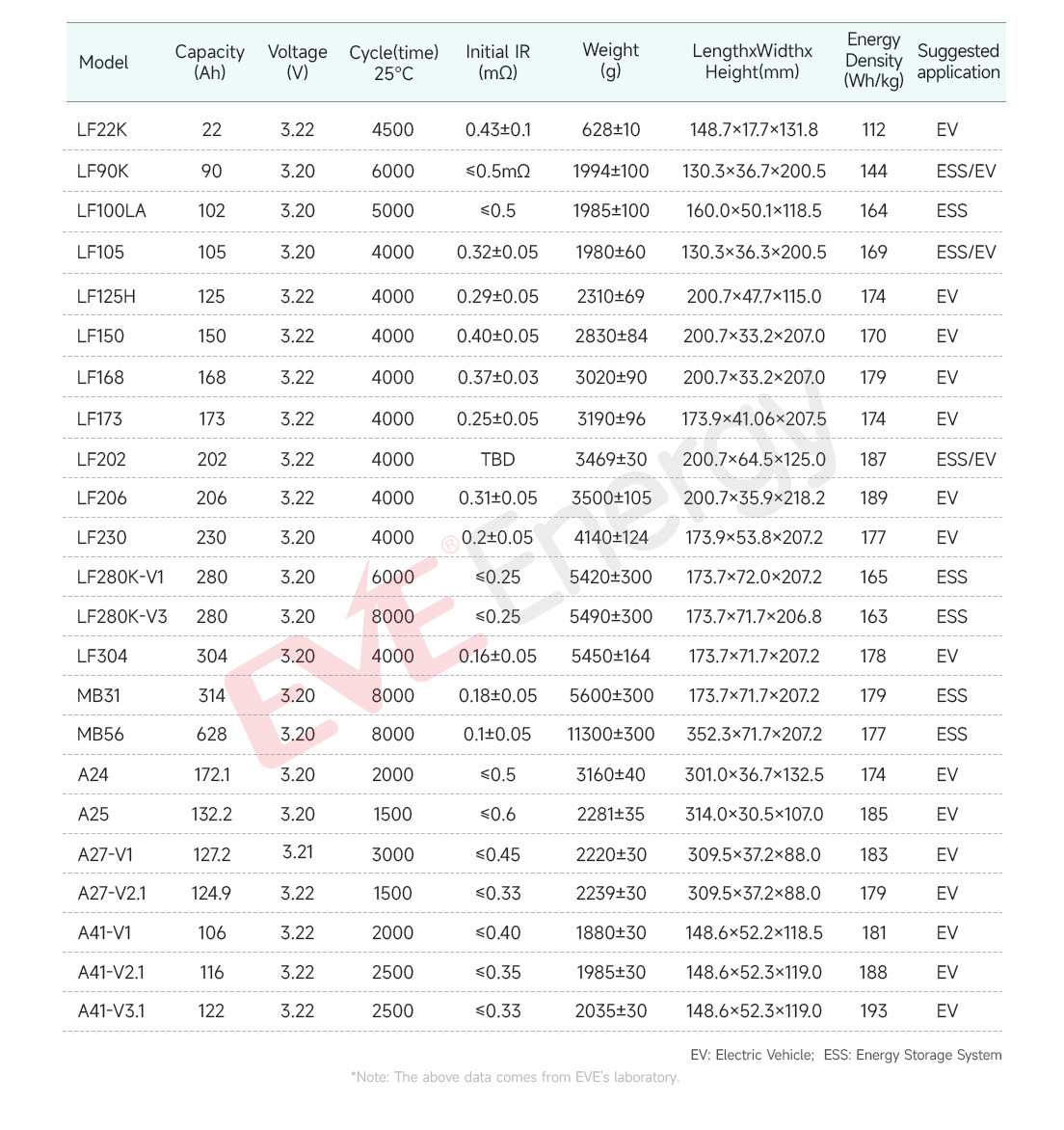

Product Selection
Specifications
| Model Number | A22 |
| Nominal Capacity | 178.1Ah |
| Nominal Voltage | 3.22V |
| Weight(g） | 3170±30g |
| Nominal Cycles(times) | 2000 |
| Charging Temperature | -20℃~55℃ |
| Discharging Temperature | -30℃~55℃ |
| Thickness*Width*Height(mm) | 61.0*281.1*88.6 |
| Initial IR | ≤0.3mΩ |
| Standard Charge/Discharge Ratio | 0.33C/0.33C |
Safety Instructions
Have questions?？Get help from a EVE expert
