ER14250+Flat Tab
EVE ER14250+Flat Tab Li-SOCl2 battery 3.6V 1200mAh Meter PLC industrial control equipment
-
3.6 Nominal Voltage（V）
-
1200 Nominal Capacity（mAh)
-
35 Maximum Continuous Current (mA)
-
50 Maximum pulse current (mA)
-
10 Weight (g)
-
-55~+85℃ Operating Temperature (°C)
Application Scenario
Smart electricity meter,smart water meter,smart heat meter,smart gas meter
Product Certification
Origin of Shipment：
Chinese Factory Direct -
Eco-friendly
-
Full life cycle
-
Wide temperature
-
Long lifespan
-
High pulse
-
Low self-discharge rate
-
High security
-
High capacity
-
Product Introduction
-
Product Selection
-
Specifications
-
Safety Precautions
Product Introduction
-
World-leading, Sales and export volume ranks No.1 for 8yrsNational Manufacturing Champion Products
-
ER14250 3.6V 1200Ahhigh-capacity,long lifespan

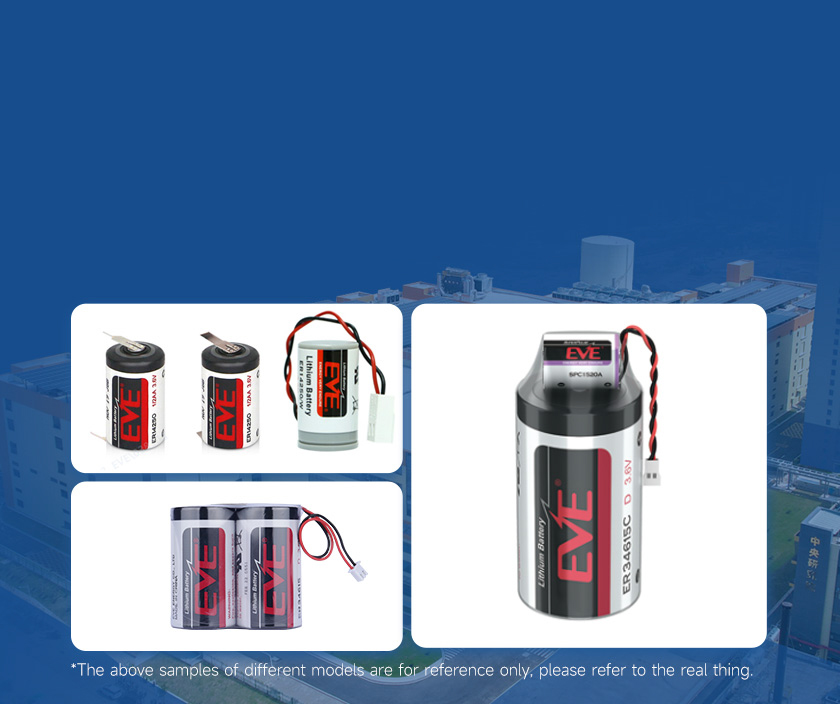

Custom processing and sample design available upon requestCustomize battery cells with series/parallel configurations,solder tabs,or plug leads
-
Provide integrated solutions for smart meters such as water meters,electricity meters,gas meters,heat meters,sensors,etc20 years + long life,-55℃~85℃ ultra-wide temperature range,low self-discharge rate
-

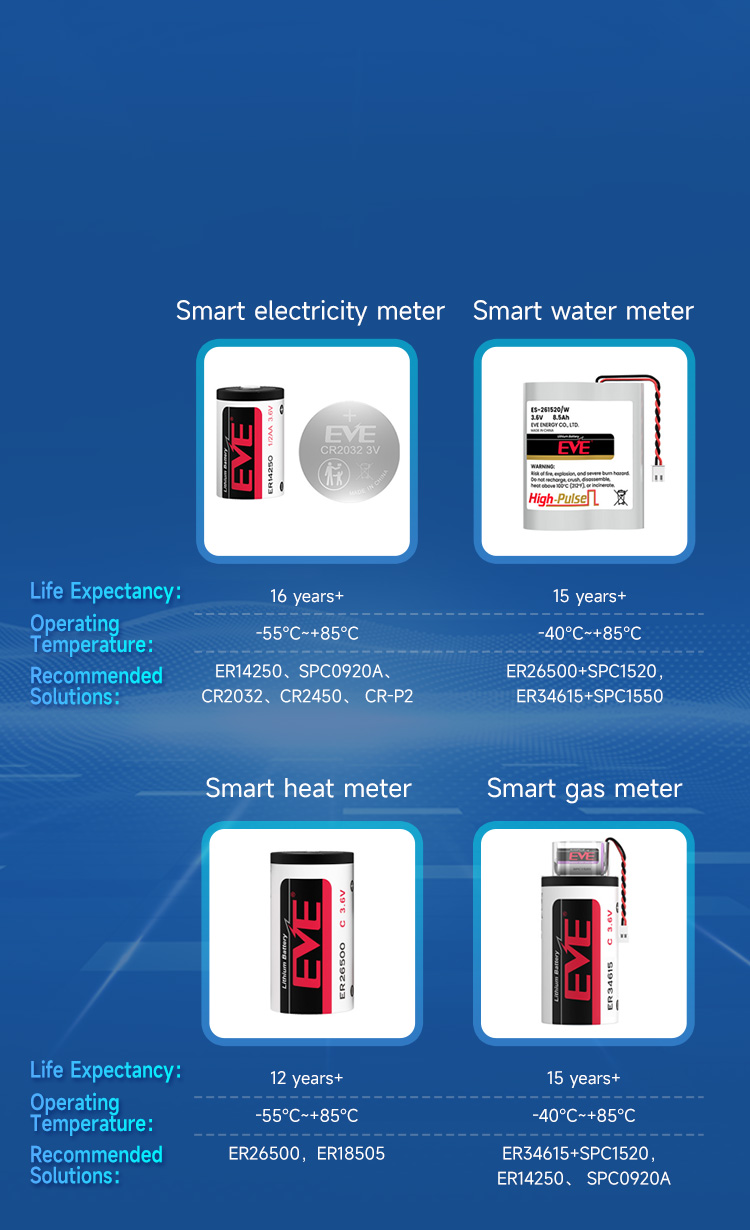

Recommended SolutionsSmart Electricity Meter,Smart Water Meter,Smart Heat Meter,Smart Gas Meter,Sensor
-

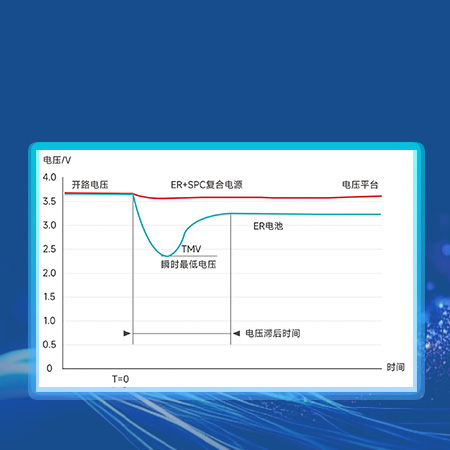

Advantage of ER+SPC solutions: no voltage hysteresis
-
Long lifespanExtremely long reliability life expectancy
High Stability VoltageNominal voltage of 3.6V with excellent operational voltage stability
Low self-discharge rateAt 20°C ambient temperature, the annual self-discharge rate is ≤1%
Product Selection
Specifications
| Model | ER14250平角 |
| Nominal Capacity | 1200mAh |
| Customized processing | Yes |
| Nominal Voltage | 3.6 V |
| Charging Current | Not rechargeable |
| Size | 14.5x25.4 mm |
| Application | Smart Electricity Meter, Smart Water Meter, Smart Heat Meter, Smart Gas Meter, Sensor |
Safety Instructions
